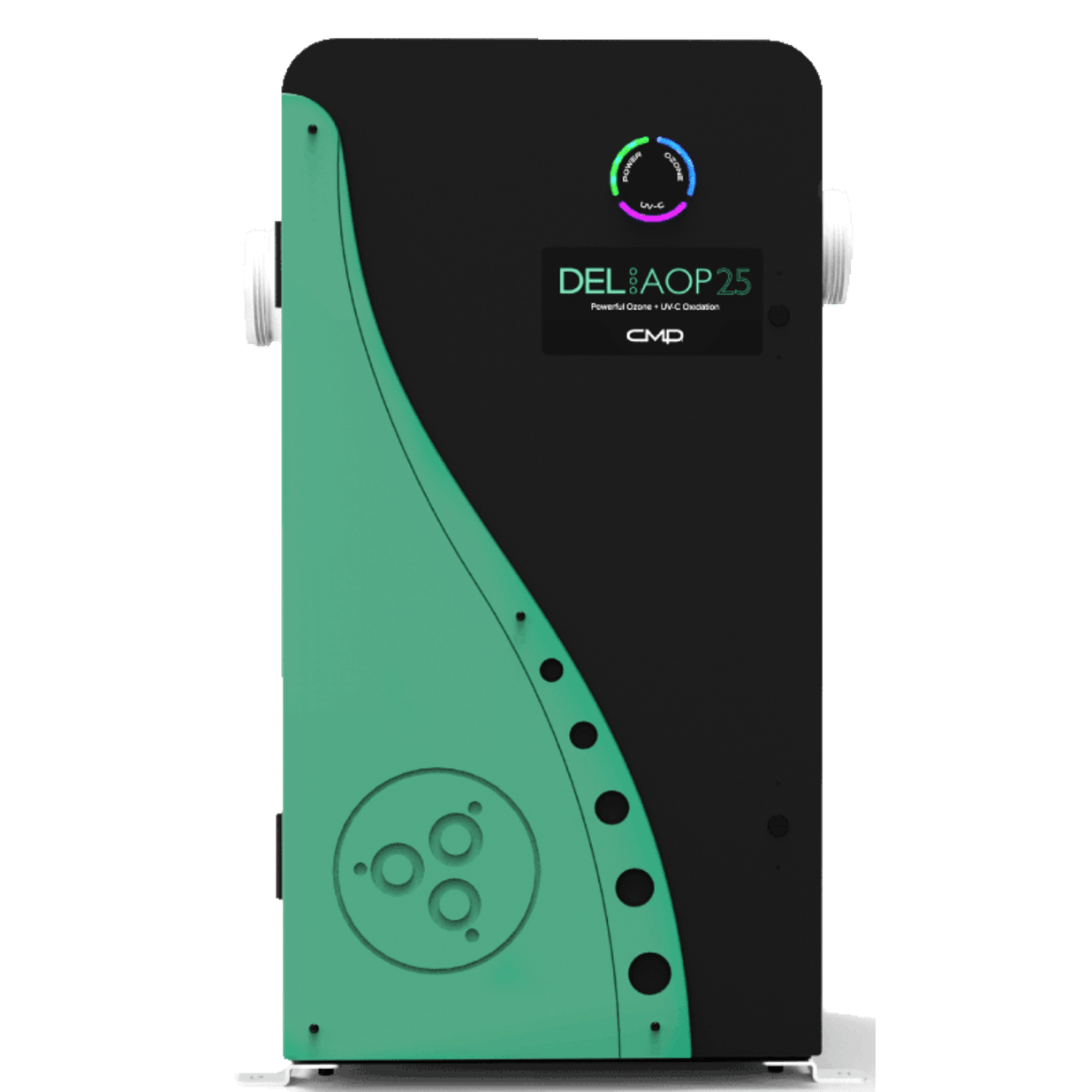

CMP Next Gen DEL AOP 25 Ozone + UV-C Sanitation for Residential Pools, 25,000 Gallons, 120V/240V
CMP 53000-025-000
EXPERIENCE THE DIFFERENCE OF AOP
Safer Water - AOP destroys viruses & bacteria like Giardia, E. Coli, and Cryptosporidium
Fewer Chemicals - Powerful oxidation reduces chlorine required to maintain a safe residual level in the pool
Crystal Clear - Contaminants are destroyed and filtration is enhanced resulting in pure polished water
No Chloramines - By breaking apart chloramines, chlorine smell, itching, and irritation are prevented
Product Overview
VOLTAGE: 110/240 VAC, 50/60 Hz, 0.7 Amps
OZONE CELLS: One APG2 Corona Discharge Cell, Ozone Output: 215mg/hr
PLUMBING: Inlet and Outlet 2” PVC Unions
OPTIMAL FLOW RATE: 30 GPM
MOUNTING: Floor or Wall Mount
ENCLOSURE: CSA/NEMA 3 | Indoor/Outdoor Installation
DIMENSIONS: 2 4 1/4″ H × 12 1/2″ W × 13 3/8″ D
WEIGHT: Dry Unit: 40lbs | Shipping: 55lbs
UV-C LAMP: Low Pressure | 16,000 Hr | High Output UV-C Germicidal
ULTRAVIOLET OUTPUT: 254nm
CERTIFICATIONS: NSF/ANSI Standard 50 Supplemental Sanitizer, cUL Listed, UL Listed.
Features
Treats up to 25,000 gallons
Full flow generates hydroxyls in the primary pool circulation
Sensors actively monitor UV-C and ozone sub-systems
Single cabinet serviceable design
Easy-access wiring path and terminal block
APG2 ozone cells: higher output corona discharge, superior heat performance, durable design
High flow UV-C chamber
Variable speed pump compatible
Built-in drain for winterization
Specs & Details
| Product Name | Next Gen DEL AOP 25 Ozone + UV-C Sanitation for Residential Pools, 25,000 Gallons, 120V/240V |
| Manufacturer Part Number | 53000-025-000 |
| Sku | CTM-45-4031 |
| UPC | 849640035566 |
- DEL AOP 25 & 40 Next Gen Instruction Manual|
