Century VGreen Evo Variable Speed 2.25 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame

Century EVQ225

Write a Review Ask a question
$699.90
$100.0 Saved! (14.3%)

Starting at $ /mo with . Prequalify now

In Stock
Rewards
Earn 599 points | Join or Sign In
Add product protection offered by
Quick Overview

The Century VGreen Evo Variable Speed Pool Pump Motor is a powerful and efficient option for your pool's filtration system. With a maximum horsepower of 2.25 and minimum of 1.50, this motor is capable of providing the right amount of power for your pool's needs. Its variable speed feature allows for customizable flow rates to ensure energy efficiency and lower operational costs. The TEFC (Totally Enclosed Fan Cooled) design ensures durability and waterproof protection, and the 48Y frame size makes it easy to install. This pump motor operates on 230/115 V, 1 Ph, and 60 Hz. Choose the Century VGreen Evo for an energy-efficient and effective pool pumping solution.

Key Features:

  • Variable Speed Operation (600-3450 RPM)

  • Simplified Single Button User Interface

  • Dual Voltage 230/115 VAC, with Automatic Voltage Detection

  • Freeze Protection

  • Easy to Install

  • TEFC Design

  • Class F Insulation

  • 50°C Ambient

  • 50/60 Hz

  • VGreen Evo

Questions? Contact our pool professionals:
Frequently Purchased Together
Product Overview

Why Variable Speed?

The new VGreen Evo motor is driven by advanced variable speed technology to power the most energy efficient and compliant pool pumps in the industry, helping our customers meet or exceed the latest Department of Energy (DOE) regulations. Single-speed pumps typically run at high RPM’s around the clock, over-circulating water and wasting precious energy and money. A variable speed pump motor allows users to circulate water at the minimum turnover rate for water quality at a lower RPM, thereby greatly reducing the energy needed to run the pump. The slower circulation rates of a variable speed pump equate to a noticeably quieter motor. Operating at lower speeds also lowers the temperature of the motor, extending the life of the motor. Upgrading to a variable speed motor will lower the cost of pool ownership through energy savings without replacing the pump. These motors run cooler, quieter and last longer. Owning a pool with a variable speed motor is more affordable and better for the environment.

Replacement Versatility

Available in both square flange and C-Face configurations, the highly versatile VGreen Evo motor can be utilized in pool pump applications up to 2.25 total horsepower. Installation on most pumps, regardless of manufacturer, is as simple as replacing a standard single-speed or two-speed motor. There is no additional wiring or plumbing required, thanks to the VGreen Evo motor’s integrated user interface.

Replacement for:

  • Pentair Whisperflo

  • Pentair Max-E-Pro

  • Pentair SuperFlo

  • Pentair SuperMax

  • Hayward Super Pump

  • Hayward MaxFlo

  • Jandy FloPro

  • Jandy PlusHP

Compatible Automation Systems:

  • Pentair EasyTouch

  • Pentair Intellitouch

  • Pentair Intelliconnect

  • Hayward Omnilogic

  • Hayward ProLogic

  • Hayward OmniPL

  • Hayward EcoStar

  • Jandy iQPump 1.0

  • Jandy Aqualink TCX

  • Jandy iAqualink 3.1

  • Aqualink RS

Simplified User Interface

The VGreen Evo motor features a simplified user interface to allow for programming flexibility with the push of a single button. The motor offers various pre-programmed variable speed operating schedules, allowing users to best optimize their motor to minimize energy consumption and lower the overall cost of pool ownership, all while maintaining the proper pool environment.

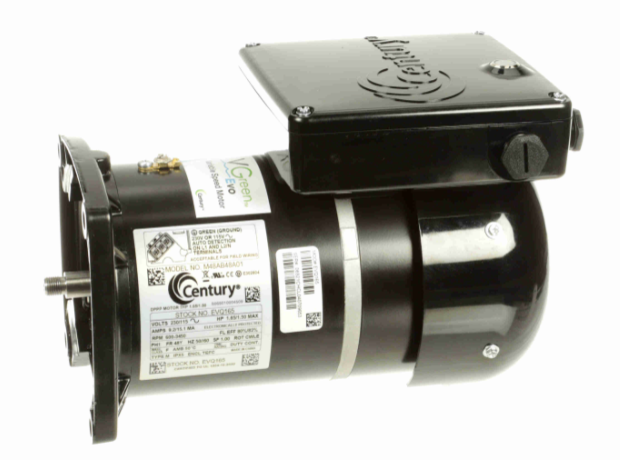

Side view

Nameplate Specs:

  • Phase: 1

  • Output HP: 2.25/1.50 Hp

  • Output KW: 1.7 kW

  • Voltage: 230/115 V

  • Speed: 600-3450 rpm

  • Service Factor: 1

  • Frame: 48Y

  • Enclosure: Totally Enclosed Fan Cooled

  • Thermal Protection: Automatic

  • Ambient Temperature: 50 °C

  • Frequency: 60 Hz

  • Current: 13.5/17.4 MAX A

  • Duty: Continuous

  • Insulation Class: F

  • UL: Recognized

  • CSA: N

  • CE: Y

  • Number of Speeds: VAR

Technical Specs:

  • Rotation: Clockwise Lead End

  • Mounting: Round

  • Drive End Bearing: Ball

  • Opp Drive End Bearing: Ball

  • Frame Material: Rolled Steel

  • Shaft Type: Threaded

  • Frame Length: 8.68"

  • Shaft Diameter: 0.625"

  • Shaft Extension: 1/2-20" THREAD

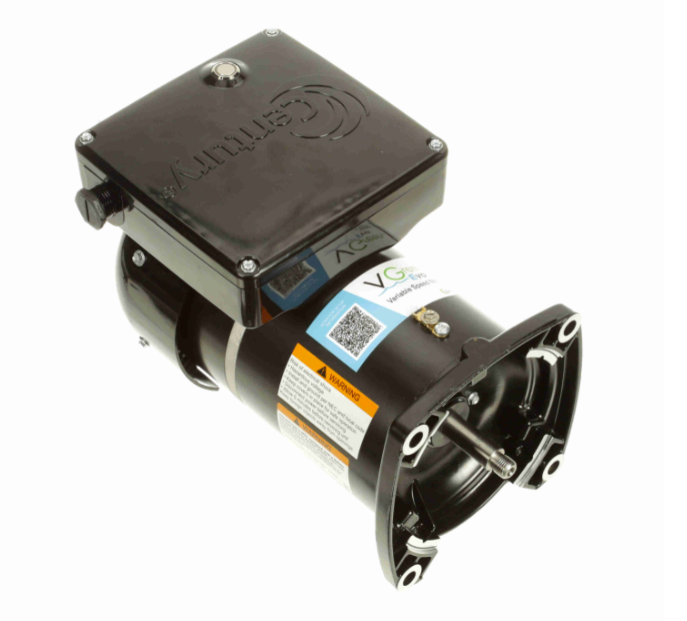

Top view

California Title 20

This motor conforms to CEC (California Energy Commission) pool pump replacement motor regulations in California. The CEC sets standards for energy efficiency and performance for pool pump motors sold and installed in the state. By meeting these regulations, this motor is designed to provide efficient and reliable operation, while also reducing energy consumption and costs. Additionally, the CEC compliance of this motor ensures that it meets strict environmental standards and helps to promote sustainability. If you're looking for a pool pump motor that meets California's CEC regulations, this motor is a great choice for a replacement motor for California residents.

Specs & Details

Product Name VGreen Evo Variable Speed 2.25 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame
Manufacturer Part Number EVQ225
Sku MGT-60-4052
UPC 786674077219
Manufacturer
Century
Century
75%% of 100
Discover Century, a Regal Brand, your ultimate destination for motors tailored to meet every leisure water application imaginable! Our extensive range ... Show More Discover Century, a Regal Brand, your ultimate destination for motors tailored to meet every leisure water application imaginable! Our extensive range includes NEMA 48 and 56 frame motors designed specifically for spas, in-ground pools, above ground pools, pool cleaners, and jetted tubs, catering to all your leisure water pump requirements. Century is your go-to source for cutting-edge electric pump motor innovations. Show Less
Downloads
  • EVQ225 Outline
    |
  • Century VGreen Evo Users Guide
    |
