Intermatic 24-Hour 7-Day Electronic Wifi Time Control, 3-Circuit, Type 3R Plastic Enclosure
Intermatic PE733P

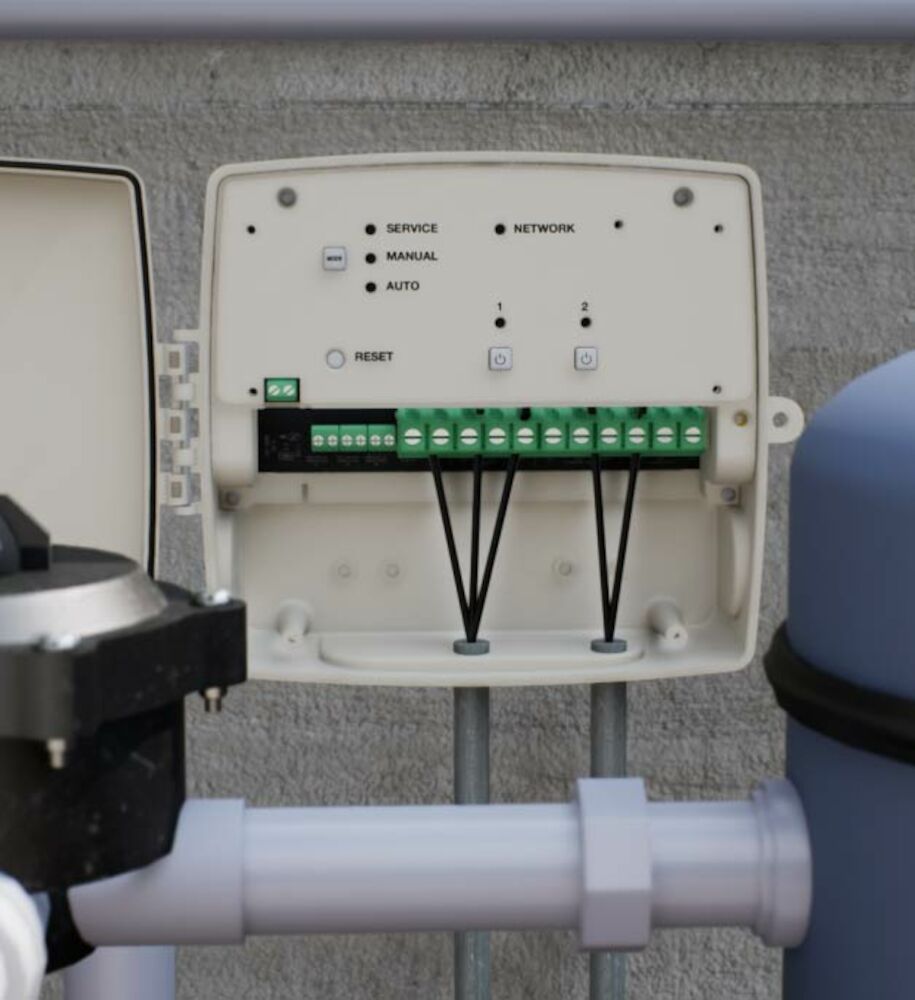

This general purpose 24-hour, 7-day timer control is capable of automatically switching loads according to a preset daily schedule. Simply wire to various downstream hard-wired pool equipment and turn these loads On and Off via schedule or manually through the Intermatic Connect Mobile App or Voice command.
Product Overview
Schedule automatic ON/OFF operation of connected Pool equipment and make changes anywhere to suit your scheduled needs.
Controls pool pumps, pool and spa lighting, landscape lighting, pool sanitation, and other auxiliary equipment.
Up to 96 ON/OFF events per day.

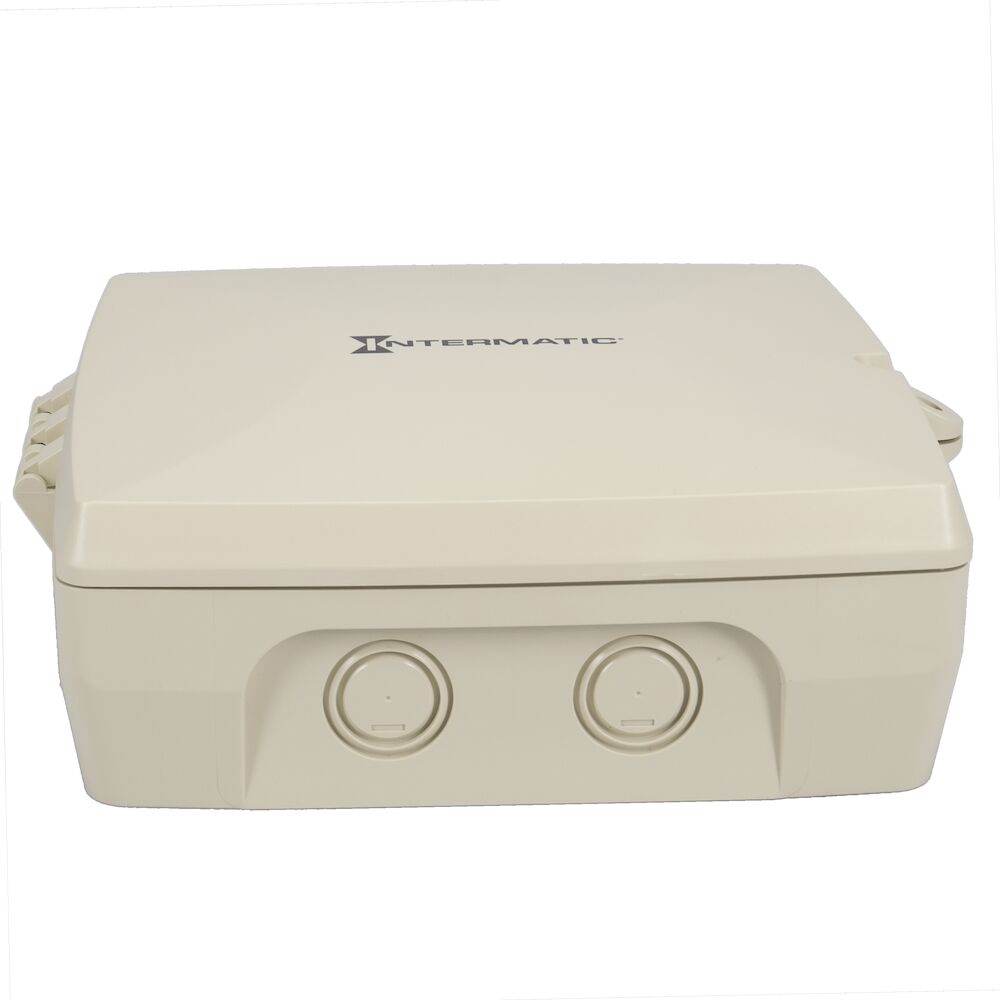

Simple retrofit - knockout locations and sizes designed equivalently to Intermatic legacy time switch enclosures.
Auto voltage - automatic input voltage selection from 120 VAC to 277 VAC, 50/60 Hz.
Configurable relay outputs for multiple switching options (SPDT or DPDT).
Service mode - with optional timed-stop or timed-run feature. Locks external users out from controlling connected loads remotely.

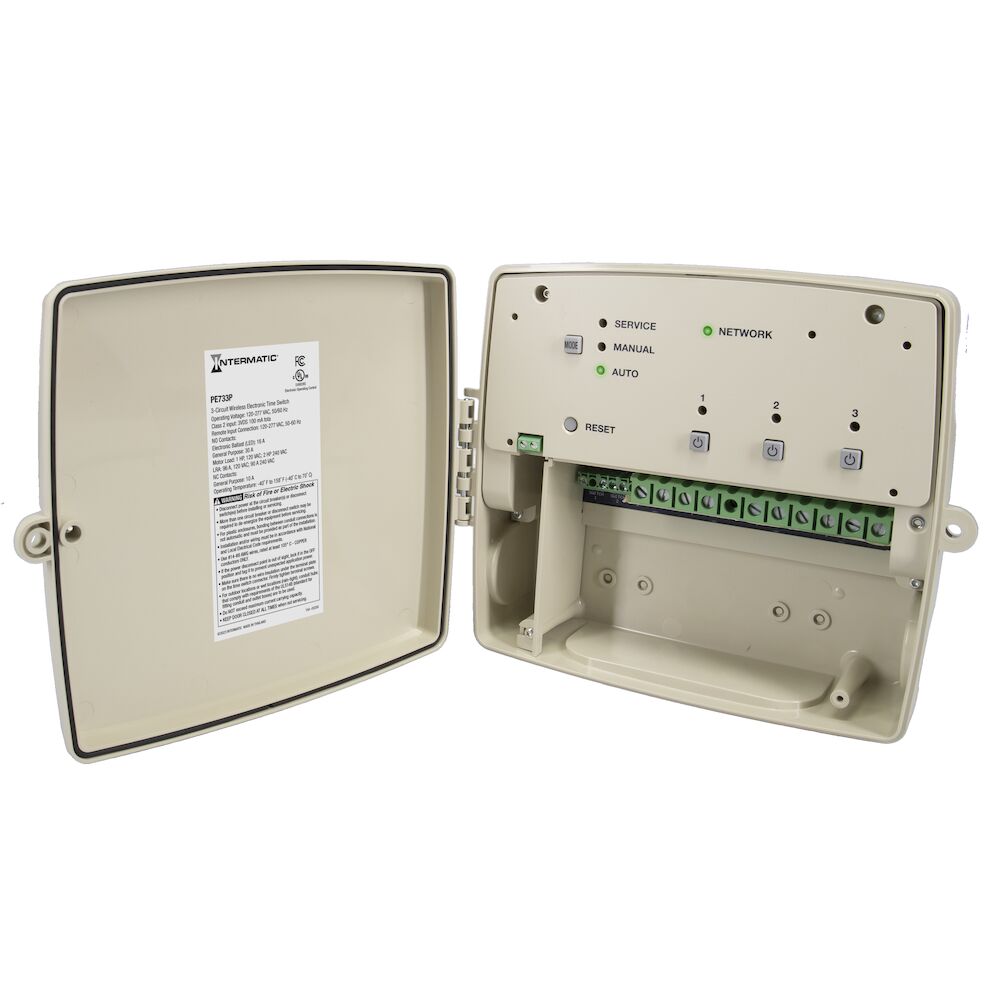

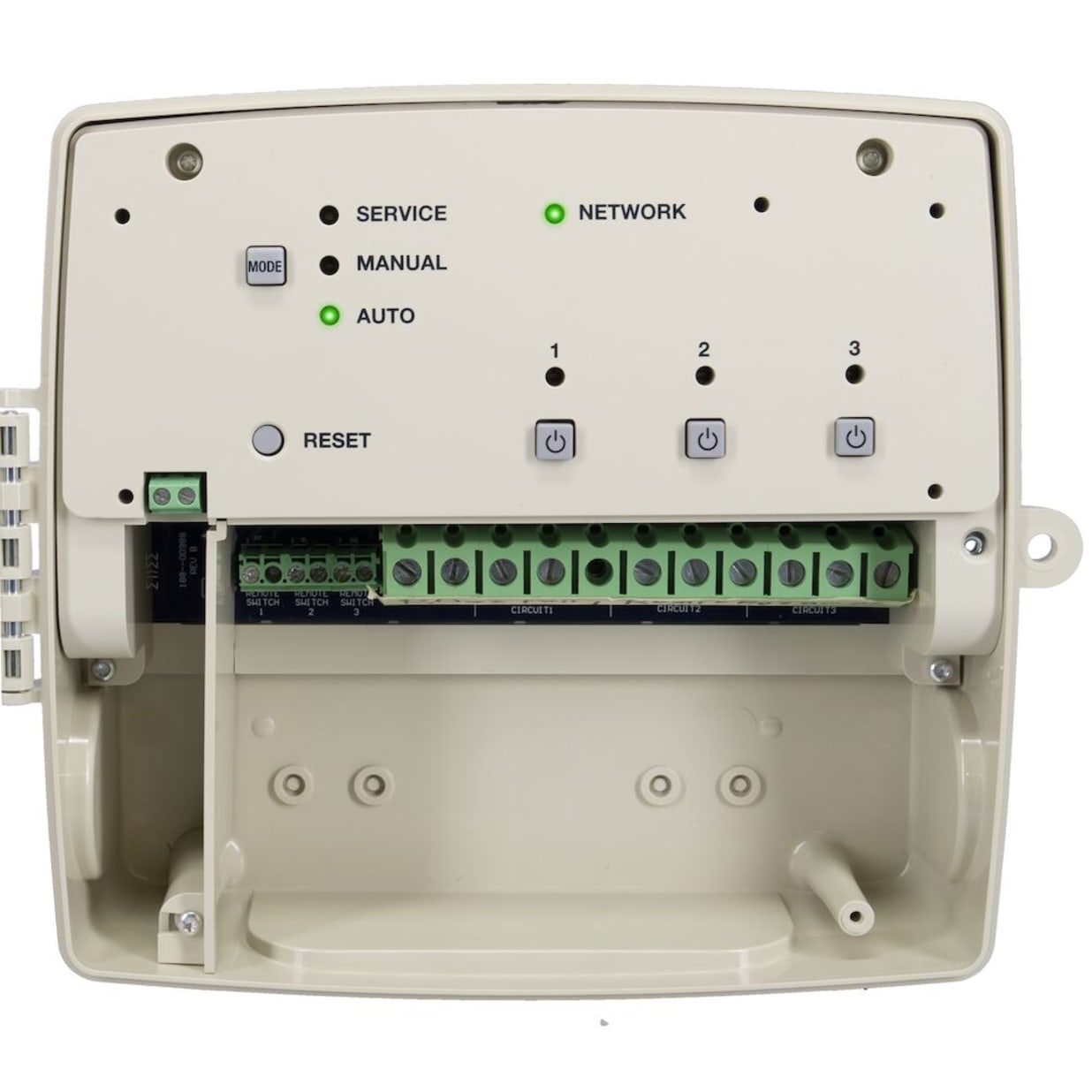

LED Status Indicators - provides visual cue to indicate the devices current state and connection status.
Non-volatile EEPROM memory protects programing indefinitely.
Specs & Details
| Product Name | 24-Hour 7-Day Electronic Wifi Time Control, 3-Circuit, Type 3R Plastic Enclosure |
| Manufacturer Part Number | PE733P |
| Sku | INT-30-1002 |
| UPC | 078275154049 |
- Intermatic Programmable Smart Wi-Fi Pool Timer Installation and Setup Instructions MODELS: PE723P, PE733P|
- Intermatic PE700 Series Sell Sheet|
