Waterway 310-4190 4 HP Impeller

List Price: $28.87
You Save: $8.98 (31%)
Free Shipping Over $75.00
100+ In Stock
- +

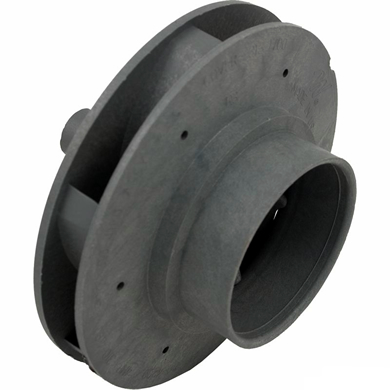

Executive 4 HP Impeller

This 4 HP Waterway Impeller is used on Executive Pumps. Its has a double stepped inlet, the second step diamter is 2-3/4". This impeller has 6 vanes. Diameter is: 4-1/2" Thickness is: 1/2" (INSIDE VANE THICKNESS AT OUTSIDE EDGE OF IMPELLER) THICKNESS: 3/4" (OUTSIDE VANE THICKNESS AT OUTSIDE EDGE OF IMPELLER) Front to Back: 3-9/16" (FROM END OF SHAFT TO FRONT ON INTAKE) Inlet inside Diameter: 2-3/16" Inlet outside Diameter: 2-3/8" Inlet Length: 15/16" Total inlet Length: 11/16" 2-3/8" Markings: this impeller has part numbers for the 1, 2, 3, 4, AND 5 H. The difference in each horsepower is the thickness. Shaft Seal used on this Impeller is the PS-1000

More Information
Brand Waterway
Product Name 4 HP Impeller
Manufacturer Part Number 310-4190
Obsolete No
SKU WWP-85-8916
