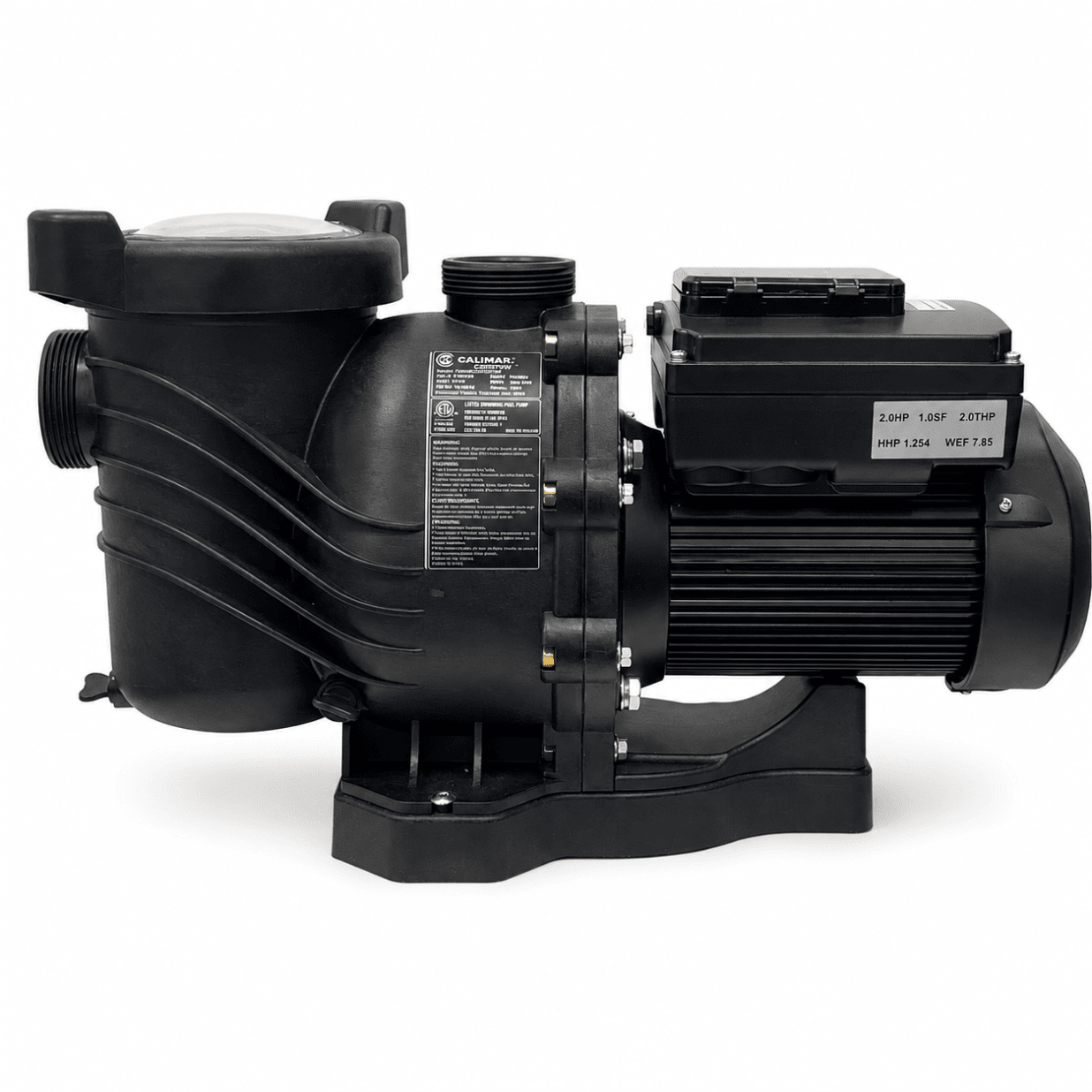

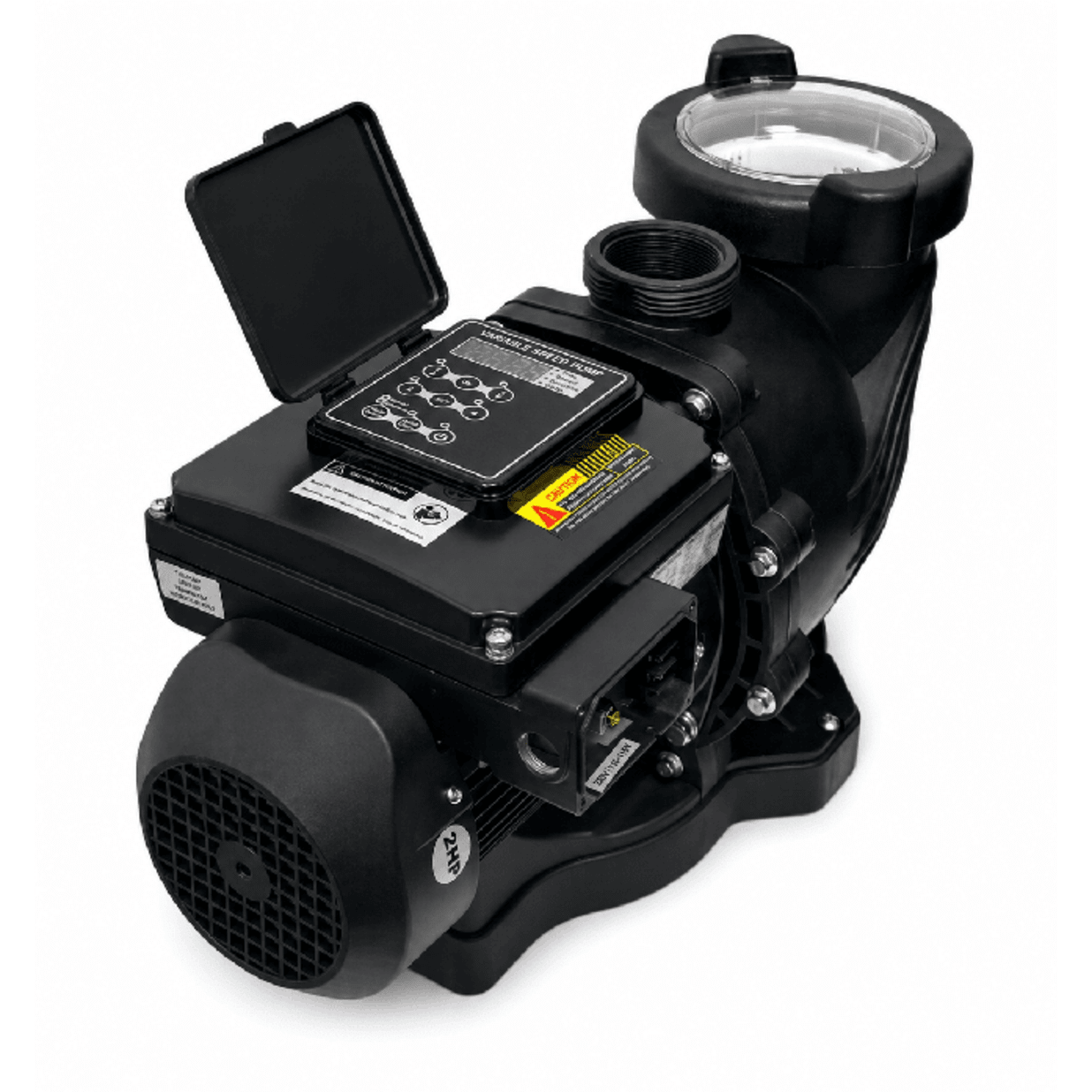

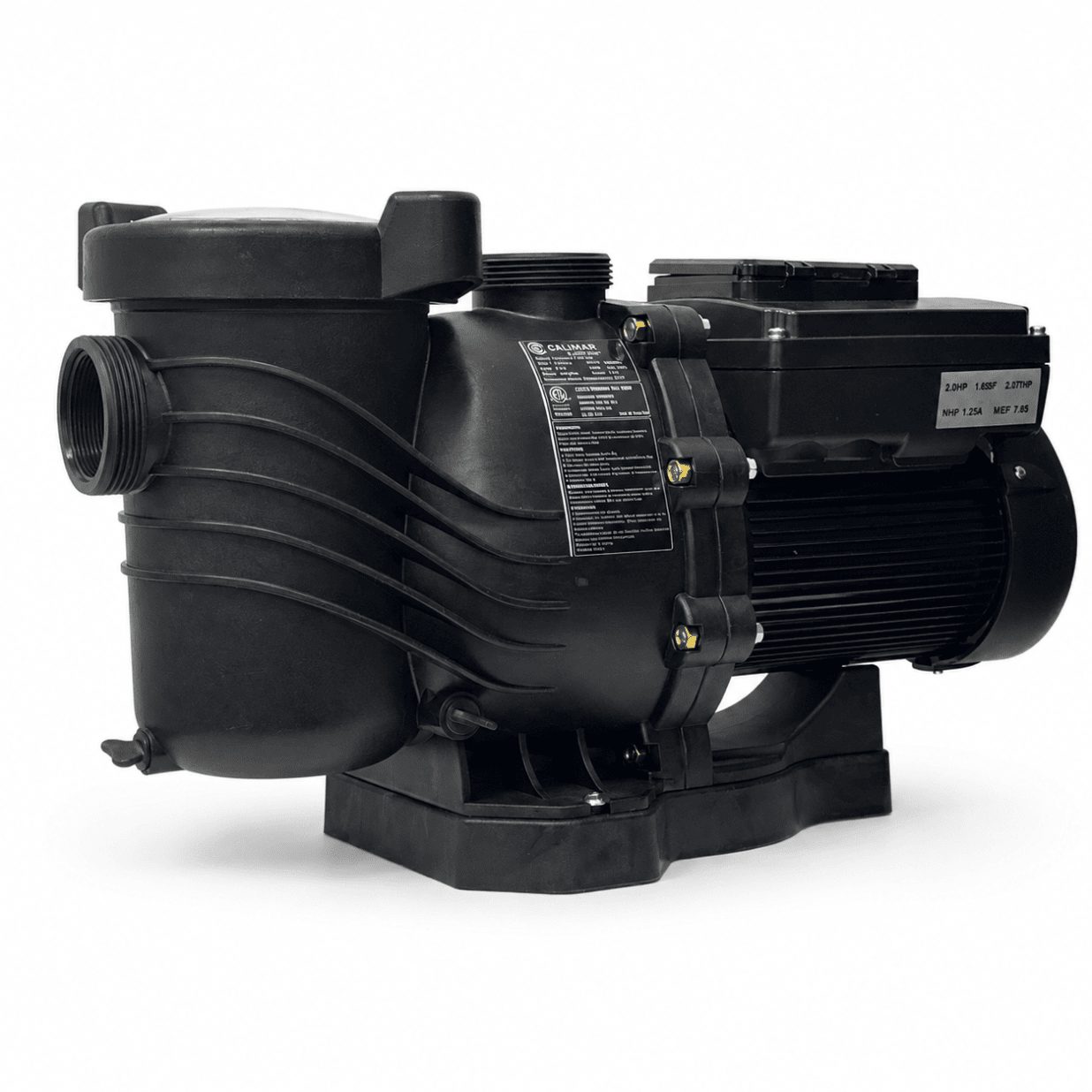

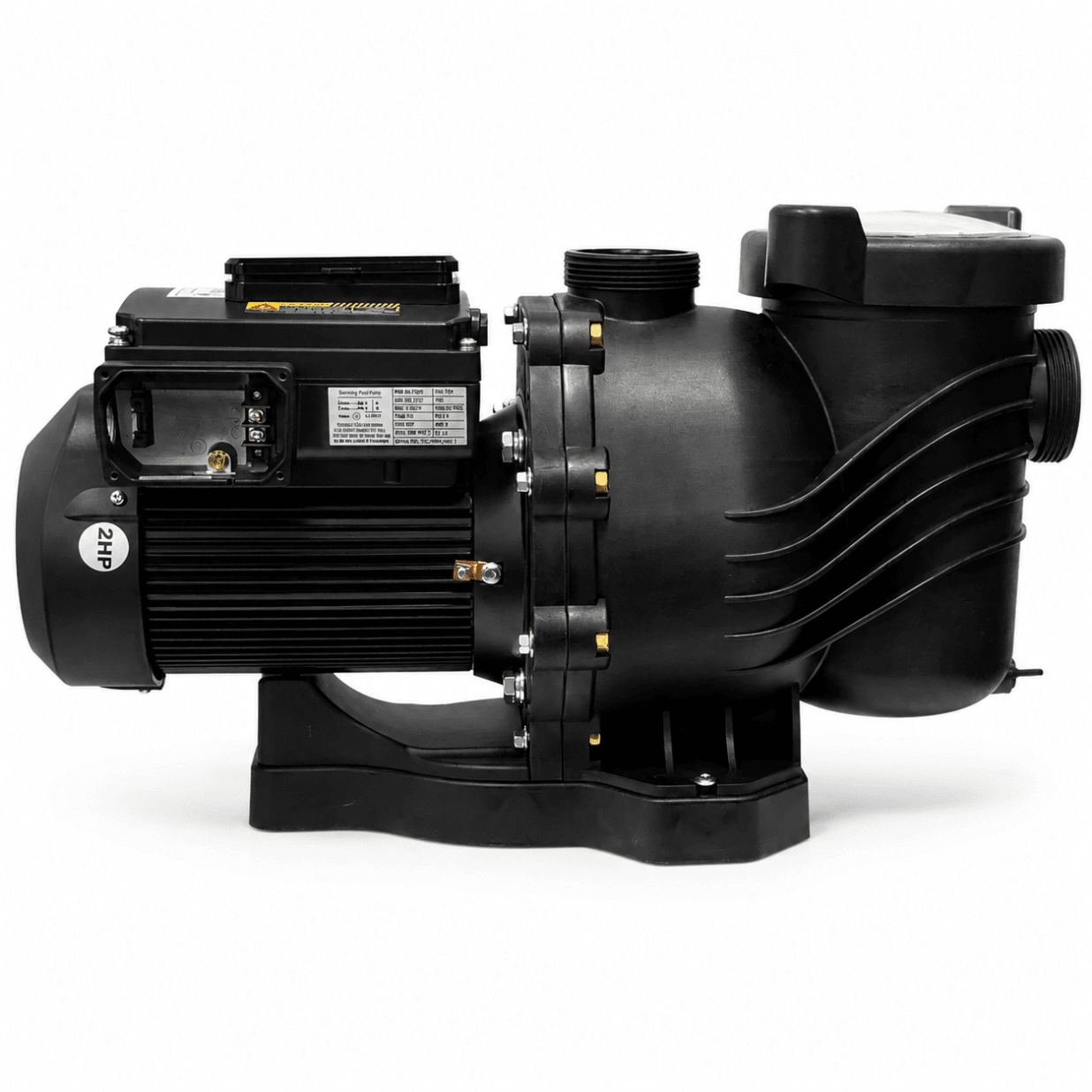

CaliMar CaliFlow Variable Speed Pool Pump, 2 HP, 230V
CaliMar CMARCFVSP2020
CaliMar® CaliFlow™ Variable Speed Pool Pump, 2 HP 230V CMARCFVSP2020
The perfect choice for all types of pools, the CaliMar Variable Speed Pump was specifically designed to be your best choice for a variety of inground pools. Thick-walled body parts, a heavy duty TEFC motor, and highly engineered hydraulics make this rugged and tested design perfect for any pool, spa, water feature, or fountain.
Specifications:
Input Voltage: 230V
Input Frequency: single phase, 50 or 60 Hz
Input Current: 10A
WEF Rating: 7.5
Maximum Continuous Load: 2HP
Speed Range: 450 - 3450 RPM
Environmental Rating: NEMA Type 3
Threated Port Size: 2"
Product Overview
Features:
Ultra-efficient permanent magnet motor design reduces noise and vibration for greater efficiency and longer pump life
Innovative diffuser and high-efficiency impeller maximize water flow and energy efficiency while minimizing noise and operating costs
Components are molded of corrosion-proof reinforced thermoplastic for extra durability and long life

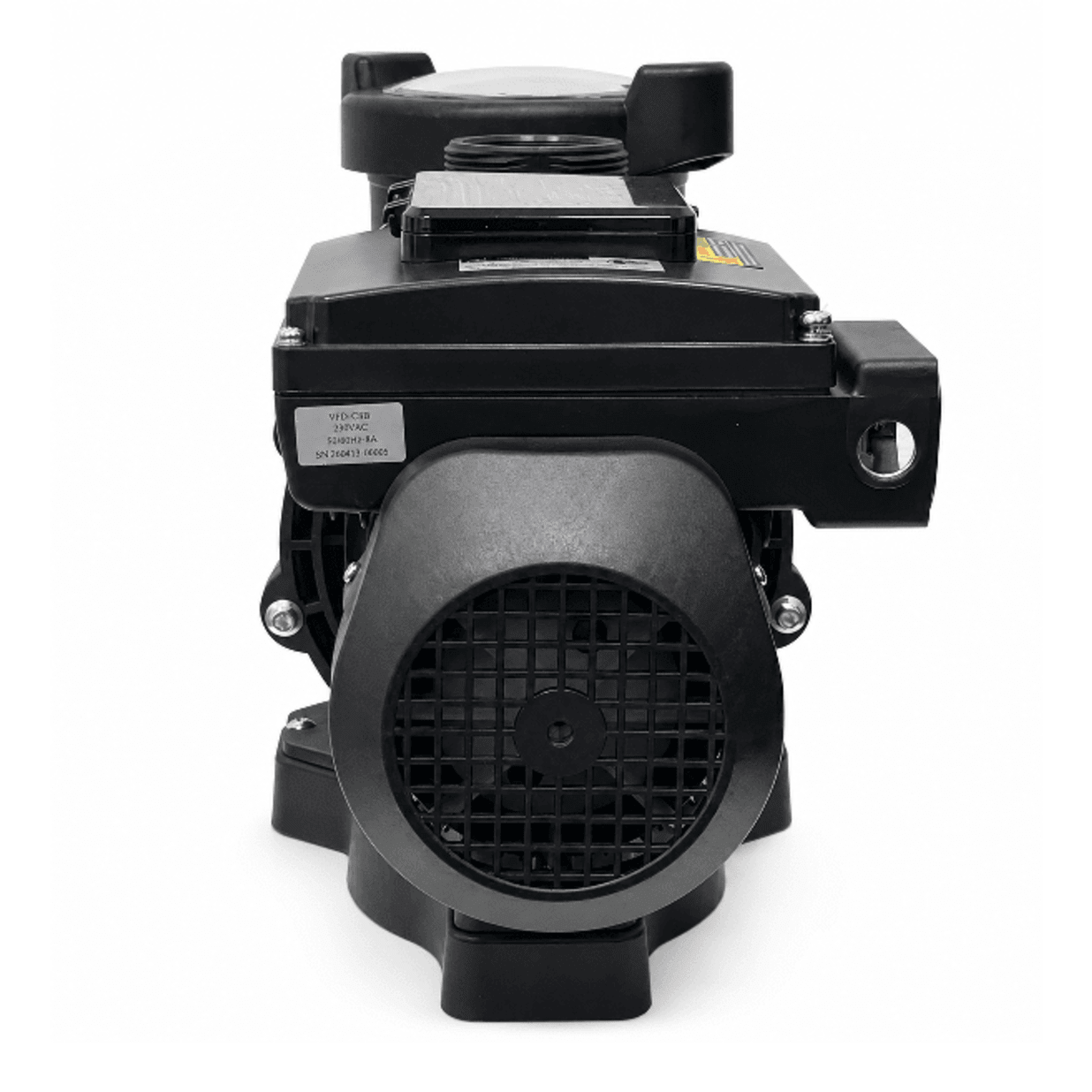

Totally enclosed fan-cooled (TEFC) motor provides maximum energy efficiency and long-lasting performance

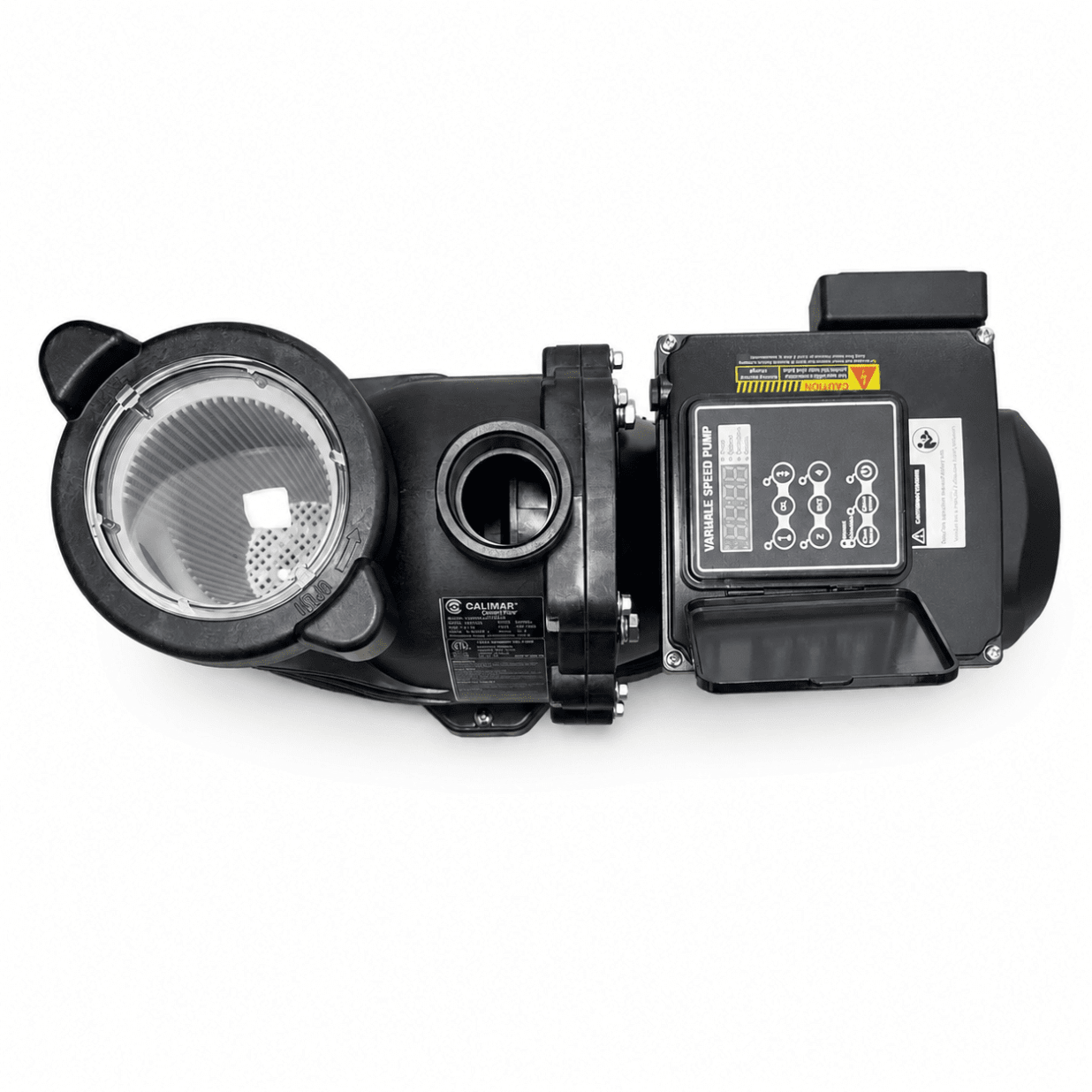

See-through lid makes inspection fast and easy - engineered polymer remains clear and strong
Lid is easy to remove and quickly locks in place with a quarter-turn

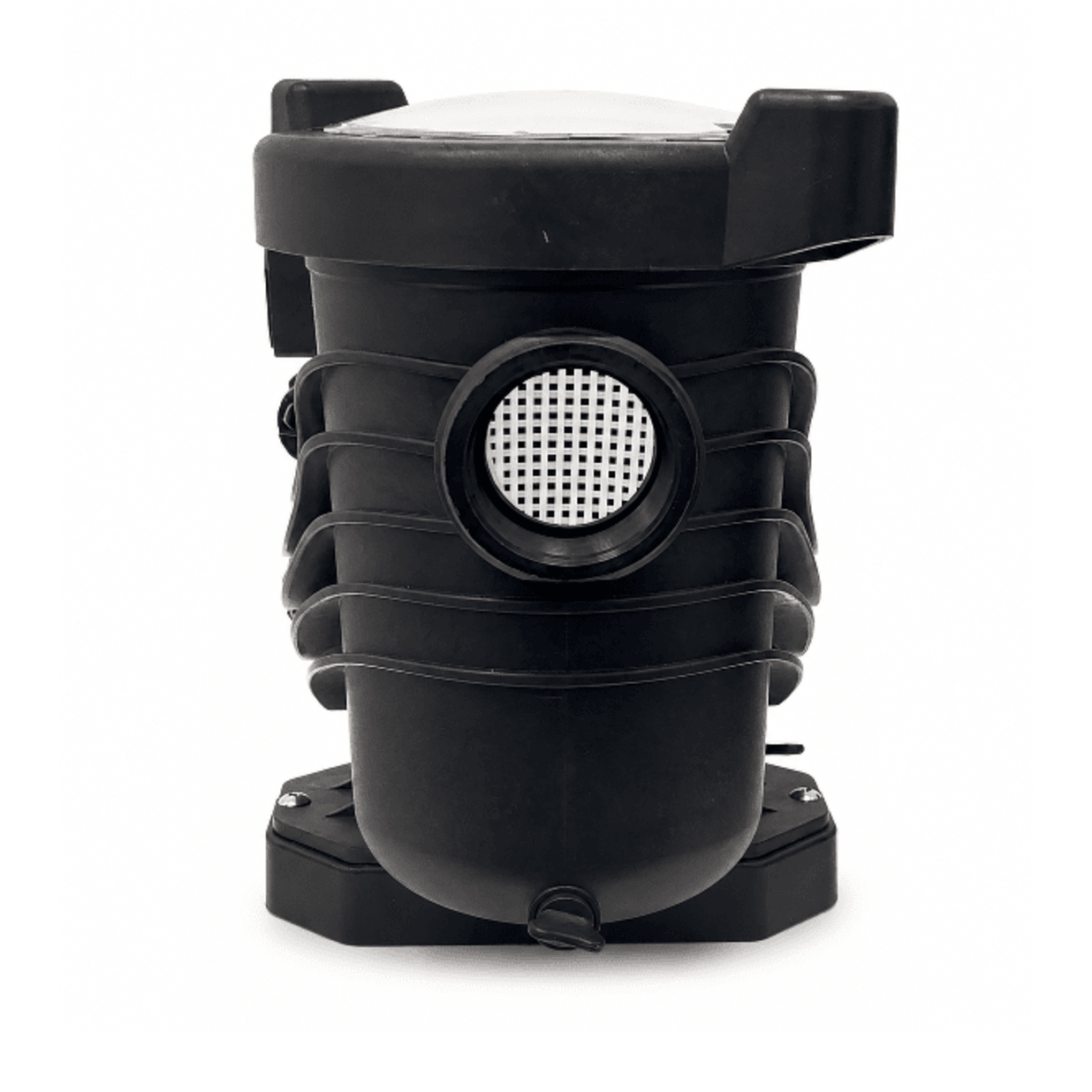

Large strainer basket for ease of maintenance
American designed mechanical seal using carbon to ceramic sealing surfaces
Stainless steel shaft
Self-priming for quick, easy start-up
Listed under the new ENERGY STAR 2.0 specifications
Fits both 1.5" and 2.0" threaded port sizes, with included reducer fittings to adapt the pipe diameter as needed – includes removable feet to adjust for height differences, ensuring a proper fit in either configuration
Specs & Details
| Product Name | CaliFlow Variable Speed Pool Pump, 2 HP, 230V |
| Manufacturer Part Number | CMARCFVSP2020 |
| Sku | PSU-204619 |
- Manual|
California Proposition 65 Warning
WARNING: This product contains chemicals known to the state of California to cause cancer and birth defects or other reproductive harm. For more information: www.p65Warnings.ca.gov
