Pool Zoom
Diagram

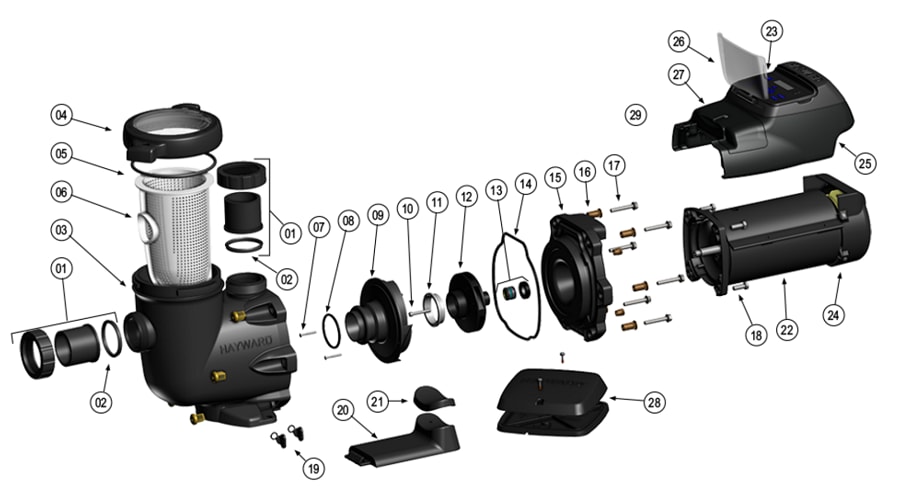

Hayward EcoStar Pump Replacement Parts Diagram

Hayward EcoStar Pump Replacement Parts Diagram

1
Union Connector Kit
Hayward #SPX3200UNKIT
Union Connector Kit
$60.49
Add to Cart
2
Union Gasket (T-seal) (qty 2)
Hayward #SPX3200UG
Union Gasket (T-seal) (qty 2)
$22.9930
Add to Cart
4
TriStar Strainer Cover Kit
Hayward #SPX3200DLS
TriStar Strainer Cover Kit
$100.9969
Add to Cart
5
TriStar Strainer Cover O-Ring
Hayward #SPX3200S
TriStar Strainer Cover O-Ring
$21.9932.5
Add to Cart
7
Diffuser Screws (2 per)
Hayward #SPX3200Z8
Diffuser Screws (2 per)
$17.9927
Add to Cart
8
O-Ring, 2-3/8" ID
Hayward #SPX4000Z1
O-Ring, 2-3/8" ID
$22.991.24
Add to Cart
9
TriStar Diffuser
Hayward #SPX3200B3
TriStar Diffuser
$49.9971.5
Add to Cart
10
Impeller Screw
Hayward #SPX3200Z1
Impeller Screw
$12.9914.94
Add to Cart
12
TriStar 2 HP Impeller with Screw
Hayward #SPX3220C
TriStar 2 HP Impeller with Screw
$76.9987.5
Add to Cart
13
Shaft Seal Assembly
Hayward #SPX3200SA
Shaft Seal Assembly
$34.993.21
Add to Cart
14
Housing O-Ring SPX3200T
Hayward #SPX3200T
Housing O-Ring SPX3200T
$23.9927
Add to Cart
15
Seal Plate
Hayward #SPX3200E
Seal Plate
$66.9993
Add to Cart
17
Bolt Housing Tristar
Hayward #SPX3200Z3
Bolt Housing Tristar
$11.99
Add to Cart
18
Motor Bolts
Hayward #SPX3200Z5
Motor Bolts
$9.9915.5
Out of Stock
19
Drain Plug with Gasket
Hayward #SPX4000FG
Drain Plug with Gasket
$10.9918
Add to Cart
20
Bracket, Motor, Support
Hayward #SPX3200GA
Bracket, Motor, Support
$52.9971.5
Add to Cart
22
Ecostar Motor Assembly
Hayward #SPX3400Z1ECM
Ecostar Motor Assembly
$891.99
Add to Cart
24

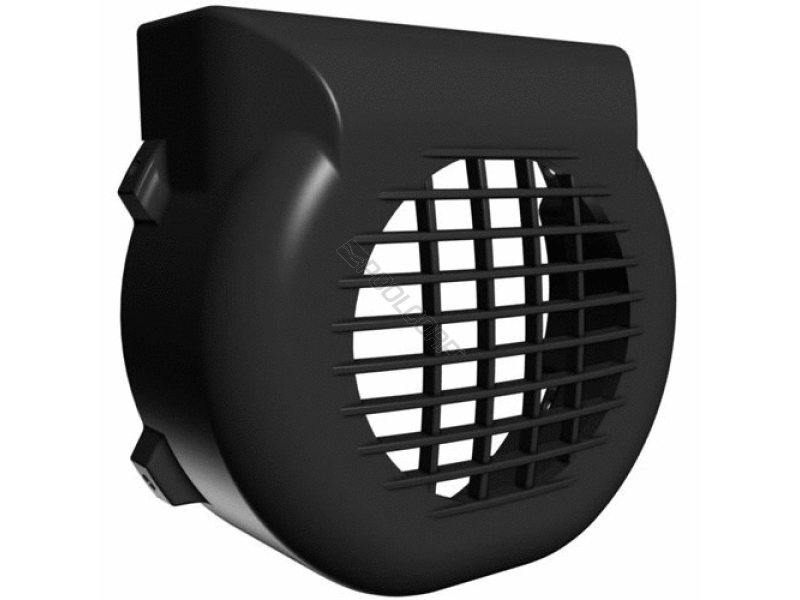

Ecostar Motor Fan Shroud
Hayward #SPX3400FAN
Ecostar Motor Fan Shroud
$42.99
Add to Cart
26
Motor Display Cover
Hayward #SPX3400DR4
Motor Display Cover
$63.9977.5
Out of Stock
27

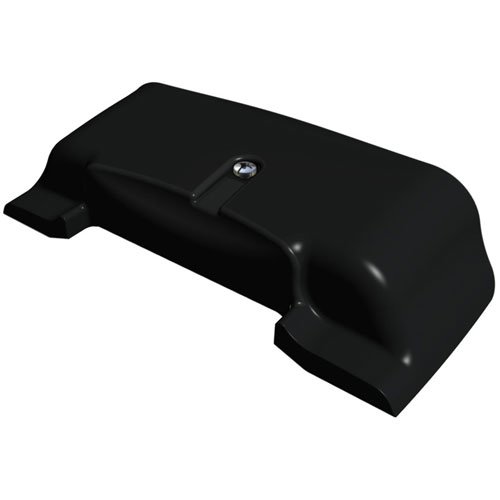

Ecostar Motor Wiring Cover
Hayward #SPX3400DR2
Ecostar Motor Wiring Cover
$106.99134.5
Out of Stock
28
Ecostar Wall Mount Kit
Hayward #SPX3400DRKIT
Ecostar Wall Mount Kit
$140.99171.5
Add to Cart
