Diagram
Hayward SharkVAC XL Parts

Hayward SharkVAC XL Parts

1
Dome Assembly
Hayward #RCX97471SB
Dome Assembly
$114.90
Out of Stock
2
Wall Climb Float Assembly
Hayward #RCX97477
Wall Climb Float Assembly
$46.19
Out of Stock
3
Dome Bushing
Hayward #RCX97423
Dome Bushing
$11.99
Out of Stock
4
Dome Window
Hayward #RCX97472
Dome Window
$14.90
Out of Stock
5
Flat Spring
Hayward #RCX97431
Flat Spring
$5.99
Out of Stock
6
Button
Hayward #RCX97433
Button
$11.99
Add to Cart
8

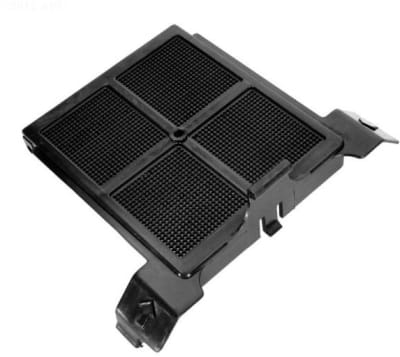

Filter Door
Hayward #RCX97417
Filter Door
$13.99
Out of Stock
9
Small Drain Flap
Hayward #RCX97405
Small Drain Flap
$11.99
Out of Stock
12
Rubber Flap
Hayward #RCX97445
Rubber Flap
$18.99
Add to Cart
15
Impeller, Tigershark
Hayward #RCX11000
Impeller, Tigershark
$20.9925.4
Add to Cart
16
Motor Assembly
Hayward #RCX97490
Motor Assembly
$801.99
Out of Stock
17
Drive Pin Assembly
Hayward #RCX40117
Drive Pin Assembly
$20.99
Add to Cart
18
Filter Bucket Assembly
Hayward
Filter Bucket Assembly
$47.89
Out of Stock
20
Drive Bearing Assembly
Hayward #RCX97502GR
Drive Bearing Assembly
$50.99
Add to Cart
21
Bushing, 2W (Set of 4)
Hayward #RCX97506
Bushing, 2W (Set of 4)
$10.09
Out of Stock
22
Drive Belt Wheel
Hayward #RCX97505GR
Drive Belt Wheel
$9.42
Out of Stock
23
Bushing, 1W (Set of 4)
Hayward #RCX97435
Bushing, 1W (Set of 4)
$5.90
Out of Stock
24
Shaft-Drive Wheel
Hayward #RCX97507GR
Shaft-Drive Wheel
$5.49
Out of Stock
25
Pulley Bearing Kit
Hayward #RCX26000PAK2
Pulley Bearing Kit
$27.99
Add to Cart
26
Screw RCX97461
Hayward #RCX97461
Screw RCX97461
$20.9927
Out of Stock
27
Roller Brush
Hayward #RCX26008
Roller Brush
$50.5950.59
Add to Cart
27
Roller Assembly - Foam
Hayward #RCX26011WCE
Roller Assembly - Foam
$97.99
Out of Stock
28
Tube Wheel
Hayward #RCX97409
Tube Wheel
$21.99
Out of Stock
29
Roller End Cap
Hayward #RCX97511GR
Roller End Cap
$9.29
Out of Stock
30
Wheel Tube Assembly - Light Gray
Hayward #RCX97410
Wheel Tube Assembly - Light Gray
$60.99
Out of Stock
30
Wheel Tube Assembly - Black
Hayward #RCX97410BK
Wheel Tube Assembly - Black
$12.49
Out of Stock
31
SharkVAC Base
Hayward #RCX97401
SharkVAC Base
$48.99
Out of Stock
32
Drive Wheel w/ Rubber
Hayward #RCX97509GR
Drive Wheel w/ Rubber
$5.90
Out of Stock
33
Side Panel RCX97403
Hayward #RCX97403
Side Panel RCX97403
$34.9945
Out of Stock
34
Overmolded Wheel Assembly
Hayward #RCX97508GR
Overmolded Wheel Assembly
$21.9939.8
Add to Cart
37
Shaft-Hinge
Hayward #RCX97429
Shaft-Hinge
$19.99
Out of Stock
38
Housing Connector
Hayward #RCX59002
Housing Connector
$9.9913.5
Out of Stock
39
Connector-Plastic Washer
Hayward #RCX12301
Connector-Plastic Washer
$9.9917
Out of Stock
45
Connector Socket Molex
Hayward #RCX59006
Connector Socket Molex
$5.9913.8
Add to Cart
47
Tigershark Cord 55'
Hayward #RCX50061
Tigershark Cord 55'
$184.99228.5
Add to Cart
