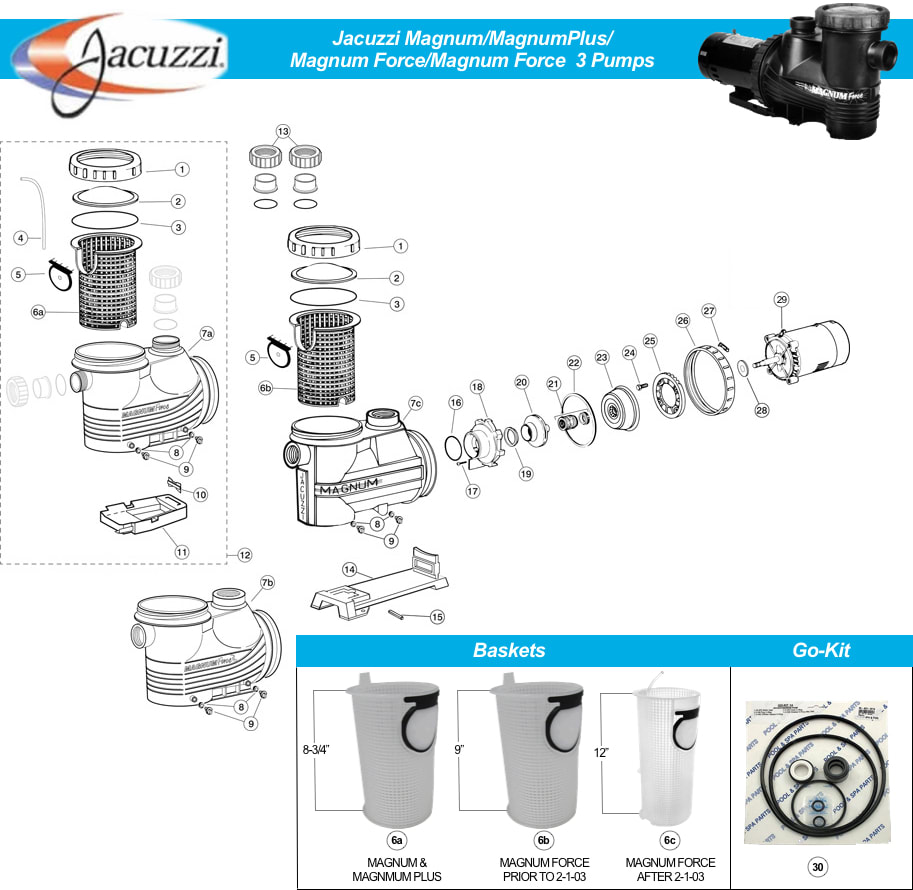

Diagram
Jacuzzi Magnum, Magnum Plus, and Magnum Force Pump Parts

Jacuzzi Magnum, Magnum Plus, and Magnum Force Pump Parts

1
Replacement Lock Ring
Jacuzzi #42282806R
Replacement Lock Ring
$31.9940.5
Add to Cart
2
Strainer Cover Lid 39257902R
Horizon #39257902R
Strainer Cover Lid 39257902R
$39.9945
Add to Cart
5
Flapper Assembly
Jacuzzi #43-3036-01-R
Flapper Assembly
$27.99
Add to Cart
8
O-Ring, 1/2" ID
Jacuzzi #47011200R
O-Ring, 1/2" ID
$7.999
Add to Cart
8
Universal O-Ring 1/2" ID
SuperPro #O-39-9
Universal O-Ring 1/2" ID
$5.9911.8
Add to Cart
9
Drain Plug 1/4" with O-Ring (set of 2)
Jacuzzi #30060906R2 , 31160906R2
Drain Plug 1/4" with O-Ring (set of 2)
$11.9914.5
Add to Cart
10
Motor Support For Magnum/Magnum Plus
Jacuzzi #5064-28
Motor Support For Magnum/Magnum Plus
$17.9920
Out of Stock
11
Motor Base
Jacuzzi #5064-29
Motor Base
$26.9931.5
Out of Stock
12
Magnum Case/Base/Basket Assy
Jacuzzi #42234506R
Magnum Case/Base/Basket Assy
$218.99246.5
Out of Stock
13
Set of Union Half 2"
Jacuzzi #9173-10
Set of Union Half 2"
$37.9942.5
Out of Stock
14
Motor Support, Jacuzzi Magnum High Flow
Jacuzzi #35-105-1138
Motor Support, Jacuzzi Magnum High Flow
$12.99
Out of Stock
15
Dowel Pin 1/4"x1-1/4" SS
Jacuzzi #5064-10
Dowel Pin 1/4"x1-1/4" SS
$9.90
Out of Stock
16
Magnum Square Ring Gasket
Jacuzzi #47-0232-54R
Magnum Square Ring Gasket
$7.9910
Out of Stock
16
Diffuser Square-Ring, Jacuzzi Magnum
Aladdin #O-462-9
Diffuser Square-Ring, Jacuzzi Magnum
$6.9910.5
Add to Cart
17
Screw #8 X 1-1/4"
Jacuzzi #14420608R
Screw #8 X 1-1/4"
$14.99
Out of Stock
18
Diffuser 2HP Full Rate
Jacuzzi #5064-13B
Diffuser 2HP Full Rate
$48.14
Out of Stock
18
Diffuser, Jacuzzi Magnum, 1.5thp-2.5thp
Carvin #06001002R
Diffuser, Jacuzzi Magnum, 1.5thp-2.5thp
$26.76
Out of Stock
18
Diffuser 3/4-1HP FR/1.5HP UR
Jacuzzi #06016703R
Diffuser 3/4-1HP FR/1.5HP UR
$37.9942.5
Add to Cart
18
Jacuzzi Magnum Pump Parts - 3 hp Diffuser HH
Jacuzzi #06016517R
Jacuzzi Magnum Pump Parts - 3 hp Diffuser HH
$35.99
Out of Stock
18
1.5-3 HP Diffuser
Jacuzzi #06016505R
1.5-3 HP Diffuser
$45.9951.5
Add to Cart
18
.5HP - 1.5HP Diffuser
Jacuzzi #06015705R
.5HP - 1.5HP Diffuser
$25.00
Out of Stock
18
Diffuser .5HP FR/.75HP UR
Jacuzzi #5067-10A
Diffuser .5HP FR/.75HP UR
$37.9942.5
Out of Stock
18

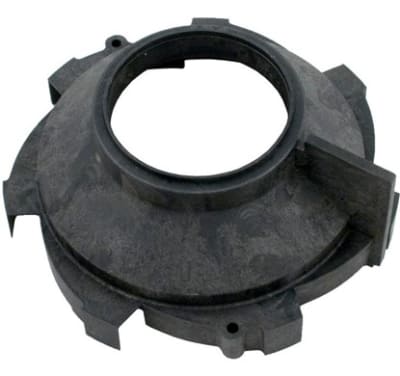

Diffuser 3HP Full Rate
Jacuzzi #5067-10C, 06016406R
Diffuser 3HP Full Rate
$43.9949.5
Out of Stock
18
Diffuser 1.5-2HP FR/2HP UR
Jacuzzi #06016307R
Diffuser 1.5-2HP FR/2HP UR
$37.9942.5
Out of Stock
18
Magnum Diffuser 4 & 5 HP Uprated
Horizon #06000806R
Magnum Diffuser 4 & 5 HP Uprated
$43.9949.5
Out of Stock
19
Eye Seal Ring 1/2HP-3HP
Jacuzzi #10-1462-07
Eye Seal Ring 1/2HP-3HP
$25.9929
Add to Cart
19

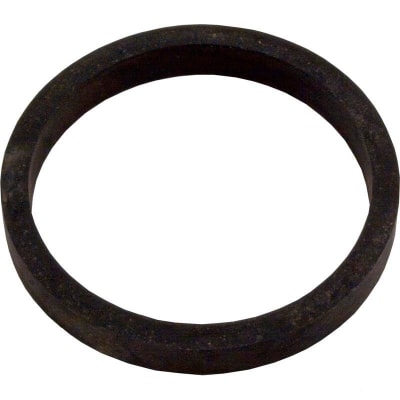

Wear Ring, Jacuzzi Magnum, 4HP - 5HP
Jacuzzi #10146314R000
Wear Ring, Jacuzzi Magnum, 4HP - 5HP
$21.9925.5
Add to Cart
20
Impeller .5HP FR/.75 HP UR
Jacuzzi #5062-18A
Impeller .5HP FR/.75 HP UR
$42.9948
Add to Cart
20
Impeller, Jacuzzi Magnum, 4.0hp
Jacuzzi #05037304R
Impeller, Jacuzzi Magnum, 4.0hp
$49.9956
Out of Stock
20
Impeller .75HP FR/1HP UR
Jacuzzi #5064-15
Impeller .75HP FR/1HP UR
$42.9948
Add to Cart
20
Impeller, 1hp FR - 1.5hp UR
Jacuzzi #05-3854-06
Impeller, 1hp FR - 1.5hp UR
$42.9961.5
Add to Cart
20
Impeller 3HP FULL/UP RATE
Jacuzzi #5064-15D
Impeller 3HP FULL/UP RATE
$42.9948
Add to Cart
20
Magnum Impeller 1-1/2 HP FULL 2 HP UP
Jacuzzi #05381900R
Magnum Impeller 1-1/2 HP FULL 2 HP UP
$52.9959.5
Out of Stock
20
Impeller, 2HP HH
Jacuzzi #05-3818-01
Impeller, 2HP HH
$49.99
Add to Cart
20
Impeller, Jacuzzi Magnum, 1.5ohp/2.0thp, 04+
Impeller, Jacuzzi Magnum, 1.5ohp/2.0thp, 04+
$42.99
Out of Stock
20
Impeller, 1 HP FULL, 1-1/2 UPRATE, AFTER 12/1/04
Jacuzzi #05038203R
Impeller, 1 HP FULL, 1-1/2 UPRATE, AFTER 12/1/04
$42.10
Out of Stock
20
Magnum Impeller 5HP FULL/UP RATE
Jacuzzi #05037106R
Magnum Impeller 5HP FULL/UP RATE
$42.9948
Out of Stock
21
Pump Shaft Seal Assembly
U.S. Seal #PS201
Pump Shaft Seal Assembly
$6.9918.9
Add to Cart
21
.75" SCS SERIES SEAL ASSEMBLY
U.S. Seal #PS-1902
.75" SCS SERIES SEAL ASSEMBLY
$62.99
Out of Stock
21
Heavy Duty Seal Assembly
U.S. Seal #PS-3868
Heavy Duty Seal Assembly
$19.99
Add to Cart
22
Generic O-Ring, 6-3/4"
SuperPro #O-263
Generic O-Ring, 6-3/4"
$7.3318
Add to Cart
23
Seal Plate 2HP High Flow
Jacuzzi #5064-18B
Seal Plate 2HP High Flow
$120.59
Out of Stock
23

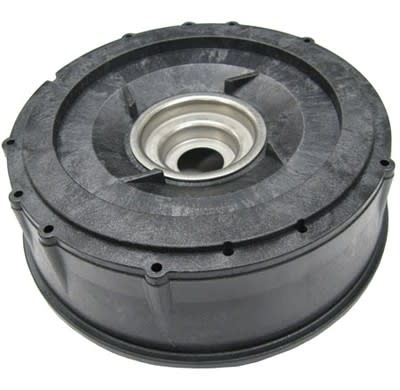

Seal Plate 1.5/3HP High Flow
Jacuzzi #5064-18A
Seal Plate 1.5/3HP High Flow
$147.99
Out of Stock
23
Seal Housing 1.5-3HP FR/5HP UR
Jacuzzi #5064-18D
Seal Housing 1.5-3HP FR/5HP UR
$74.99
Add to Cart
23
Seal Housing .5HP FR/.75HP UR
Jacuzzi #5064-18
Seal Housing .5HP FR/.75HP UR
$116.99131
Out of Stock
23
Seal Housing .75-1HP FR/1.5HP UR
Jacuzzi #5064-18C
Seal Housing .75-1HP FR/1.5HP UR
$147.99167
Out of Stock
24
Motor Bolt 3/8-16x7/8" (Set of 4)
Jacuzzi #14-1293-24-R
Motor Bolt 3/8-16x7/8" (Set of 4)
$15.9915.5
Out of Stock
25
Motor Housing Bracket
Jacuzzi #02136802R
Motor Housing Bracket
$52.99
Add to Cart
26
Mounting Nut with Ratchet
Jacuzzi #42288605
Mounting Nut with Ratchet
$57.9966
Add to Cart
27
Mounting Nut Ratchet
Jacuzzi #5064-22
Mounting Nut Ratchet
$10.9913.5
Add to Cart
28
Water Slinger, Jacuzzi Magnum
Carvin #22340301R
Water Slinger, Jacuzzi Magnum
$1.80
Out of Stock
29
3/4 HP Full Rate 2 Speed Motor with Timer - Round Flange, 115V
#B973T
3/4 HP Full Rate 2 Speed Motor with Timer - Round Flange, 115V
$348.99
Out of Stock
29
1HP 2-Speed Full-Rate 56J Motor, 230V
Century #B2975
1HP 2-Speed Full-Rate 56J Motor, 230V
$497.99514
Add to Cart
29
Threaded FR .5HP EE 115 / 208/ 230V
Century #B657
Threaded FR .5HP EE 115 / 208/ 230V
$280.99318
Out of Stock
29
Threaded FR .75HP EE 115 / 208/ 230V
Century #B638
Threaded FR .75HP EE 115 / 208/ 230V
$385.99438
Out of Stock
29
1HP EE, 1-Speed, Threaded, 115v/230v, 56J Frame, C-Face Motor
Century #B654
1HP EE, 1-Speed, Threaded, 115v/230v, 56J Frame, C-Face Motor
$427.99442.5
Add to Cart
29
Threaded Shaft Full Rate 1.5 HP EE 115 230V
Century #B796
Threaded Shaft Full Rate 1.5 HP EE 115 230V
$504.99571
Out of Stock
29
Threaded FR 2 HP EE 208/230V
Century #B809
Threaded FR 2 HP EE 208/230V
$634.99717
Out of Stock
29
Motor 2.5 HP, 56J Frame 2-Speed
Century #B2977
Motor 2.5 HP, 56J Frame 2-Speed
$493.99685.32
Add to Cart
29
56J Threaded UR .75 HP 115/230V Pool Pump Motor
Century #B227SE
56J Threaded UR .75 HP 115/230V Pool Pump Motor
$274.99291
Add to Cart
30

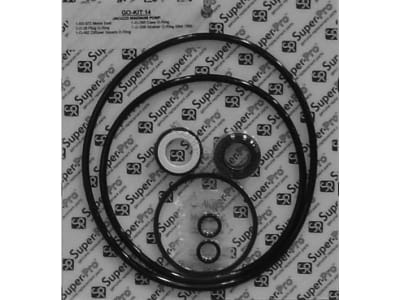

Jacuzzi Magnum Pump Seal Kit
SuperPro #GO-KIT14-9
Jacuzzi Magnum Pump Seal Kit
$26.9938
Add to Cart
7a
BODY W/PLUGS/BASKET AFTER 2/03
Jacuzzi #5064-05A
BODY W/PLUGS/BASKET AFTER 2/03
$209.99235
Out of Stock
7c
Magnum Plus Body Only
Jacuzzi #3085602
Magnum Plus Body Only
$129.99145.5
Out of Stock
