Jandy Laars LX/LT Heater Parts

Jandy Laars LX/LT Heater Parts

1
250,000 BTU Copper Heat Exchanger
Teledyne Laars #R0326303
250,000 BTU Copper Heat Exchanger
$1,356.991523
Out of Stock
1
400,000 BTU Copper Heat Exchanger
Teledyne Laars #R0326305
400,000 BTU Copper Heat Exchanger
$1,553.991747
Out of Stock
1
400,000 BTU Heat Exchanger ASME
Teledyne Laars #R0395705
400,000 BTU Heat Exchanger ASME
$2,929.31
Out of Stock
4
Front Header with Hardware and Gaskets
Teledyne Laars #R0326900
Front Header with Hardware and Gaskets
$842.99952
Out of Stock
5
Rear Header with Hardware & Gaskets
Teledyne Laars #R0327000
Rear Header with Hardware & Gaskets
$249.99280
Out of Stock
6
By-Pass Assembly
Teledyne Laars #R0327100
By-Pass Assembly
$105.99120
Add to Cart
7
By-Pass Assembly Gasket
Teledyne Laars #R0336700
By-Pass Assembly Gasket
$14.9917
Out of Stock
8
By-Pass Spring R0327200
Teledyne Laars #R0327200
By-Pass Spring R0327200
$51.9958
Out of Stock
9
Coupling Nut Kit with Flange
Teledyne Laars #R0327300
Coupling Nut Kit with Flange
$81.99
Add to Cart
10
Header Coupling O-Ring
Teledyne Laars #R0337600
Header Coupling O-Ring
$10.3719
Add to Cart
11
Header Gasket (Front or Rear)
Teledyne Laars #R0327500
Header Gasket (Front or Rear)
$45.9951.5
Out of Stock
12
Header Drain Plug Gaskets (Set of 3)
Teledyne Laars #R0335900
Header Drain Plug Gaskets (Set of 3)
$20.9921.5
Out of Stock
14
Burner Tray Weldment 400BTU
Teledyne Laars #R0327705
Burner Tray Weldment 400BTU
$244.99277.5
Out of Stock
15
Main Burner Assembly (Each)
Teledyne Laars #R0469800
Main Burner Assembly (Each)
$40.8451.5
Add to Cart
16
Gas Manifold 400BTU
Teledyne Laars #R0327805
Gas Manifold 400BTU
$112.99141
Out of Stock
17

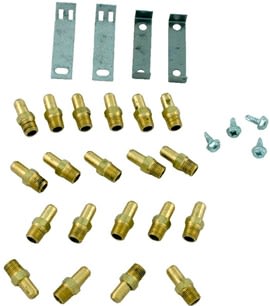

Natural Orifice (0-3K ft) (Set of 20)
Teledyne Laars #R0327900
Natural Orifice (0-3K ft) (Set of 20)
$49.9956
Out of Stock
17
LP Orifice (0-5K ft) (Set of 20)
Teledyne Laars #R0328200
LP Orifice (0-5K ft) (Set of 20)
$51.9958
Out of Stock
19
Natural Gas Valve w/ Street Elbow R0336800
Teledyne Laars #R0336800
Natural Gas Valve w/ Street Elbow R0336800
$232.99264.5
Out of Stock
19
Propane Gas Valve w/ Street Elbow
Teledyne Laars #R0336900
Propane Gas Valve w/ Street Elbow
$227.99257.5
Out of Stock
21
Blower Assembly
Teledyne Laars #R0329800
Blower Assembly
$439.99493
Out of Stock
22
Gasket w/ Blower Mounting Hardware
Teledyne Laars #R0329900
Gasket w/ Blower Mounting Hardware
$24.9929
Out of Stock
24
Indoor Vent Collar 250BTU LX/LT
Teledyne Laars #R0331403
Indoor Vent Collar 250BTU LX/LT
$373.99423.5
Out of Stock
24
9-Inch Indoor Vent Collar 400BTU LX/LT
Teledyne Laars #R0331405
9-Inch Indoor Vent Collar 400BTU LX/LT
$190.99262.1
Add to Cart
25
Outdoor Grill
Teledyne Laars #R0328500
Outdoor Grill
$18.9922.5
Out of Stock
27
Transformer 115V-220V/24V
Teledyne Laars #R0061100
Transformer 115V-220V/24V
$101.99122.5
Add to Cart
29
Blower Pressure Switch
Teledyne Laars #R0302000
Blower Pressure Switch
$150.95190.5
Add to Cart
30
Temperature Sensor/Thermistor
Teledyne Laars #R0011800
Temperature Sensor/Thermistor
$158.99179
Add to Cart
31
Temperature Sensor Gasket
Teledyne Laars #R0456600
Temperature Sensor Gasket
$9.9911
Out of Stock
32
Temperature Sensor Protector Sleeve
Teledyne Laars #10444900
Temperature Sensor Protector Sleeve
$8.99
Add to Cart
33
Retainer Bracket
Teledyne Laars #10447300
Retainer Bracket
$12.9914.5
Out of Stock
34
Retainer Bracket Screw
Teledyne Laars #F0009100
Retainer Bracket Screw
$6.999
Out of Stock
35
Digital Heater Ignition Control
Teledyne Laars #R0408100
Digital Heater Ignition Control
$593.99638.5
Add to Cart
35
Teledyne Laars Ignition Control LX / LT, LOW NOX
Teledyne Laars #R0386800
Teledyne Laars Ignition Control LX / LT, LOW NOX
$274.99312.5
Out of Stock
37
2 PSI Pressure Switch
Teledyne Laars #R0013200
2 PSI Pressure Switch
$153.99172.5
Add to Cart
38
Siphon Loop
Teledyne Laars #R0334600
Siphon Loop
$33.9939
Add to Cart
40
High-Limit Switch 135° F
Teledyne Laars #R0022700
High-Limit Switch 135° F
$59.9976
Add to Cart
41
High-limit Switch, 150° F
Teledyne Laars #R0023000
High-limit Switch, 150° F
$55.9976
Add to Cart
42
High Limit Switch Harness
Teledyne Laars #R0334700
High Limit Switch Harness
$76.99
Add to Cart
43

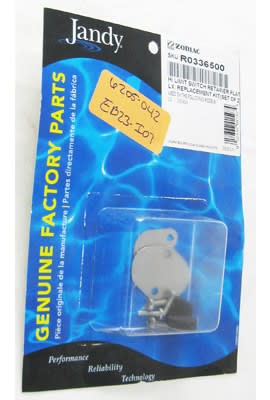

High Limit Retainer Plates (Set of 2)
Teledyne Laars #R0336500
High Limit Retainer Plates (Set of 2)
$14.9918
Out of Stock
52
Wire Harness, 15 Pin Connector
Teledyne Laars #R0336400
Wire Harness, 15 Pin Connector
$46.9953.5
Out of Stock
53
Terminal Block
Teledyne Laars #R0097800
Terminal Block
$30.9936
Add to Cart
54
Temperature Control w/ Bezel
Teledyne Laars #R0329600
Temperature Control w/ Bezel
$738.99829
Out of Stock
55
Flame Sense Rod
Teledyne Laars #R0334800
Flame Sense Rod
$70.99
Add to Cart
56
Fusible Link
Teledyne Laars #R0012200
Fusible Link
$15.89
Add to Cart
69
Top Panel 250BTU
Teledyne Laars #R0330503
Top Panel 250BTU
$363.99433.5
Out of Stock
70
Temperature Control Cover
Teledyne Laars #R0330600
Temperature Control Cover
$56.9965
Out of Stock
71
Combustion Chamber Assembly 250BTU
Teledyne Laars #R0330703
Combustion Chamber Assembly 250BTU
$270.20
Out of Stock
73
Ignitor Box Assembly
Teledyne Laars #R0335700
Ignitor Box Assembly
$16.9922.5
Out of Stock
74
Fusible Link Bracket R0337200
Teledyne Laars #R0337200
Fusible Link Bracket R0337200
$19.9927
Add to Cart
75
Raceway Circuit Board
Teledyne Laars #R0369500
Raceway Circuit Board
$130.99164.5
Out of Stock
