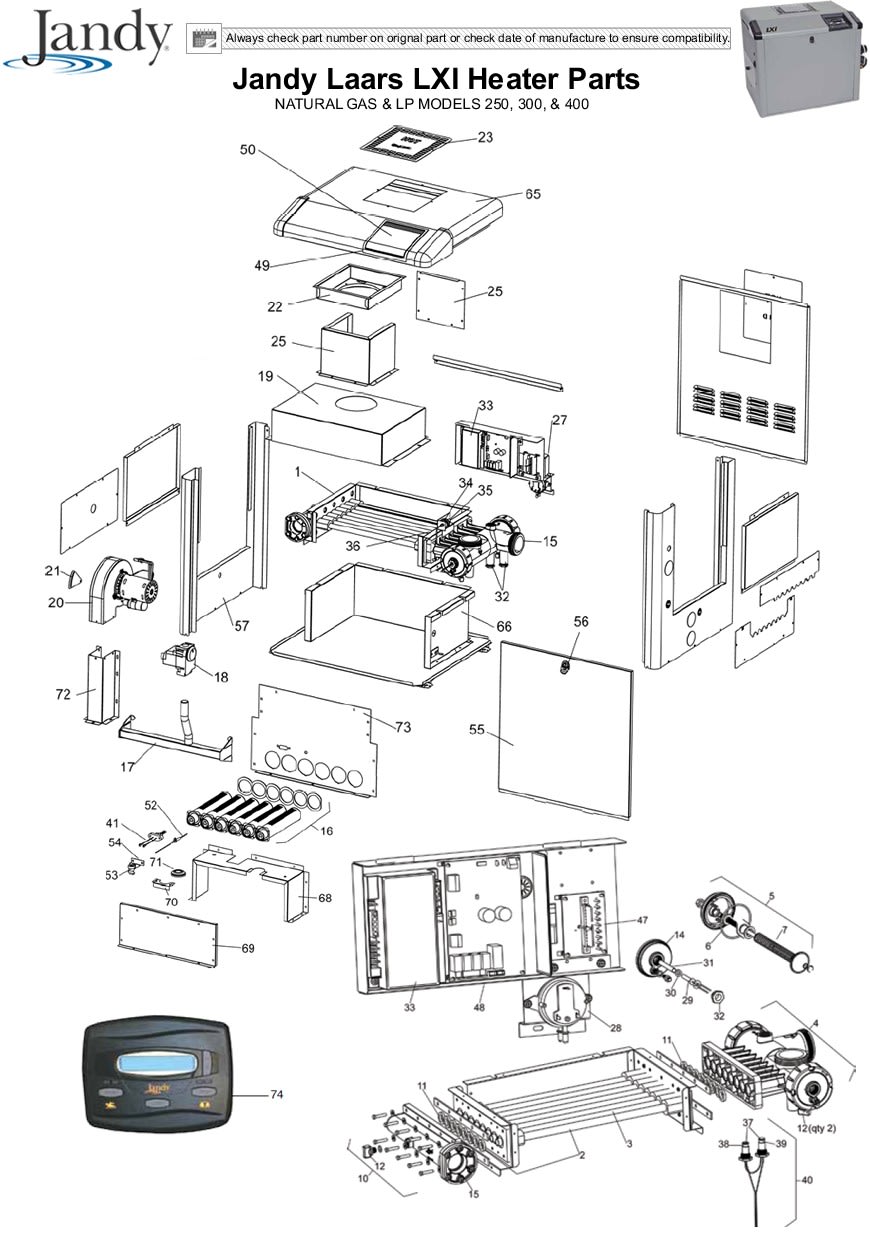

Diagram
Jandy Laars LXI Heater Parts

Jandy Laars LXI Heater Parts

1
Complete Heat Exchanger (CU) 250BTU
Teledyne Laars #R0453303
Complete Heat Exchanger (CU) 250BTU
$1,848.992128
Out of Stock
1
Complete Heat Exchanger (CU) 300BTU
Teledyne Laars #R0453304
Complete Heat Exchanger (CU) 300BTU
$1,396.991601.5
Out of Stock
1
Complete Heat Exchanger (CU) 400BTU
Teledyne Laars #R0453305
Complete Heat Exchanger (CU) 400BTU
$2,218.992486.5
Out of Stock
2
LXi400 Copper Heat Exchanger w/ Hardware & Gaskets
Teledyne Laars #R0453405
LXi400 Copper Heat Exchanger w/ Hardware & Gaskets
$2,172.992497.5
Out of Stock
3
Heat Exchanger End Baffles 400BTU
Teledyne Laars #R0453505
Heat Exchanger End Baffles 400BTU
$211.99254
Out of Stock
4
Front Header w/ Hardware & Gaskets
Teledyne Laars #R0453600
Front Header w/ Hardware & Gaskets
$685.99
Add to Cart
7
By-Pass Spring R0453900
Teledyne Laars #R0453900
By-Pass Spring R0453900
$53.9967
Add to Cart
14
Cap Sensor/Press Switch w/ O-Ring
Teledyne Laars #R0455400
Cap Sensor/Press Switch w/ O-Ring
$54.9967
Add to Cart
15
Return Header Cap & O-Ring
Teledyne Laars #R0454600
Return Header Cap & O-Ring
$43.9956
Add to Cart
16
Burner w/ Gasket
Teledyne Laars #R0454700
Burner w/ Gasket
$109.99134.5
Out of Stock
18
Natural Gas Valve w/ Street Elbow
Teledyne Laars #R0455200
Natural Gas Valve w/ Street Elbow
$383.99432.5
Add to Cart
18
Gas Valve LP w/ Street Elbow
Teledyne Laars #R0455300
Gas Valve LP w/ Street Elbow
$390.99466
Add to Cart
20
Blower Assembly w/ Gaskets
Teledyne Laars #R0455600
Blower Assembly w/ Gaskets
$809.99952
Add to Cart
27
Transformer
Teledyne Laars #R0456300
Transformer
$168.99
Out of Stock
28
Air Pressure Switch R0456400
Teledyne Laars #R0456400
Air Pressure Switch R0456400
$157.99189.5
Add to Cart
29
Temperature Sensor with Sleeve & Gasket
Teledyne Laars #R0456500
Temperature Sensor with Sleeve & Gasket
$125.99177
Add to Cart
30
Temperature Sensor Gasket
Teledyne Laars #R0456600
Temperature Sensor Gasket
$9.9911
Out of Stock
32
Temperature Sensor Plug
Teledyne Laars #R0456800
Temperature Sensor Plug
$21.9925.5
Add to Cart
33
Ignition Control
Teledyne Laars #R0456900
Ignition Control
$449.99535.5
Add to Cart
35
2 PSI Pressure Switch
Teledyne Laars #R0013200
2 PSI Pressure Switch
$153.99172.5
Add to Cart
37
High Limits Set
Teledyne Laars #R0457200
High Limits Set
$119.99150
Add to Cart
38
High Limit 130°F
Teledyne Laars #R0457300
High Limit 130°F
$59.99
Add to Cart
39
High-limit Switch, 150° F
Teledyne Laars #R0023000
High-limit Switch, 150° F
$55.9976
Add to Cart
40
High Limit Switch Harness R0457400
Teledyne Laars #R0457400
High Limit Switch Harness R0457400
$60.9981.5
Add to Cart
41
Hot Surface Ignitor
Teledyne Laars #R0457500
Hot Surface Ignitor
$153.99199.5
Add to Cart
47

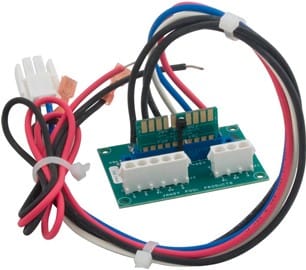

Power Distribution Circuit Board
Teledyne Laars #R0458100
Power Distribution Circuit Board
$139.99185
Add to Cart
48

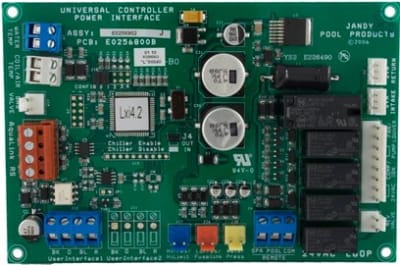

Universal Control PI PCB
Teledyne Laars #R0458200
Universal Control PI PCB
$576.99683
Add to Cart
49
Control User Interface
Teledyne Laars #R0458300
Control User Interface
$539.99638.5
Add to Cart
52
Flame Sensor Rod for LXi Low NOx Heater
Teledyne Laars #R0458600
Flame Sensor Rod for LXi Low NOx Heater
$105.99109.5
Add to Cart
53
Fusible Link
Teledyne Laars #R0012200
Fusible Link
$15.89
Add to Cart
54
Fusible Link Bracket R0337200
Teledyne Laars #R0337200
Fusible Link Bracket R0337200
$19.9927
Add to Cart
74
Universal Control User Interface - Legacy LRZE
Jandy #R3008800
Universal Control User Interface - Legacy LRZE
$537.99638.5
Out of Stock
