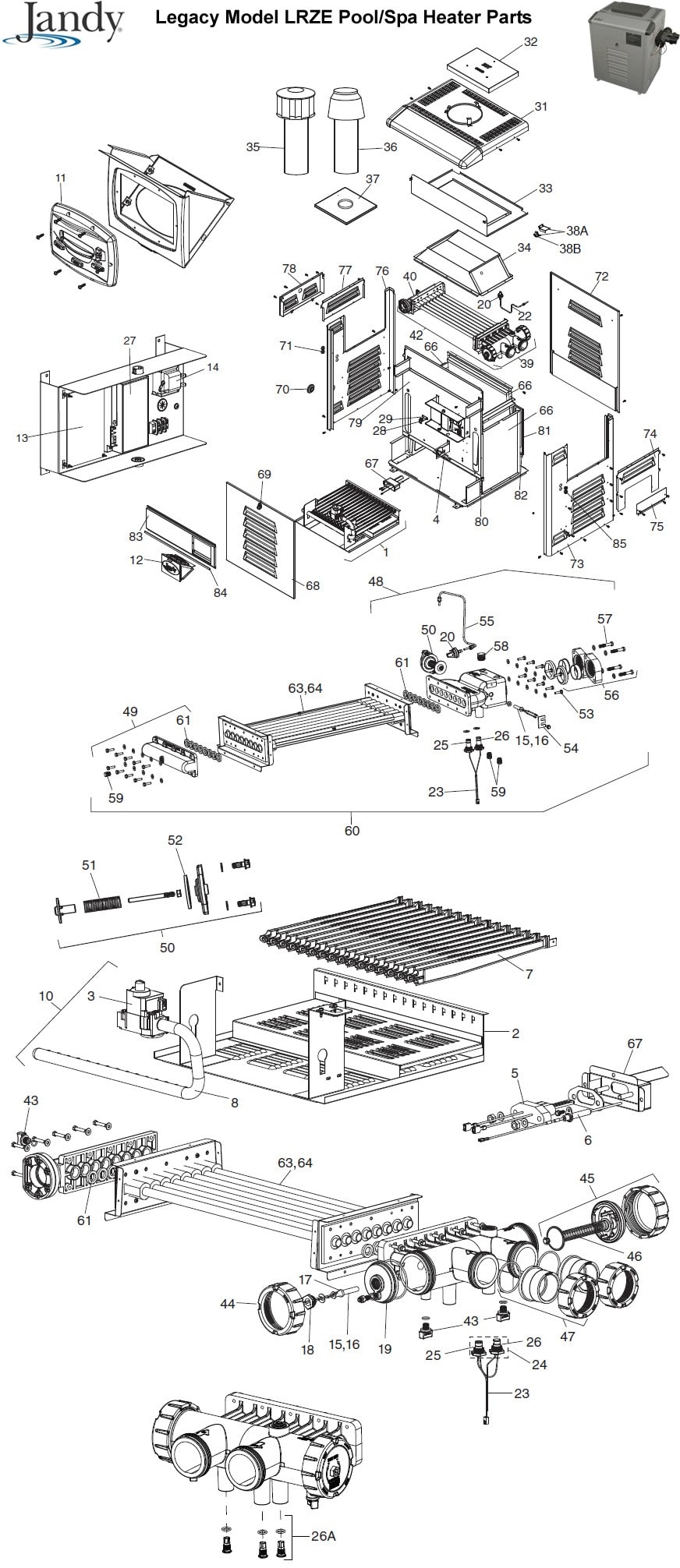

Legacy Model LRZE Pool/Spa Heater Parts

Legacy Model LRZE Pool/Spa Heater Parts

3
LRZE Gas Valve, Natural
Jandy #R0494500
LRZE Gas Valve, Natural
$400.99585.8
Add to Cart
3

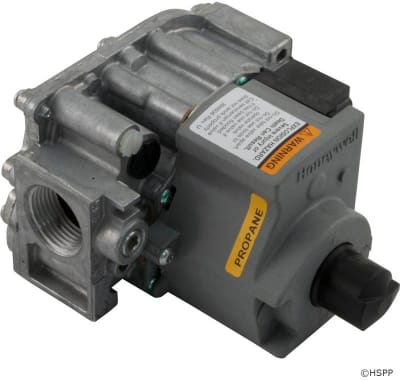

LP Gas Valve
Jandy #R0494600
LP Gas Valve
$400.99
Out of Stock
4
High Limits Set
Teledyne Laars #R0457200
High Limits Set
$107.99150
Add to Cart
6
Flame Sensor Rod
Jandy #R0458601
Flame Sensor Rod
$93.49141.5
Add to Cart
7
Main Burner Assembly (Each)
Teledyne Laars #R0469800
Main Burner Assembly (Each)
$40.8451.5
Add to Cart
11
Universal Control User Interface - Legacy LRZE
Jandy #R3008800
Universal Control User Interface - Legacy LRZE
$537.99638.5
Out of Stock
12
Universal Control w/ Bezel
Teledyne Laars #R0496700
Universal Control w/ Bezel
$840.99998
Out of Stock
14
Transformer 115V-220V/24V
Teledyne Laars #R0061100
Transformer 115V-220V/24V
$94.9968.63
Add to Cart
15
Temperature Sensor with Sleeve & Gasket
Teledyne Laars #R0456500
Temperature Sensor with Sleeve & Gasket
$127.99177
Add to Cart
16
Salt Temperature Sensor
Teledyne Laars #R0477300
Salt Temperature Sensor
$141.99183.5
Out of Stock
17
Temperature Sensor Gasket
Teledyne Laars #R0456600
Temperature Sensor Gasket
$9.9911
Out of Stock
18
Sensor Retainer Nut
Jandy #R0523900
Sensor Retainer Nut
$14.99
Add to Cart
19
Cap Sensor/Press Switch w/ O-Ring
Teledyne Laars #R0455400
Cap Sensor/Press Switch w/ O-Ring
$49.9967
Add to Cart
20
2 PSI Pressure Switch
Teledyne Laars #R0013200
2 PSI Pressure Switch
$145.99172.5
Add to Cart
22
Water Pressure Switch Tubing
Teledyne Laars #R0483600
Water Pressure Switch Tubing
$99.99134.5
Out of Stock
23
High Limit Switch Harness R0457400
Teledyne Laars #R0457400
High Limit Switch Harness R0457400
$58.9981.5
Add to Cart
25
High Limit 130°F
Teledyne Laars #R0457300
High Limit 130°F
$54.99
Add to Cart
26
High-limit Switch, 150° F
Teledyne Laars #R0023000
High-limit Switch, 150° F
$54.9976
Add to Cart
27
Ignition Control R0491300
Teledyne Laars #R0491300
Ignition Control R0491300
$163.99209.5
Add to Cart
28
Fusible Link
Teledyne Laars #R0012200
Fusible Link
$17.99
Add to Cart
29
Fusible Link Bracket R0337200
Teledyne Laars #R0337200
Fusible Link Bracket R0337200
$16.9927
Add to Cart
37
250BTU Adapter Plate
Teledyne Laars #R0478303
250BTU Adapter Plate
$23.9937
Out of Stock
44
Coupling Nut Kit w/ O-Ring (Set of 2)
Teledyne Laars #R0454000
Coupling Nut Kit w/ O-Ring (Set of 2)
$68.9996.5
Add to Cart
45
By-Pass Assembly w/ O-RIng
Teledyne Laars #R0453700
By-Pass Assembly w/ O-RIng
$63.9988.5
Add to Cart
46
By-Pass Spring R0453900
Teledyne Laars #R0453900
By-Pass Spring R0453900
$49.9967
Add to Cart
50
LRZE 125 Bronze Bypass Assembly
Jandy #R0476801
LRZE 125 Bronze Bypass Assembly
$101.99
Out of Stock
50
LRZE 175 Bronze Bypass Assembly
Jandy #R0476802
LRZE 175 Bronze Bypass Assembly
$104.99123
Out of Stock
50
LRZE 250 Bronze Bypass Assembly
Jandy #R0476803
LRZE 250 Bronze Bypass Assembly
$101.99123
Out of Stock
50
LRZE 325 Bronze Bypass Assembly
Jandy #R0476804
LRZE 325 Bronze Bypass Assembly
$101.99
Out of Stock
50
LRZE 400 Bronze Bypass Assembly
Jandy #R0476805
LRZE 400 Bronze Bypass Assembly
$101.99
Out of Stock
51
LRZE 125 Bronze Bypass Spring
Jandy #R0476901
LRZE 125 Bronze Bypass Spring
$15.99
Out of Stock
51
LRZE 175 Bronze Bypass Spring
Jandy #R0476902
LRZE 175 Bronze Bypass Spring
$15.99
Out of Stock
51
LRZE 250 Bronze Bypass Spring
Jandy #R0476903
LRZE 250 Bronze Bypass Spring
$23.99
Out of Stock
51
LRZE 325 Bronze Bypass Spring
Jandy #R0476904
LRZE 325 Bronze Bypass Spring
$15.99
Out of Stock
52
By-Pass Valve Gasket
Teledyne Laars #R0011400
By-Pass Valve Gasket
$9.9914.5
Add to Cart
53
Bronze Heat Exchange Hardware Kit
Jandy #R0477200
Bronze Heat Exchange Hardware Kit
$110.99
Out of Stock
54
Bronze Temperature Sensor Mounting Bracket
Jandy #R0477400
Bronze Temperature Sensor Mounting Bracket
$19.9921.5
Out of Stock
56
Bronze Flange & Gasket Kit
Jandy #R0461500
Bronze Flange & Gasket Kit
$280.99
Out of Stock
57
Bronze Flange Bolts
Jandy #R0477800
Bronze Flange Bolts
$18.99
Out of Stock
58

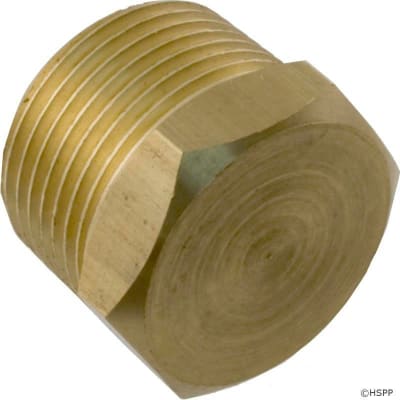

¾" Bronze NPT Plug
Jandy #R0477900
¾" Bronze NPT Plug
$28.9933.5
Out of Stock
59
Bronze Header Drain Plug
Jandy #R0478000
Bronze Header Drain Plug
$18.99
Out of Stock
70
2" Sealing Grommet
Jandy #R0460300
2" Sealing Grommet
$13.99
Out of Stock
71

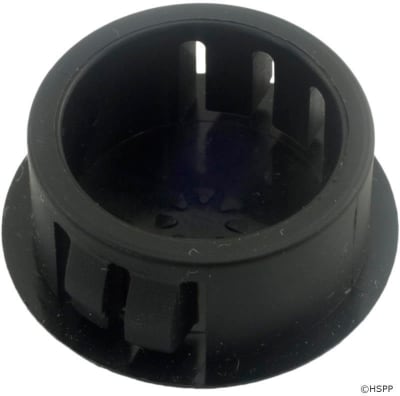

7/8" Button Plug
Jandy #R0491100
7/8" Button Plug
$20.99
Out of Stock
26A
Temperature Sensor Plug
Teledyne Laars #R0456800
Temperature Sensor Plug
$20.9925.5
Add to Cart
38B
Vent Fusible Link - 240°
Jandy #R0524300
Vent Fusible Link - 240°
$21.99
Add to Cart
