Diagram

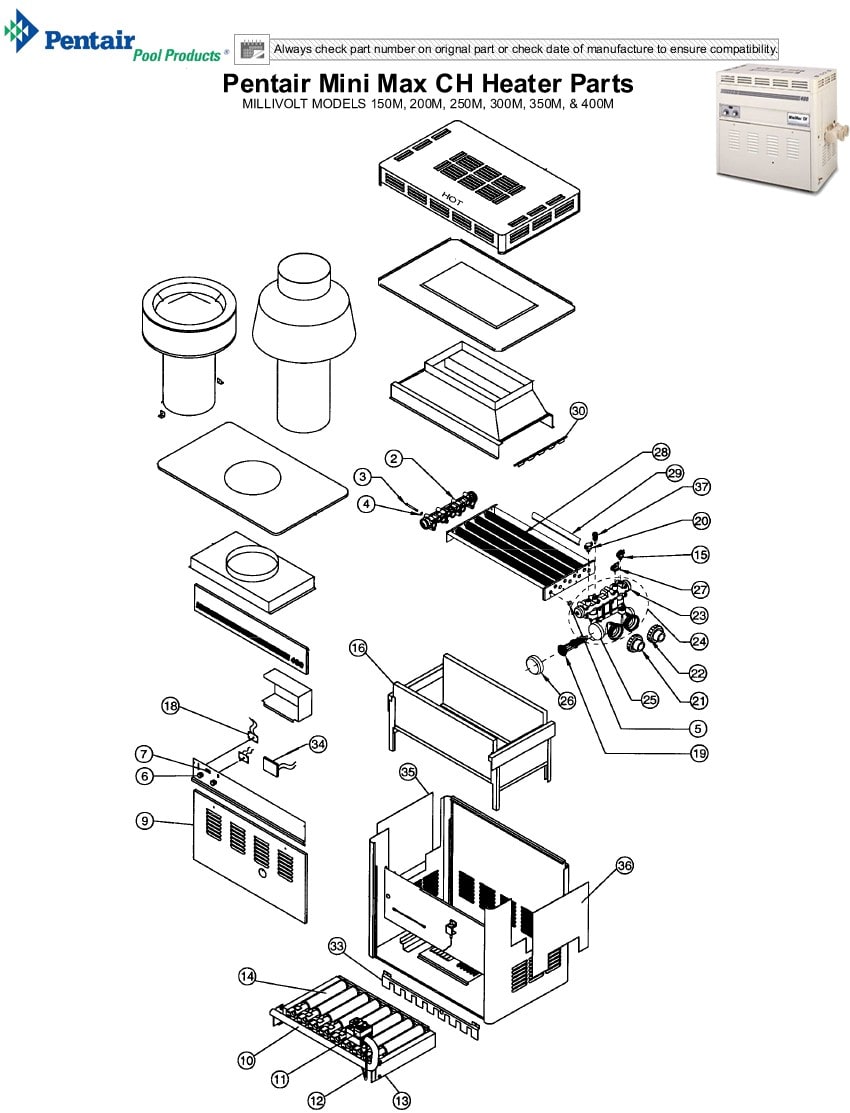

Pentair Mini Max CH Heater Parts

Pentair Mini Max CH Heater Parts

2
Manifold Return Assembly
Pentair #471991
Manifold Return Assembly
$71.99164
Out of Stock
3
Bolt, Heat Exchanger 5/16"x2"
Pentair #471622
Bolt, Heat Exchanger 5/16"x2"
$14.9920
Out of Stock
4
Washer 3/8"x13/16"
Pentair #072184
Washer 3/8"x13/16"
$19.99
Add to Cart
5
Tube Seal Gasket
Pentair #70951
Tube Seal Gasket
$6.9910.5
Add to Cart
6
Thermostat Knob For Minimax
Pentair #470184
Thermostat Knob For Minimax
$19.9927
Out of Stock
7
Genuine OEM Single Pole, Double Throw Rocker Switch
Pentair #470186
Genuine OEM Single Pole, Double Throw Rocker Switch
$19.9930
Out of Stock
10
Manifold Burner 150 Model
Pentair #070256
Manifold Burner 150 Model
$44.9978.5
Out of Stock
10
Manifold Burner 250 Model
Pentair #70257
Manifold Burner 250 Model
$45.9986
Out of Stock
11
Gas Valve Natural Millivolt
Pentair #75457
Gas Valve Natural Millivolt
$296.99457
Out of Stock
11
Propane Gas Valve, Millivolt
Pentair #075458
Propane Gas Valve, Millivolt
$361.99445.5
Out of Stock
12
Pilot Tube Millivolt 150/200
Pentair #76084
Pilot Tube Millivolt 150/200
$139.99182.5
Out of Stock
12
Pilot Tube Millivolt 250/300
Pentair #076085
Pilot Tube Millivolt 250/300
$39.9956
Out of Stock
12
Pilot Tube Millivolt 350/400
Pentair #76086
Pilot Tube Millivolt 350/400
$39.9953.5
Out of Stock
14
Minimax Burner
Pentair #70230
Minimax Burner
$209.99257.5
Out of Stock
14
Burner w/ Pilot Bracket
Pentair #470550
Burner w/ Pilot Bracket
$65.9989.5
Out of Stock
15
Pressure Switch For Minimax
Pentair #473605
Pressure Switch For Minimax
$78.99101
Add to Cart
18
Potentiometer for Millivolt Heaters
Pentair #471678
Potentiometer for Millivolt Heaters
$29.9941.5
Out of Stock
19
Flow Valve Assembly For Minimax
Pentair #471750
Flow Valve Assembly For Minimax
$130.99214.9
Out of Stock
21
2" Bulkhead Adapter
Pentair #471441
2" Bulkhead Adapter
$22.9952.5
Out of Stock
22
Adapter Bulkhead Ring Minimax
Pentair #274440
Adapter Bulkhead Ring Minimax
$25.9936
Out of Stock
23
Main Manifold Assembly
Pentair #471993
Main Manifold Assembly
$50.99143
Out of Stock
24
Main Header Assembly
Pentair #471992
Main Header Assembly
$296.99470.5
Out of Stock
25
Main Manifold Bottom
Pentair #471419
Main Manifold Bottom
$168.99379.5
Out of Stock
27
150F High Limit Thermostat
Pentair #471694
150F High Limit Thermostat
$44.9975.8
Add to Cart
28
Heat Exchanger w/o Heads 150,000 BTU
Pentair #472131
Heat Exchanger w/o Heads 150,000 BTU
$441.99
Out of Stock
28
Heat Exchanger Only CH200
Pentair #472132
Heat Exchanger Only CH200
$552.99795
Out of Stock
28

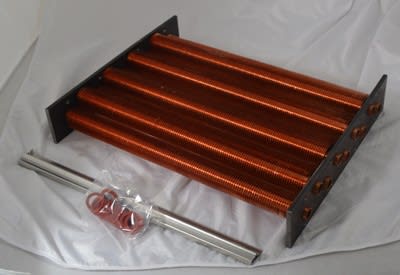

Heat Exchanger Only CH250
Pentair #472133
Heat Exchanger Only CH250
$528.99649.5
Out of Stock
28
Heat Exchanger without Head CH300
Pentair #472134
Heat Exchanger without Head CH300
$605.99974.5
Out of Stock
28
Heat Exchanger without Heads 400,000 BTU
Pentair #472136
Heat Exchanger without Heads 400,000 BTU
$775.99
Out of Stock
28
Heat Exchanger w/ Heads CH150
Pentair #472169
Heat Exchanger w/ Heads CH150
$614.99
Out of Stock
28
Heat Exchanger w/ Heads CH250
Pentair #472167
Heat Exchanger w/ Heads CH250
$592.99896
Out of Stock
29
MiniMax 350K Heat Exchanger Baffle CH150/CH350
Pentair #70277
MiniMax 350K Heat Exchanger Baffle CH150/CH350
$21.9933.5
Out of Stock
29
Baffle for 400,000 BTU Heater
Pentair #070278
Baffle for 400,000 BTU Heater
$20.9932.5
Out of Stock
34
Electronic Thermostat, Millivolt
Pentair #471677
Electronic Thermostat, Millivolt
$134.99173.5
Out of Stock
