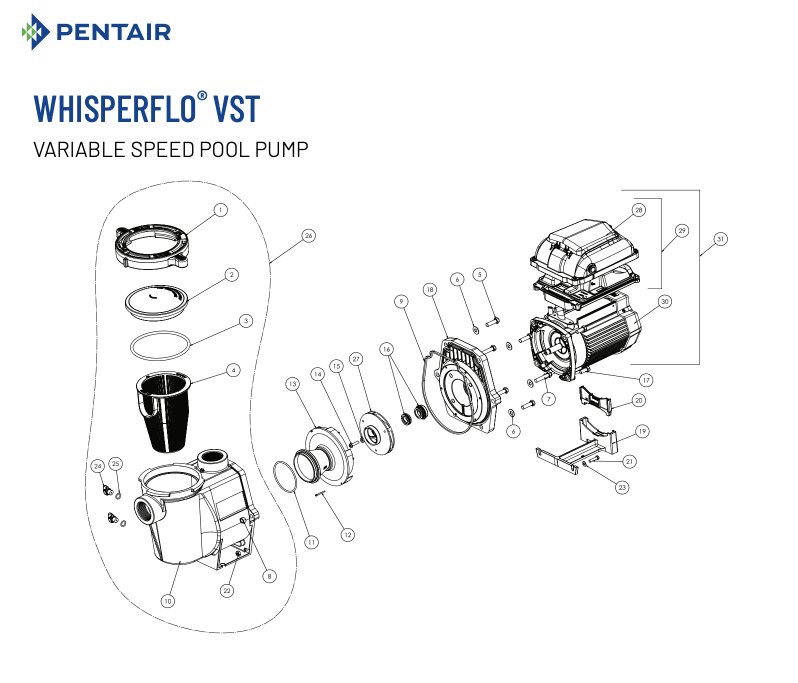

Pentair Whisperflo VS & VST Pool Pump Parts Diagram

Pentair Whisperflo VS & VST Pool Pump Parts Diagram

1
Lid Clamp, Cam & Ramp
Pentair #357199Z
Lid Clamp, Cam & Ramp
$49.9959.9
Add to Cart
1
Seal Plate Gasket, Black
Sta-Rite #357100
Seal Plate Gasket, Black
$10.9917
Out of Stock
3
Lid O-Ring, 5-3/4" ID
Pentair #350013z
Lid O-Ring, 5-3/4" ID
$7.9917.47
Add to Cart
5
Hex Bolt
Pentair #070430
Hex Bolt
$10.99
Add to Cart
6
Washer 3/8"x13/16"
Pentair #072184
Washer 3/8"x13/16"
$3.90
Add to Cart
9
Seal Plate Gasket, Black
Sta-Rite #357100
Seal Plate Gasket, Black
$10.9917
Out of Stock
10
Volute Casing WFE, Almond
Pentair #350015Z
Volute Casing WFE, Almond
$218.99
Add to Cart
11
O-Ring, Diffuser WFE
Pentair #355227z
O-Ring, Diffuser WFE
$6.99
Add to Cart
12
Set Screw 4-40 1-1/8" (Each)
Pentair #071660z
Set Screw 4-40 1-1/8" (Each)
$7.9915.8
Add to Cart
16
Seal Kit WFE/Intelliflo
Pentair #071734S
Seal Kit WFE/Intelliflo
$34.9957.8
Add to Cart
19
Pump Foot Base
Pentair #070927
Pump Foot Base
$43.3756
Add to Cart
20
Foot Insert, Whisperflo
Pentair #070929
Foot Insert, Whisperflo
$27.9938
Out of Stock
21
Cap Screw, Hex Head
Pentair #071657z
Cap Screw, Hex Head
$6.9912.9
Out of Stock
24
Drain Plug Knob
Pentair #071131z
Drain Plug Knob
$9.99
Add to Cart
28
VST Motor Drive Cover
Pentair #356279
VST Motor Drive Cover
$287.99334.99
Out of Stock
29
Superflo VST Motor Drive Kit
Pentair #356282
Superflo VST Motor Drive Kit
$813.99847.99
Out of Stock
