Pentair Superflo VS Pump Parts Diagram

Pentair Superflo VS Pump Parts Diagram

1
SuperFlo VS Drive Cover
Pentair #353123
SuperFlo VS Drive Cover
$322.99390.8
Out of Stock
3
Motor without Drive
Pentair #353134S
Motor without Drive
$541.99
Add to Cart
5
SuperFlo Seal Plate
Pentair #356012Z
SuperFlo Seal Plate
$80.99
Add to Cart
5
Superflo VST Sealplate
Pentair #356071Z
Superflo VST Sealplate
$85.99107.99
Add to Cart
6
Superflo Bracket O-Ring
Pentair #355619Z
Superflo Bracket O-Ring
$16.99
Add to Cart
10
Superflo Pump Base
Pentair #350094
Superflo Pump Base
$96.99129
Add to Cart
11
Drain Plug Knob
Pentair #071131z
Drain Plug Knob
$9.99
Add to Cart
13
Superflo Pump Housing, Volute
Pentair #350089Z
Superflo Pump Housing, Volute
$273.99
Add to Cart
13

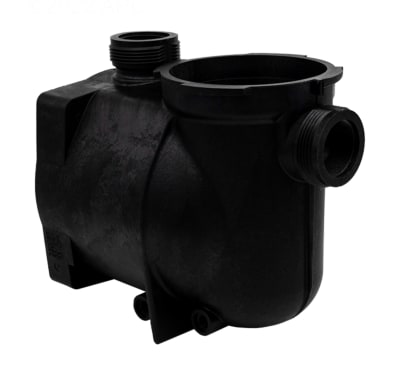

Black SuperMax Volute Housing
Sta-Rite #351089Z
Black SuperMax Volute Housing
$262.99297.99
Add to Cart
14
O-Ring, 2-357
Pentair #357255
O-Ring, 2-357
$10.991.22
Out of Stock
19
Washer 3/8"x13/16"
Pentair #072184
Washer 3/8"x13/16"
$3.90
Add to Cart
20
Screw, 3/4-16 x 2-1/4 Hex Head, 4 Req.
Pentair #355621
Screw, 3/4-16 x 2-1/4 Hex Head, 4 Req.
$8.1617
Out of Stock
21
Hex Head Screw for Diffuser
Pentair #355334
Hex Head Screw for Diffuser
$7.992.97
Add to Cart
22
Impeller Locking Screw
Pentair #355389
Impeller Locking Screw
$9.9914.5
Add to Cart
24
Cap Screw Hex Head 3/8"-16x1"
Sta-Rite #U30-74SS
Cap Screw Hex Head 3/8"-16x1"
$12.9915.5
Add to Cart
25
Superflo Pump Nut
Pentair #350092
Superflo Pump Nut
$21.9932.5
Out of Stock
28
Union Kit, Superflo / SuperMax
Pentair #350157
Union Kit, Superflo / SuperMax
$75.99109
Out of Stock
