#UQC1102

Century Energy Efficient Motor, Up Rated, 1 HP, 115/230v

Century UQC1102

Write a Review Ask a question

Starting at $ /mo with . Prequalify now

In Stock
Rewards
Earn 322 points | Join or Sign In
Add product protection offered by
Quick Overview

1 Horsepower, Up-Rate, Square Flange, Energy Efficient Motor. 115/230v

Used with: Sta-Rite Max-E-Glas, Dura-Glas I & II, Sta-Rite Max-E-Pro, Sta-Rite Dyna-Max , Dyna-Glas.

Key Features:

  • Sealed Ball Bearings

  • Capacitor Start

  • Open Dripproof

  • 303 Stainless Steel Shaft

  • 50°C Ambient

  • Energy Efficient

  • UL 1081 Design

  • Note: NOT California Title 20 Compliant.

Questions? Contact our pool professionals:
Frequently Purchased Together
Nothing is already selected
Product Overview

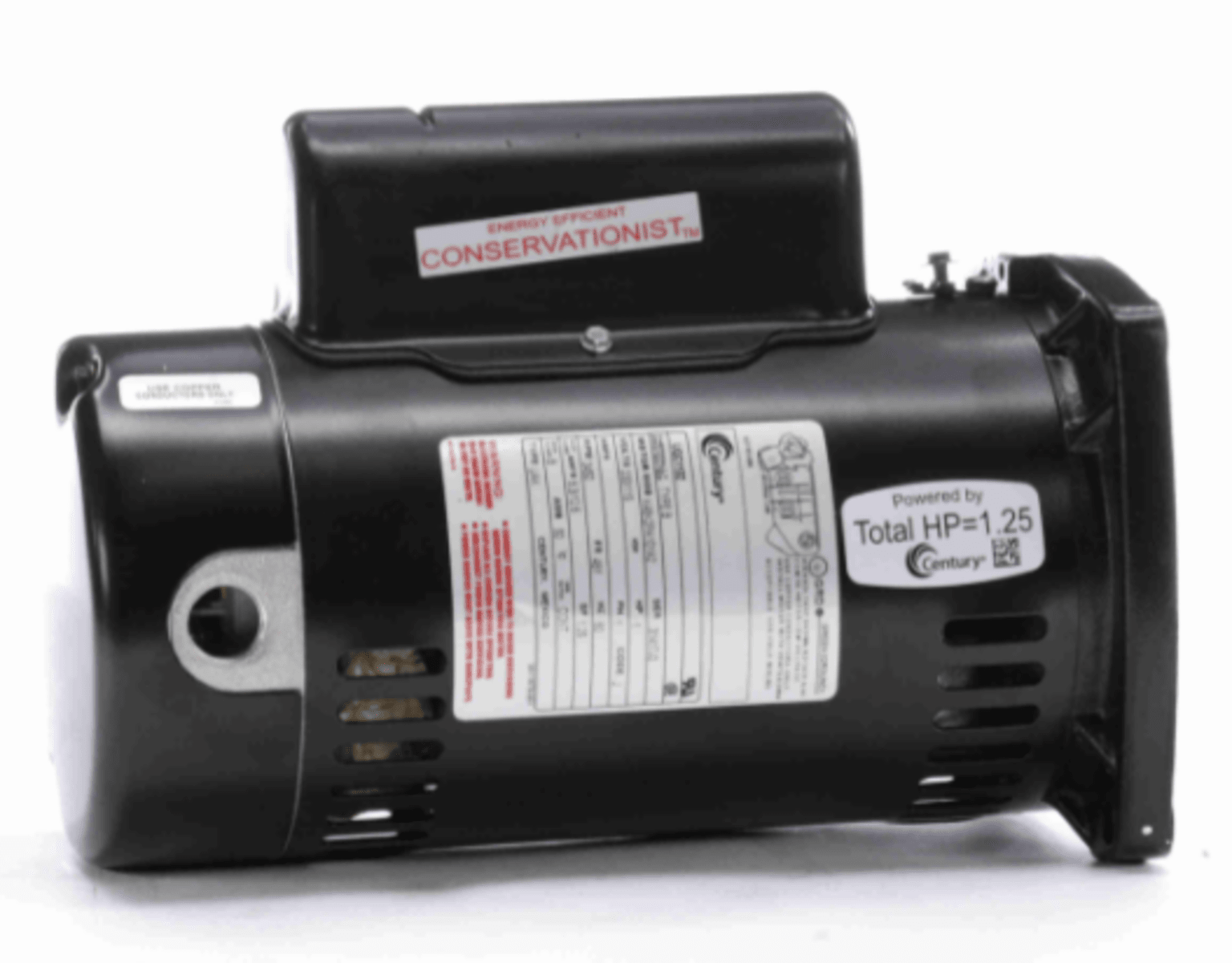

Side view

Nameplate Specs:

  • Phase: 1

  • Output HP: 1 Hp

  • Output KW: 0.75 kW

  • Voltage: 230/115 V

  • Speed: 3450 rpm

  • Service Factor: 1.25

  • Frame: 48Y

  • Enclosure: Open Drip Proof

  • Thermal Protection: Automatic

  • Ambient Temperature: 50 °C

  • Frequency: 60 Hz

  • Current: 6.3/12.6 A

  • Duty: Continuous

  • Insulation Class: B

  • UL: Recognized

  • CSA: Y

  • Number of Speeds: 1

Technical Specs:

  • Electrical Type: Capacitor Start Capacitor Run

  • Poles: 2

  • Rotation: Counterclockwise Pump End

  • Mounting: Round

  • Motor Orientation: Horizontal

  • Drive End Bearing: Ball

  • Opp Drive End Bearing: Ball

  • Frame Material: Rolled Steel

  • Shaft Type: 1/2" Threaded

  • Overall Length: 11.94"

  • Frame Length: 8.06"

  • Shaft Diameter: 0.625"

  • Shaft Extension: 0.906"

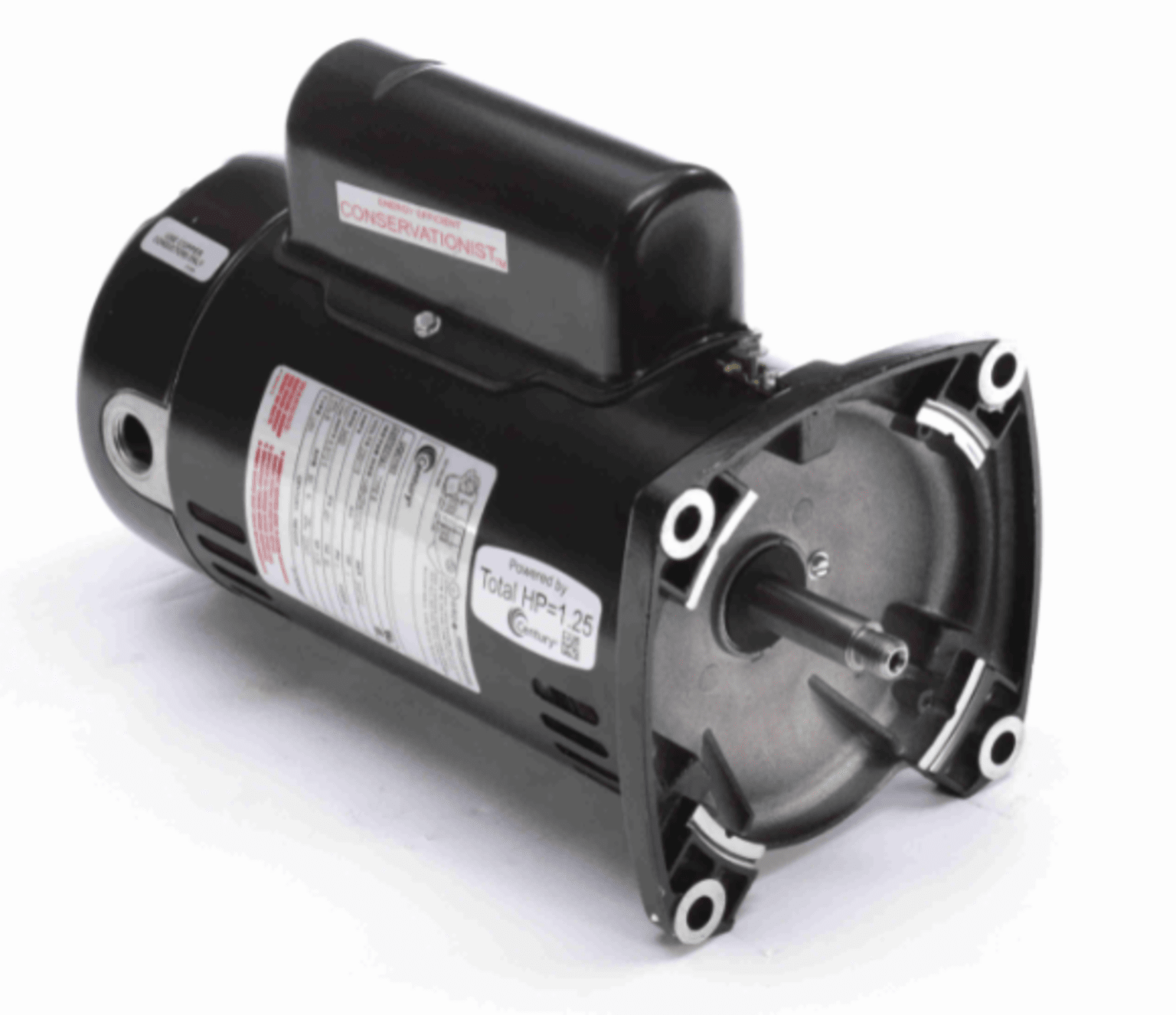

Front view

California Title 20 Compliant Options

Century Motors currently manufactures six pool pump replacement motor models that conform to the CEC standards: V-Green EVO Models EVC130, EVC165, EVC225, EVQ130, EVQ165, and EVQ225. These models are designed to meet the energy efficiency standards set forth by the CEC, making them an ideal choice for pool owners in California who want to reduce their energy consumption and environmental impact.

In addition to helping the environment, complying with CEC regulations can also help pool owners save money on their energy bills. By choosing an energy-efficient pool pump and motor, pool owners can reduce their energy consumption and lower their energy costs over time.

Specs & Details

Product Name Energy Efficient Motor, Up Rated, 1 HP, 115/230v
Manufacturer Part Number UQC1102
Sku AOS-60-5041
UPC 786674033062
Manufacturer
Century
Century
75%% of 100
Discover Century, a Regal Brand, your ultimate destination for motors tailored to meet every leisure water application imaginable! Our extensive range ... Show More Discover Century, a Regal Brand, your ultimate destination for motors tailored to meet every leisure water application imaginable! Our extensive range includes NEMA 48 and 56 frame motors designed specifically for spas, in-ground pools, above ground pools, pool cleaners, and jetted tubs, catering to all your leisure water pump requirements. Century is your go-to source for cutting-edge electric pump motor innovations. Show Less
