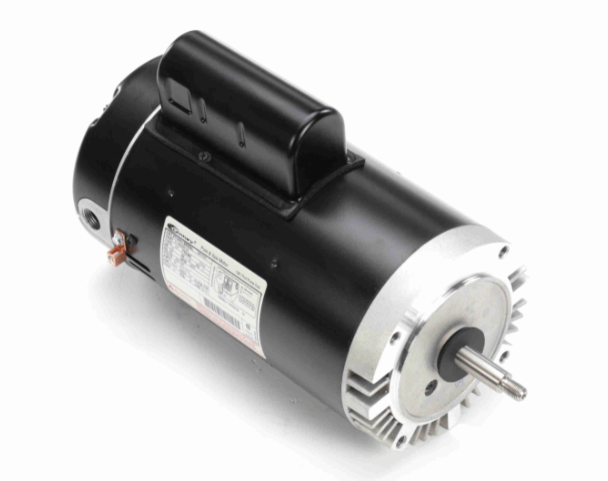

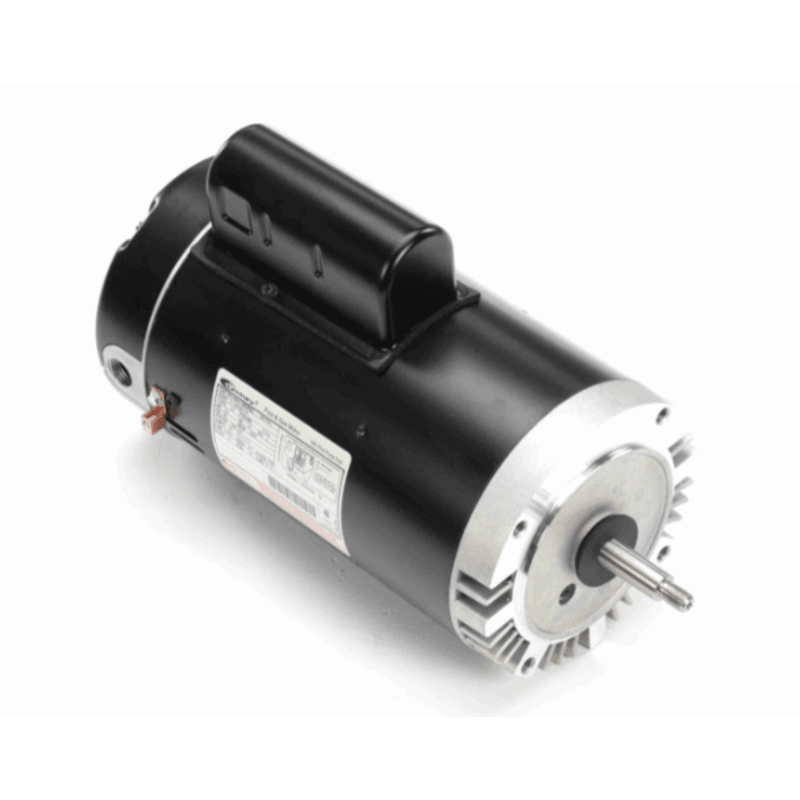

Century Energy Efficient Pump Motor, Full Rated, 3HP, 230v

Century ST1302V1

Write a Review Ask a question

Starting at $ /mo with . Prequalify now

In Stock
Rewards
Earn 549 points | Join or Sign In
Add product protection offered by
Quick Overview

Energy Efficient Pump Motor, Full Rated, 3HP, 230v 56J frame. Used with: Jandy HHP & HHPU series, Hayward RS Series, Hayward Super II SP3000 Series.

Key Features:

  • Sealed Ball Bearings

  • Capacitor Start-Capacitor Run

  • Sealed Switch Design

  • 50°C Ambient

  • 303 Stainless Shaft

  • UL 1081 Design

  • 304 Bearing Shaft End

  • Threaded Shaft

  • Energy Efficient

  • Note: NOT California Title 20 Compliant.

Questions? Contact our pool professionals:
Frequently Purchased Together
Nothing is already selected
Product Overview

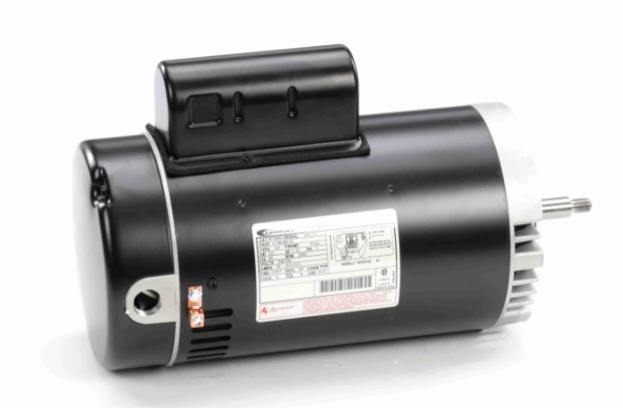

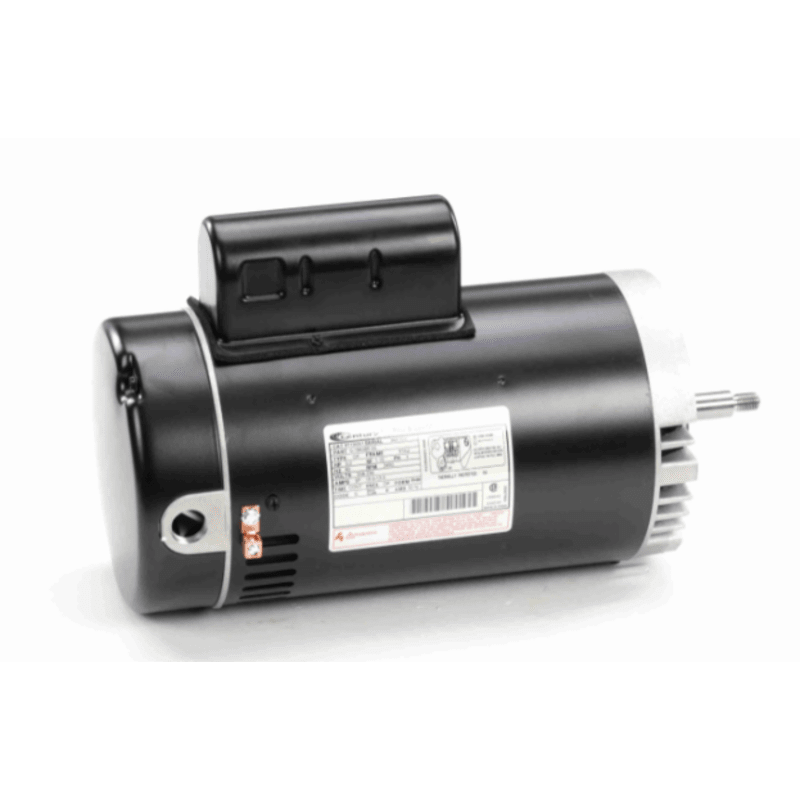

Side view

Nameplate Specs:

  • Phase: 1

  • Output HP: 3.0 Hp

  • Output KW: 2.2 kW

  • Voltage: 208-230 V

  • Speed: 3450 rpm

  • Service Factor: 1.15

  • Frame: Y56J

  • Enclosure: Drip Proof

  • Thermal Protection: Thermally Protected

  • Ambient Temperature: 50 °C

  • Frequency: 60 Hz

  • Current: SF 15.0-13.3 A

  • Duty: Continuous

  • Insulation Class: B

  • UL: Recognized

  • CSA: Y

  • Number of Speeds: 1

Technical Specs:

  • Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage

  • Poles: 2

  • Rotation: Counterclockwise Pump End

  • Mounting: C Face

  • Motor Orientation: Horizontal

  • Drive End Bearing: Ball

  • Opp Drive End Bearing: Ball

  • Frame Material: Rolled Steel

  • Shaft Type: Threaded

  • Overall Length: 14.86"

  • Frame Length: 9.25"

  • Shaft Diameter: 0.625"

  • Shaft Extension: 2.53"

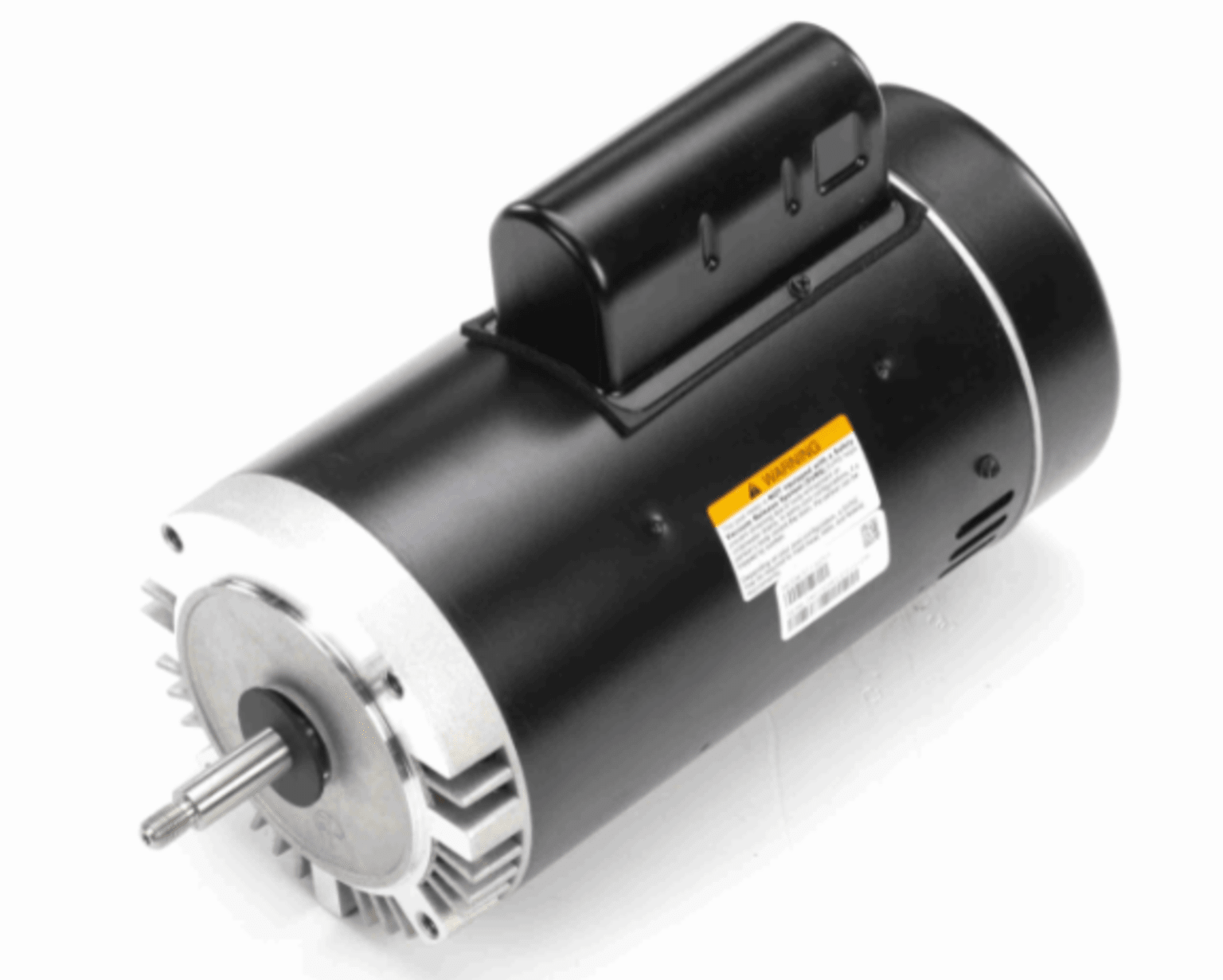

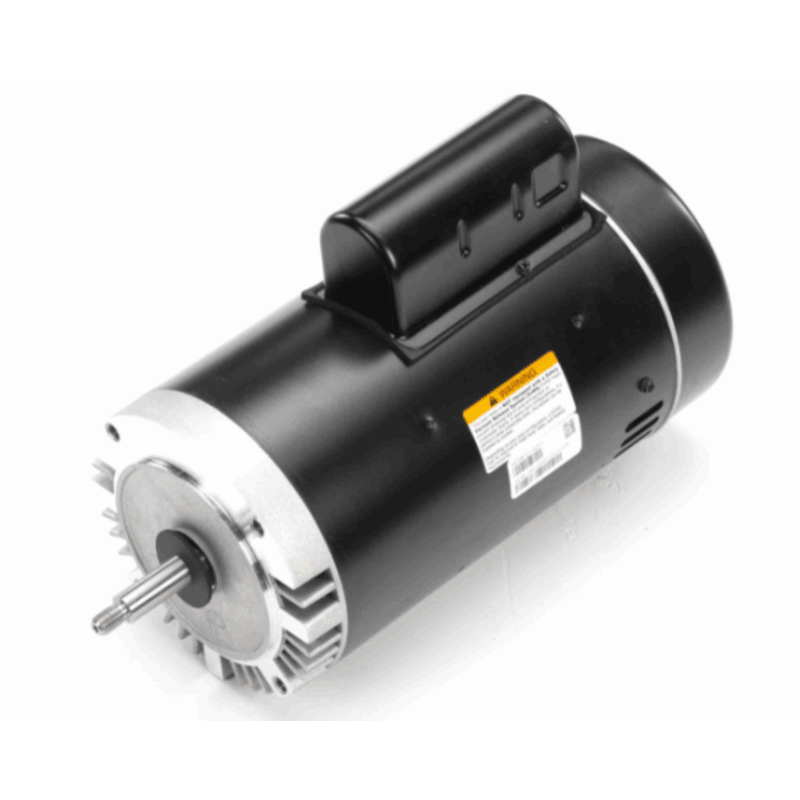

Front view

Specs & Details

Product Name Energy Efficient Pump Motor, Full Rated, 3HP, 230v
Manufacturer Part Number ST1302V1
Sku AOS-60-5068
UPC 786674003836
Manufacturer
Century
Century
75%% of 100
Discover Century, a Regal Brand, your ultimate destination for motors tailored to meet every leisure water application imaginable! Our extensive range ... Show More Discover Century, a Regal Brand, your ultimate destination for motors tailored to meet every leisure water application imaginable! Our extensive range includes NEMA 48 and 56 frame motors designed specifically for spas, in-ground pools, above ground pools, pool cleaners, and jetted tubs, catering to all your leisure water pump requirements. Century is your go-to source for cutting-edge electric pump motor innovations. Show Less
