Product Out of Stock
Sorry, this product is temporarily out of stock.
Hide 10" x 10" Concrete Skimmer Cover Kit
Hide HCON10-1.6
Hide HCON10-1.6 10" x 10" Concrete Skimmer Cover Kit.
10×10″ square by 1 5/8″ concrete depth.
Suits concrete wet-pour directly into the cover.
Removable concrete components for use with tile and stone.
The maximum underside access opening is 9″ square.

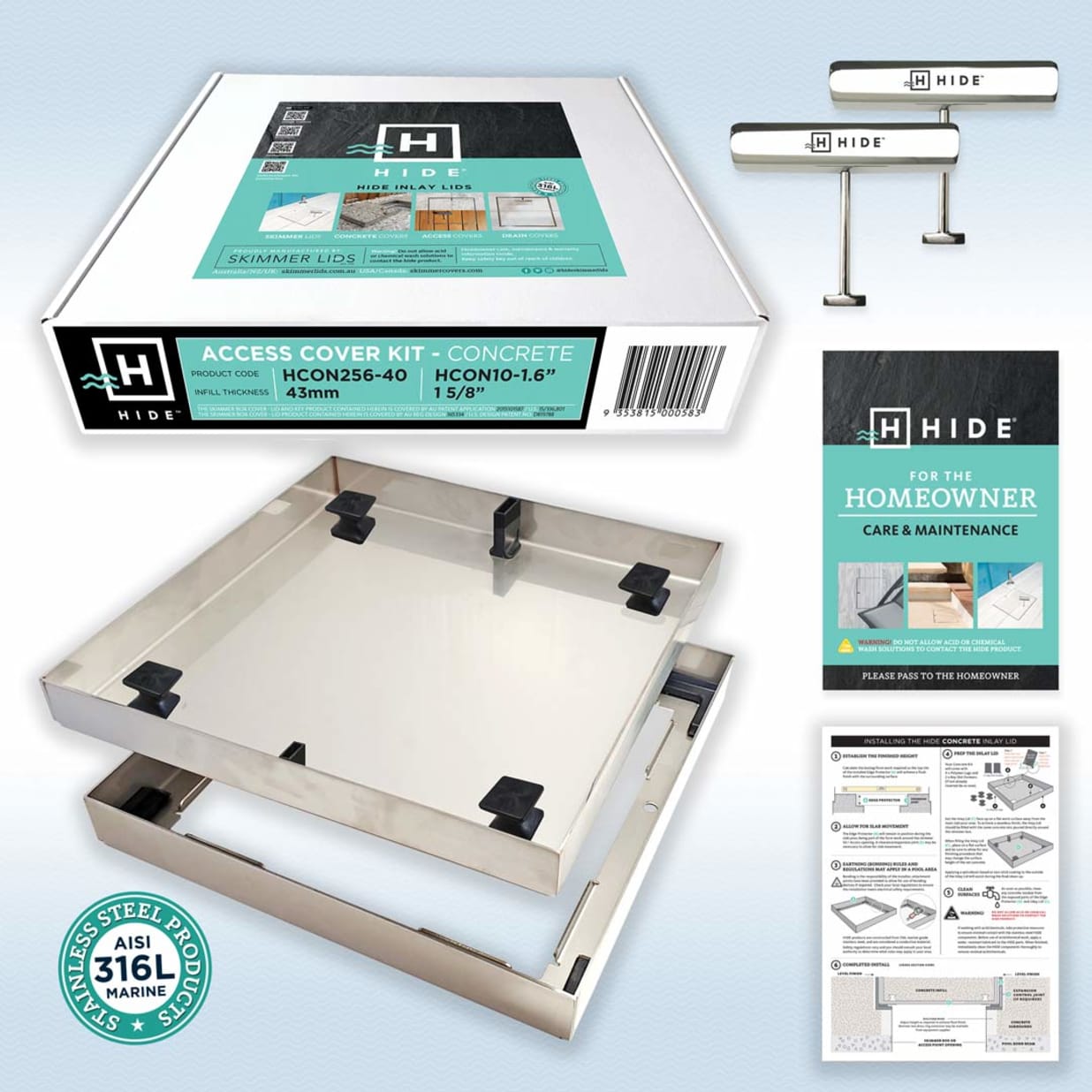

Product Overview
1. Safety Keys
Stainless steel keys enable the installed HIDE lid to be safely and easily opened/closed. Without the keys the lid cannot be opened, making it very safe around children.

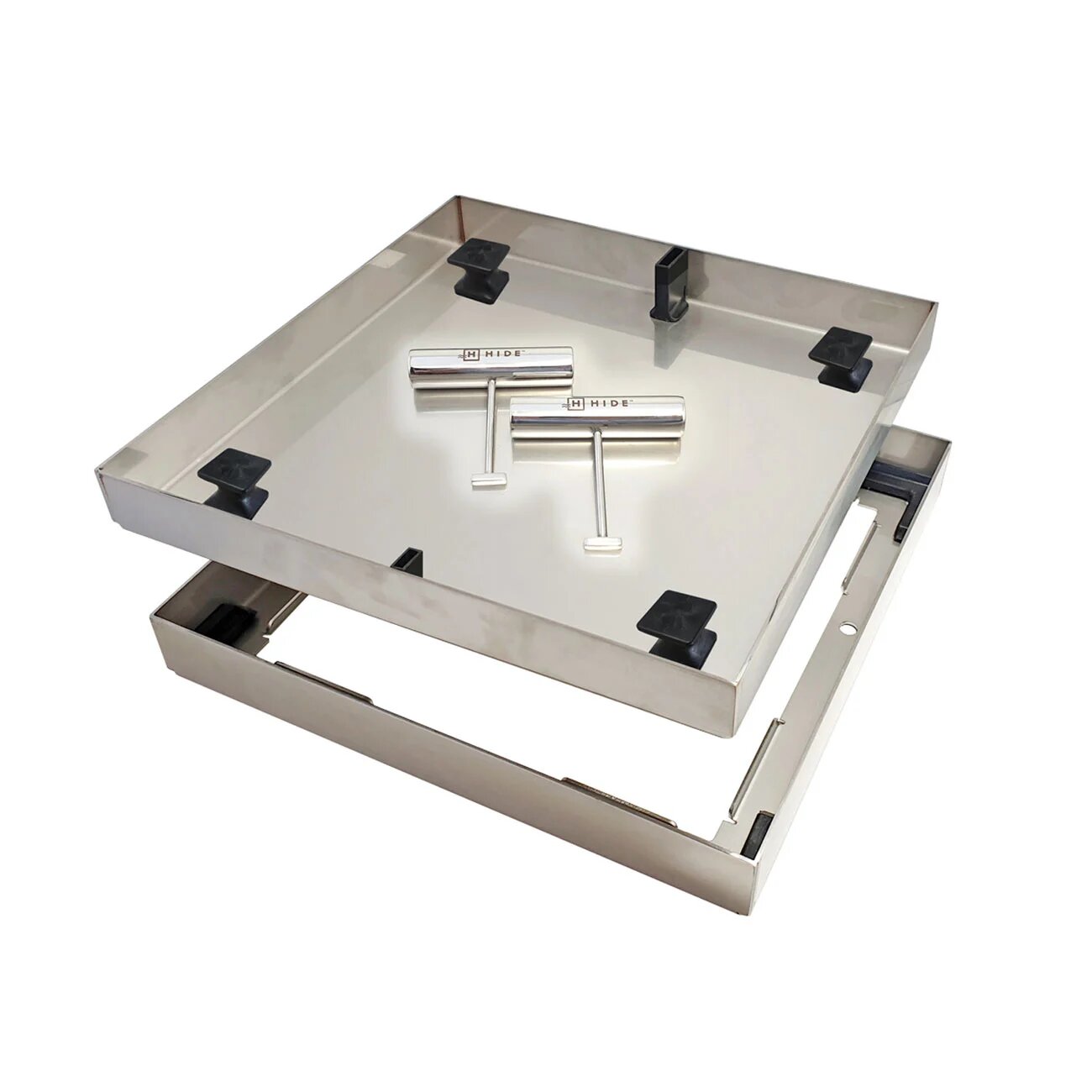

2. Concrete components
4 x Lugs and 2 x Key Slot Formers for concrete covers only. These are removable when a dual infill application is required. Simple snap into place and you have all the makings of the strongest concrete cover on the market.
3. Inlay Lid
A solid stainless steel tray which holds the Inlay (landscape) materials you’ve chosen e.g. tile, paver, concrete, decking, etc.
4. Edge Protector
A stainless steel frame inserted into a recess within the landscaped area. It protects the copping/surrounds from chipping/breakage when the inlay lid is opened/closed.
The Inlay Lid and the Edge Protector work together to provide enhanced airflow for the skimmer pump.
5. Documents
Contractor installation instructions, homeowner information and warranty.
Specs & Details
| Product Name | 10" x 10" Concrete Skimmer Cover Kit |
| Manufacturer Part Number | HCON10-1.6 |
| Sku | SKD-25-1013 |
| UPC | 9353815000583 |
- Install Guide|
