HAYWARD #	IDXLIGN1930

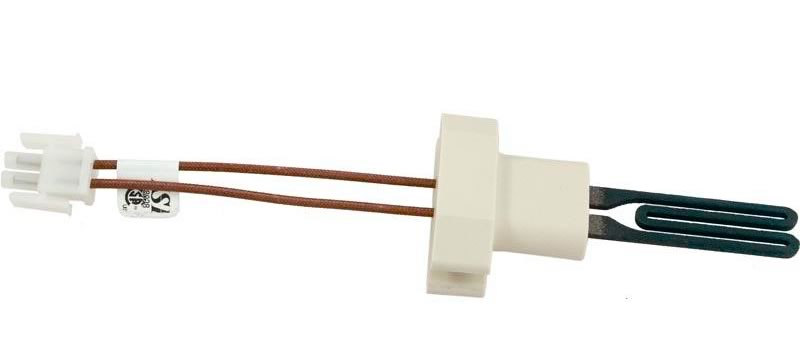

GENERAL DESCRIPTION: THIS IS THE HOT SURFACE IGNITOR USED IN THE H SERIES LOW NOX.

INCLUDES: IGNITOR AND PLUG

MATERIAL: BASIC MATERIAL IS CERAMIC THE HOT SURFACE PORTION IS IN A SOMEWHAT "M" SHAPE

THIS IGNITOR HAS A 2 PIN AMP STYLE PLUG IN. THIS IS LOCATED AT THE END OF THE 2 - 5" WIRES WHICH EXTEND FROM THE IGNITOR BODY.

LENGTH: ABOUT 9-1/2" (FROM PLUG TO OPPOSITE END)
LENGTH: 4-3/8" (NOT INCLUDING WIRES AND PLUG)
LENGTH: 2-9/16" ("M" SHAPED HOT SURFACE PORTION ONLY)
WIDTH: 2-1/4"
FRONT TO BACK: 1"
