Waterway 310-4010 Impeller 1.5HP (Hi Flo)

Rating:
100% of 100
$15.20
List Price: $17.00
You Save: $1.80 (11%)
Free Shipping Over $75.00
100+ In Stock
- +

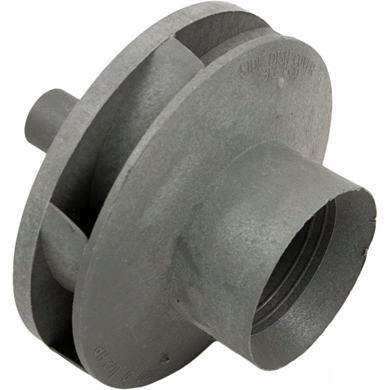

This Is a 1-1/2 HP Impeller Used On The Waterway Hi Flo Pump, Gray Plastic Impeller 310-4010

This Has An Extended Inlet Opening And At The Shaft Side There Is Small Raised Ring Around The Shaft The Ring Is 5/16" Tall And Has An Outside Diameter Of 1-9/16" This Also Has A Small Ridge Around The Outside Diameter Of The Impeller On The Shaft Side.

Number Of Vanes 6

Outside Diameter: 3-5/8"

Thickness: 7/16" (Inside Vane Thickness At Outside Edge Of Impeller)

Thickness: 13/16" (Outside Vane Thickness At Outside Edge Of Impeller)

Front To Back: 3-3/16" (From End Of Shaft To Front On Intake)

Inlet Inside Diameter: 1-1/2"
Inlet Outside Diameter: 1-7/8"

Inlet Length: 1"
This Is The Approximate Length Of The Extended Inlet Portion Of The Impeller

MARKINGS: "SIDE DISH COVER 313-1530" is molded on the inlet side. "ASSY 310-4010-D - 1 1/2 HP" is also molded on the inlet side

Specs
More Information
Brand Waterway
Product Name Impeller 1.5HP (Hi Flo)
Manufacturer Part Number 310-4010
Obsolete No
SKU WWP-85-8034
