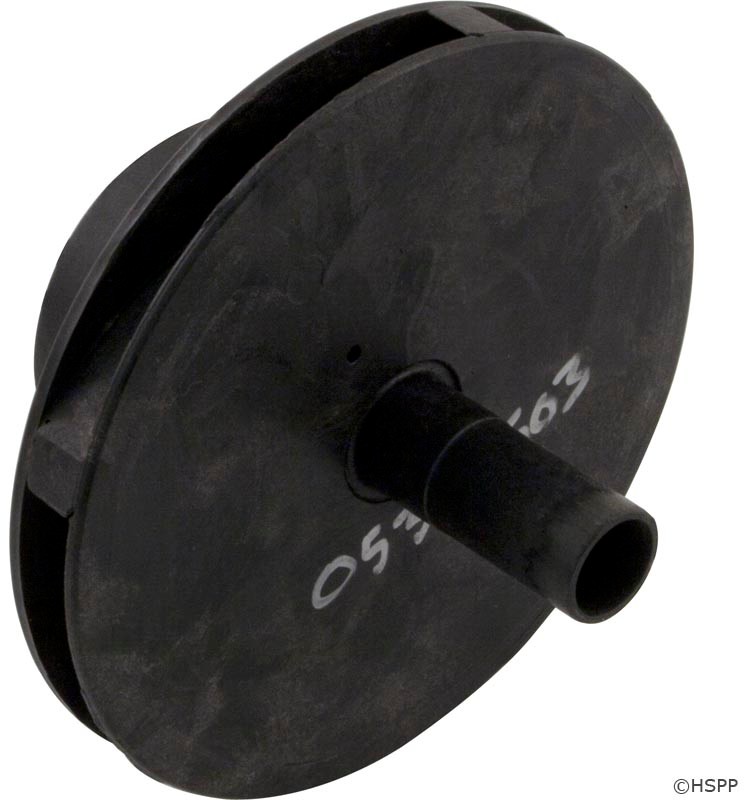

Jacuzzi Bros 05-3865-03-R 2HP Impeller (4-1/4" Diameter)

$32.69
Free Shipping Over $75.00
50+ In Stock
- +
This replacement 2 horsepower impeller is designed to fit Jacuzzi J Series spa pumps. May fit other Jacuzzi model pumps. This is a new, OEM part, number: 05-3865-03-R. Dimensions: Outside Diameter: 4-3/16" Thickness: 1/2" (Outside thickness at outside edge) Thickness: 5/16" (B) (Inside thickness at outside edge) Front to Back: 3-1/4" (From end of shaft to front of intake) Inlet Outside Diameter: 2-1/16" Inlet Inside Diameter: 1-13/16" Shaft Cover Length: 1-1/2" Shaft Cover Outside Diameter: 5/8" (This is where the impeller screws onto the motor shaft)
Specs
More Information
Brand Jacuzzi Bros
Product Name 2HP Impeller (4-1/4" Diameter)
Manufacturer Part Number 05-3865-03-R
Substitute Part Numbers 05386503R000, 05386503R, 5069-05C, 35-105-1864
Obsolete No
SKU JAC-101-6203
