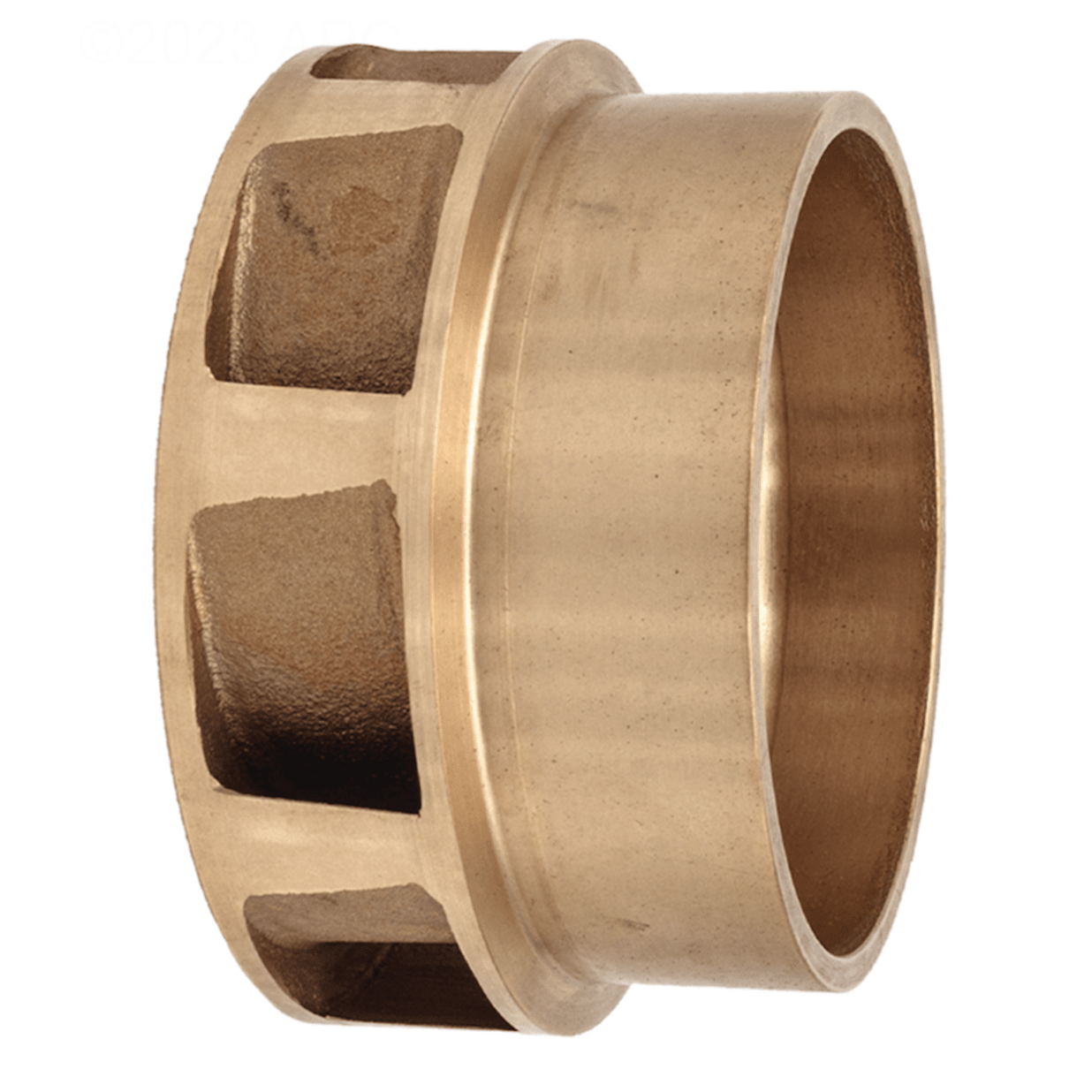

Pentair C Series Pump Impeller, 1PH or 3PH Medium Head, 7.5HP
Pentair 070227
Write a Review Ask a question
$1208.99/ Each
In Stock
Rewards
Earn 1208 points
Add a Service
Quick Overview
Pentair C Series Pump Impeller, 1PH or 3PH Medium Head, 7.5HP, 070227
This Medium Head Impeller is for use with Pentair C Series high performance commercial pumps. An impeller is a rotating disc within a pump. It transfers energy from the motor to the pump's fluid. Made for easy installation and use, this part will help ensure the best service life possible.
For Use With: C Series® 7-1/2 hp 1-Phase CM-75 Model, 3-Phase CMK-75, CMKL-75 Model Commercial Bronze Pump
Questions? Contact our pool professionals:
Product Overview
THIS IS A 7-1/2 HP IMPELLER USED ON THE PENTAIR/PUREX C SERIES PUMP. THIS IS THE CMK MEDIUM HEAD IMPELLER. MATERIAL: BRONZE. CLOSED FACE
NUMBER OF VANES: 8
OUTSIDE DIAMETER: 5-1/8" (A)
THICKNESS: 1-1/16"
(INSIDE THICKNESS AT OUTSIDE EDGE)
THICKNESS: 1-3/8" (B)
(OUTSIDE THICKNESS AT OUTSIDE EDGE)
FRONT TO BACK: 2-3/4"
(NOT INCLUDING THE EXTENSION ON THE FRONT)
THERE IS A 1-5/8" DIAMETER X 3/8" LONG EXTENSION ON THE FRONT
OUTSIDE DIAMETER: 4-17/32"
INSIDE DIAMETER: 4-5/32"
(THIS IS THE PART OF THE IMPELLER WITHOUT VANES)
Specs & Details
| Product Name | C Series Pump Impeller, 1PH or 3PH Medium Head, 7.5HP |
| Manufacturer Part Number | 070227 |
| Sku | PUR-101-1457 |
| UPC | 788379664244 |
