1 Horsepower, Keyed Shaft Motor. 115/230v
Key Features:
50°C Ambient
304 Bearing Shaft End
Switchless
UL 1081 Design
Permanent Split Capacitor
Open Dripproof
Rigid Base
Keyed Shaft
Note: NOT California Title 20 Compliant.

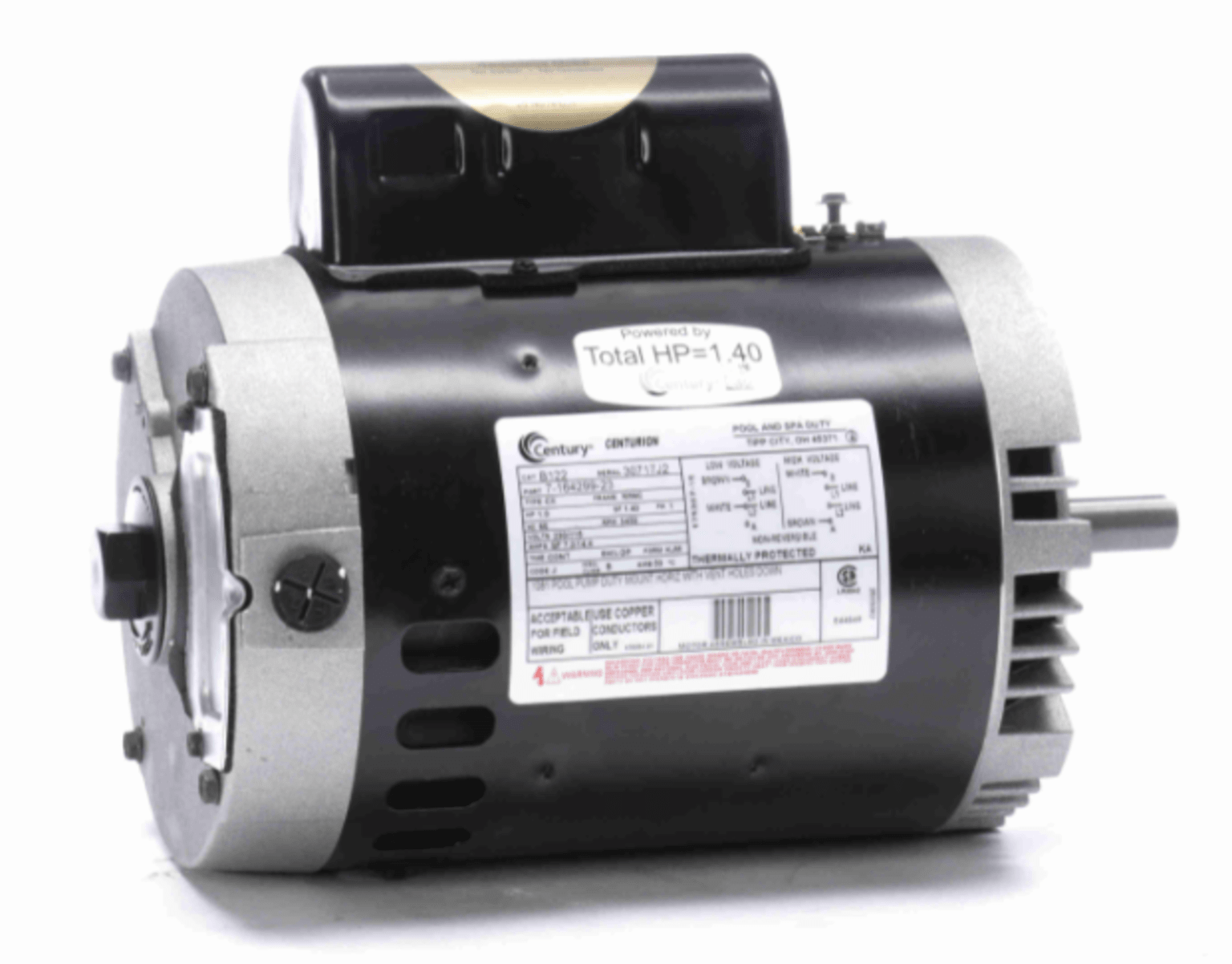

Side view
Nameplate Specs:
Phase: 1
Output HP: 1.0 Hp
Output KW: 0.75 kW
Voltage: 230/115 V
Speed: 3450 rpm
Service Factor: 1.4
Frame: M56C
Enclosure: Drip Proof
Thermal Protection: Thermally Protected
Ambient Temperature: 50 °C
Frequency: 60 Hz
Current: SF 7.2/14.4 A
Duty: Continuous
Insulation Class: B
UL: Recognized
CSA: Y
Number of Speeds: 1
Technical Specs:
Electrical Type: Permanent Split Capacitor, Single Or Dual Voltage
Poles: 2
Rotation: Counterclockwise Pump End
Mounting: C Face
Motor Orientation: Horizontal
Drive End Bearing: Ball
Opp Drive End Bearing: Ball
Frame Material: Rolled Steel
Shaft Type: 5/8" KEYED
Overall Length: 11.89"
Frame Length: 6.75"
Shaft Diameter: 0.625"
Shaft Extension:2.07"

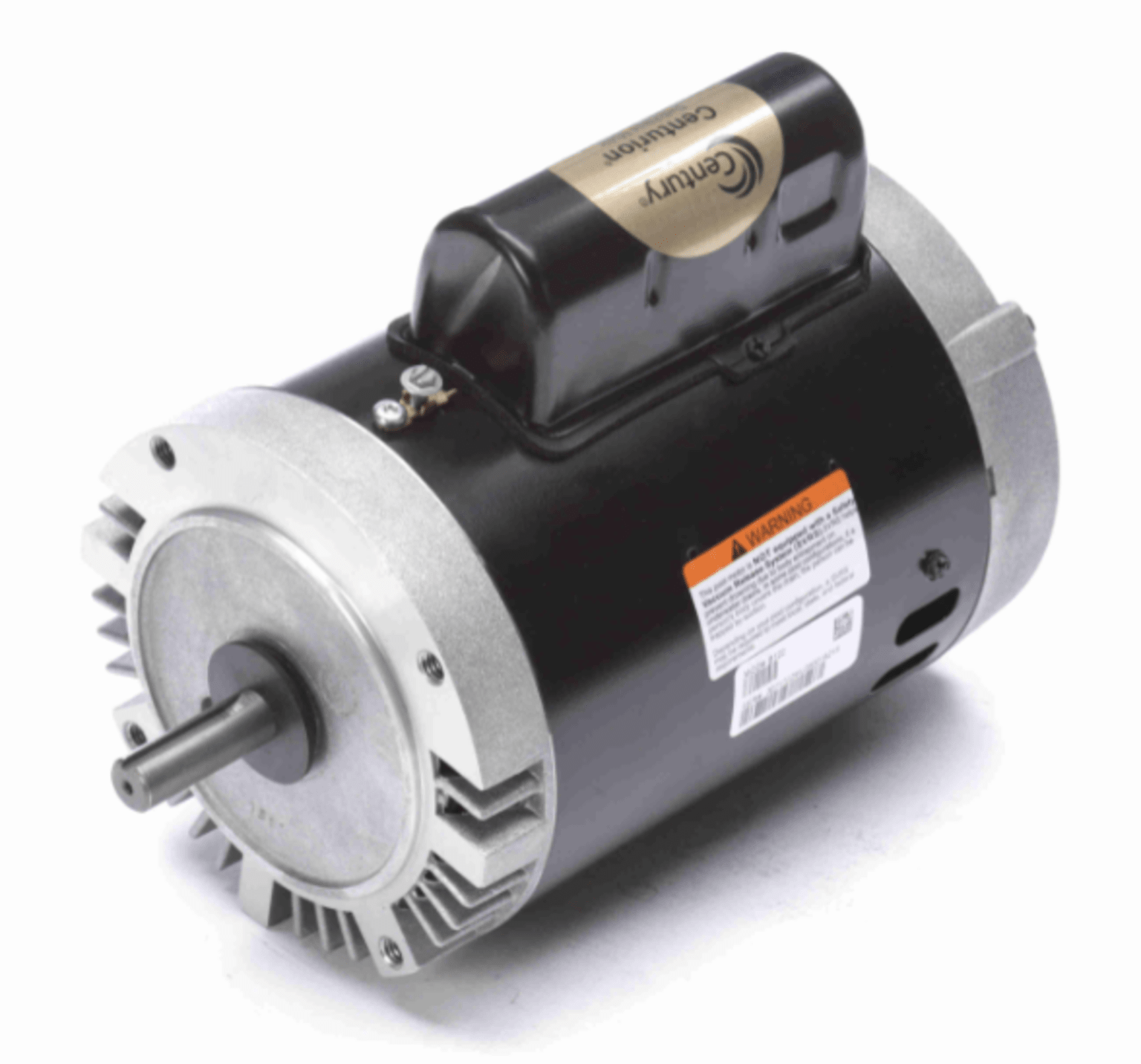

Front view
Product Name | Keyed FR 1HP 115/230V |
Manufacturer Part Number | B122 |
Sku | MGT-60-5093 |
UPC | 663001192657 |
