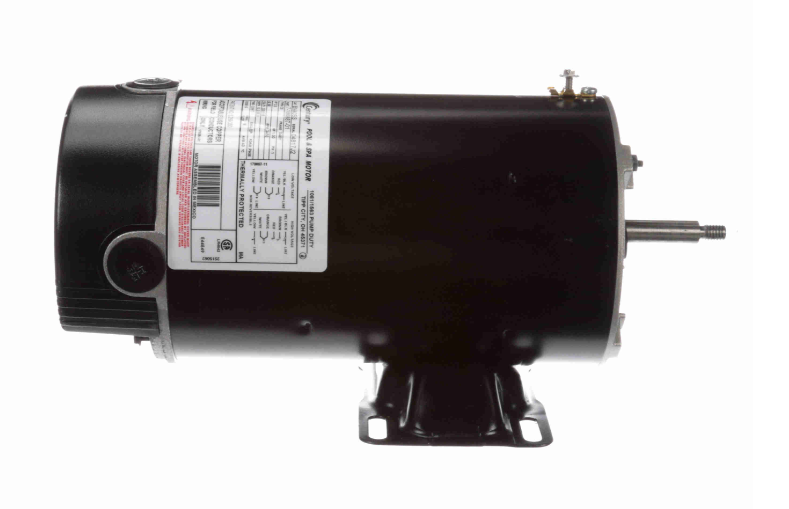

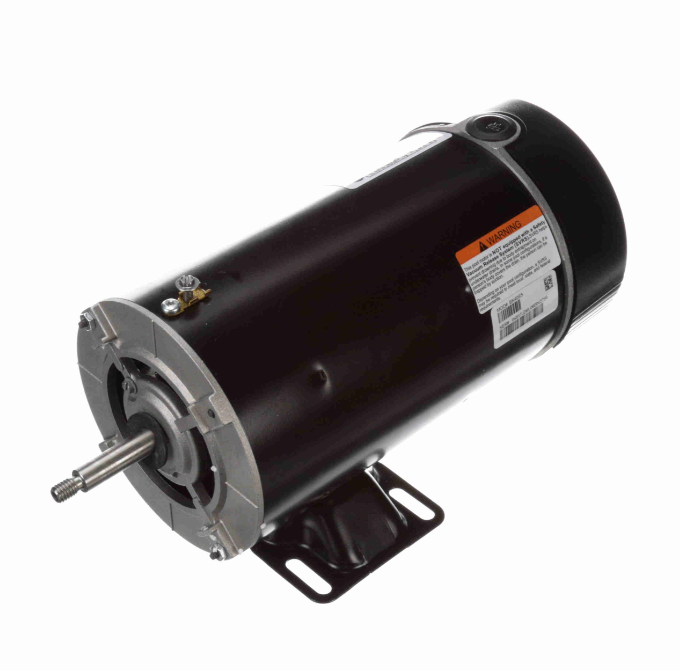

Century ODP Thru-Bolt Pool & Spa Pump Motor 2HP 115/230V, 48Y Frame
Century BN40SS
Century / A.O. Smith Replacement Motor. Thru-bolt 2HP 115/230V (Stainless Steel Shaft). Century / A.O. Smith Replacement Motor Flex 48 BN40SS Pool and Spa Pump Motor.
Key Features:
12 & 3 O'clock Conduit Entries
3-1/2" Shaft Height
40°C Ambient
Stainless Steel Shaft
Four Thru Bolts on a 5.146 Bolt Circle
48/56 Base Mounting
Sealed Ball Bearings
UL 1081 Design
Rigid Base
Threaded Shaft
*Not California Title 20 Compliant. Cannot be shipped to or installed in California.

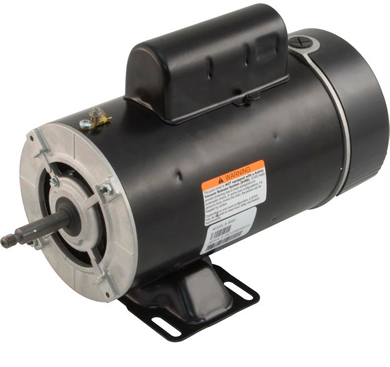

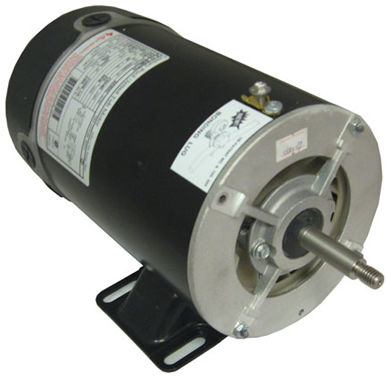

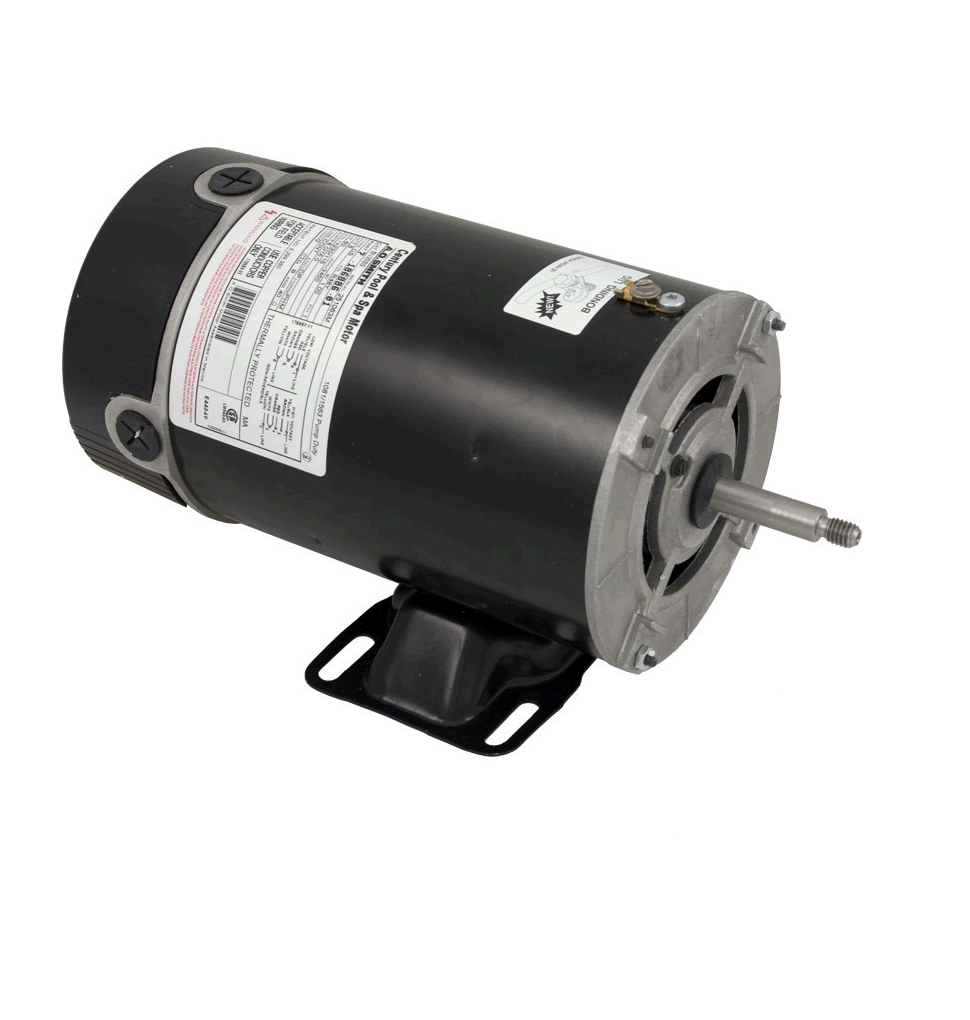

Frequently Purchased Together
Product Overview
Nameplate Specs:
Phase: 1
Output HP: 2.0 Hp
Output KW: 1.5 kW
Voltage: 230/115 V
Speed: 3450 rpm
Service Factor: 1
Frame: X48Y
Enclosure: Drip Proof
Thermal Protection: Thermally Protected
Ambient Temperature: 40 °C
Frequency: 60 Hz
Current: 10.0/20.0 A
Duty: Continuous
Insulation Class: B
UL: Recognized
CSA: Y
Number of Speeds: 1
Technical Specs:
Electrical Type: Capacitor Start, Induction Run, Single Or Dual Voltage
Poles: 2
Rotation: Counterclockwise Pump End
Mounting: Thru Bolt
Motor Orientation: Horizontal
Drive End Bearing: Ball
Opp Drive End Bearing: Ball
Frame Material: Rolled Steel
Shaft Type: 3/8 Threaded
Overall Length: 13.33 in
Frame Length: 8.50 in
Shaft Diameter: 0.500 in
Shaft Extension: 2.36 in
Specs & Details
| Product Name | ODP Thru-Bolt Pool & Spa Pump Motor 2HP 115/230V, 48Y Frame |
| Manufacturer Part Number | BN40SS |
| Sku | MGT-60-5237 |
| UPC | 663001363415 |
