Century Motor 3/4HP 115/230V
Century B127
3/4 Horsepower Replacement Motor with Threaded Shaft. 115/230v
Key Features:
50°C Ambient
304 Bearing Shaft End
Switchless
UL 1081 Design
Permanent Split Capacitor
Open Dripproof
Rigid Base
Threaded Shaft
303 Stainless Steel Shaft
NOT California Title 20 Compliant
Frequently Purchased Together
Product Overview

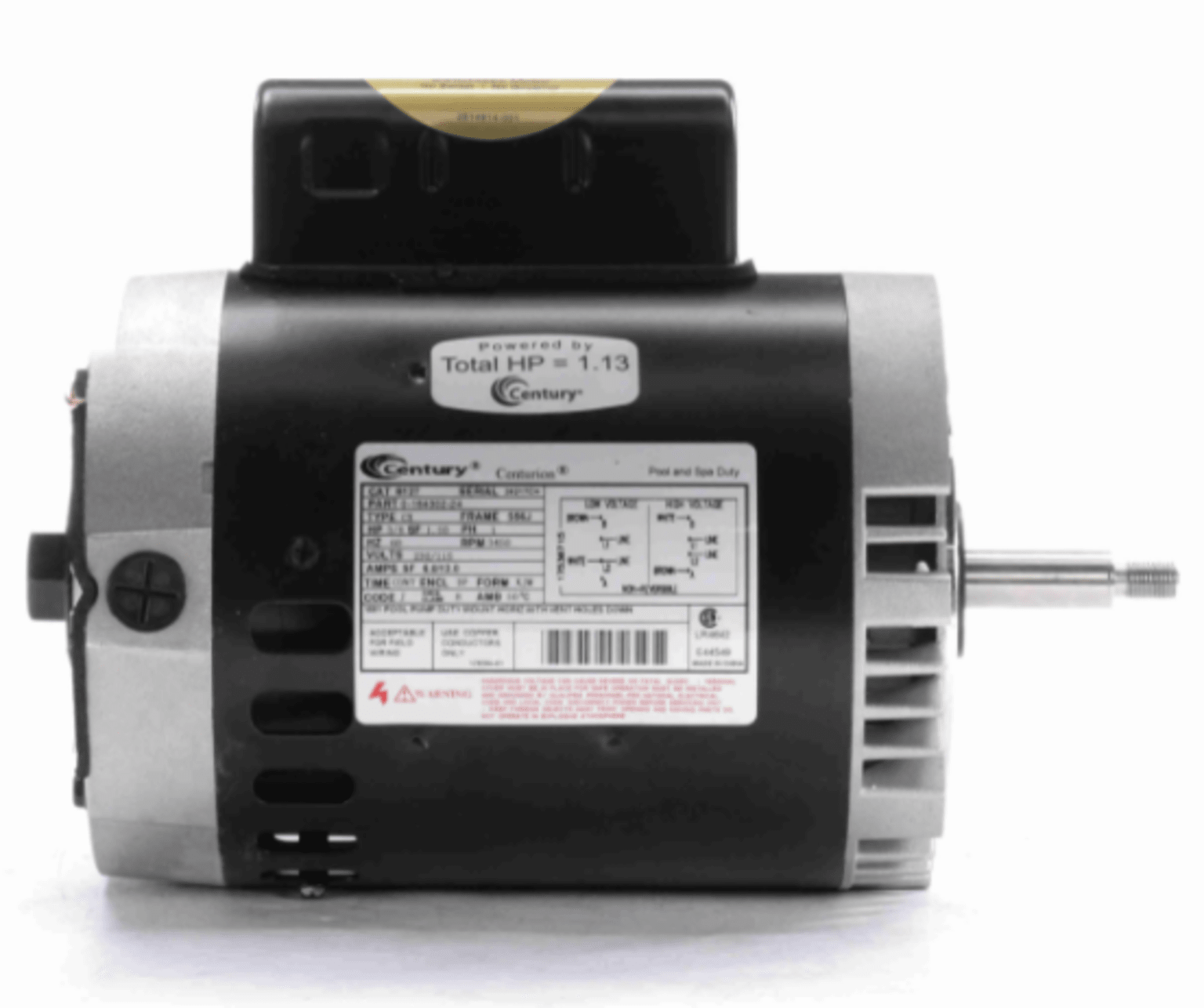

Side view
Nameplate Specs:
Phase:1
Output HP: 3/4 Hp
Output KW: 0.56 kW
Voltage: 230/115 V
Speed: 3450 rpm
Service Factor: 1.5
Frame: S56J
Enclosure: Drip Proof
Thermal Protection: Thermally Protected
Ambient Temperature: 50 °C
Frequency: 60 Hz
Current: SF 6.0/12.0 A
Duty: Continuous
Insulation Class: B
UL: Recognized
CSA: Y
Number of Speeds: 1
Technical Specs:
Electrical Type: Permanent Split Capacitor, Single Or Dual Voltage
Poles: 2
Rotation: Counterclockwise Pump End
Mounting: C Face
Motor Orientation: Horizontal
Drive End Bearing: Ball
Opp Drive End Bearing: Ball
Frame Material: Rolled Steel
Shaft Type: 7/16" THREADS
Overall Length: 12.01"
Frame Length: 6.38"
Shaft Diameter: 0.625"
Shaft Extension: 2.57"
Front view
Specs & Details
| Product Name | Motor 3/4HP 115/230V |
| Manufacturer Part Number | B127 |
| Sku | MGT-60-5098 |
| UPC | 786674011886 |
