Century Thru Bolt 1.5HP 2SP 115V
Century BN50V1
1-1/2 Horsepower, 2 Speed Thru Bolt Style Replacement Motor. 115v 48Y frame.
Key Features:
Two Speed
12 & 3 O'clock Conduit Entries
3-1/2" Shaft Height
40°C Ambient
Four Thru Bolts on a 5.146 Bolt Circle
Flex 48 LASAR Line Low Amp Start and Run with 48/56 Base Mounting
48/56 Base Mounting
Threaded Shaft
Rigid Base
Energy Efficient
Note: NOT California Title 20 Compliant.
Product Overview

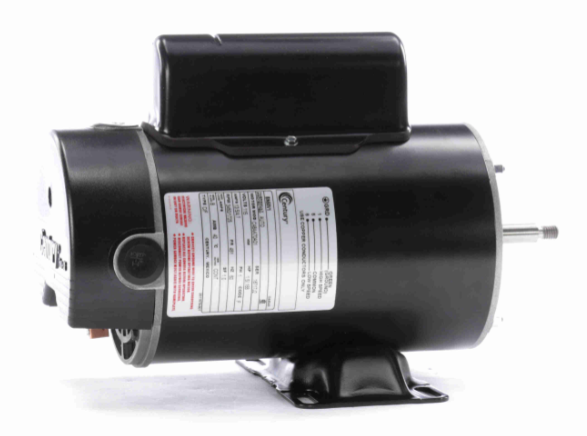

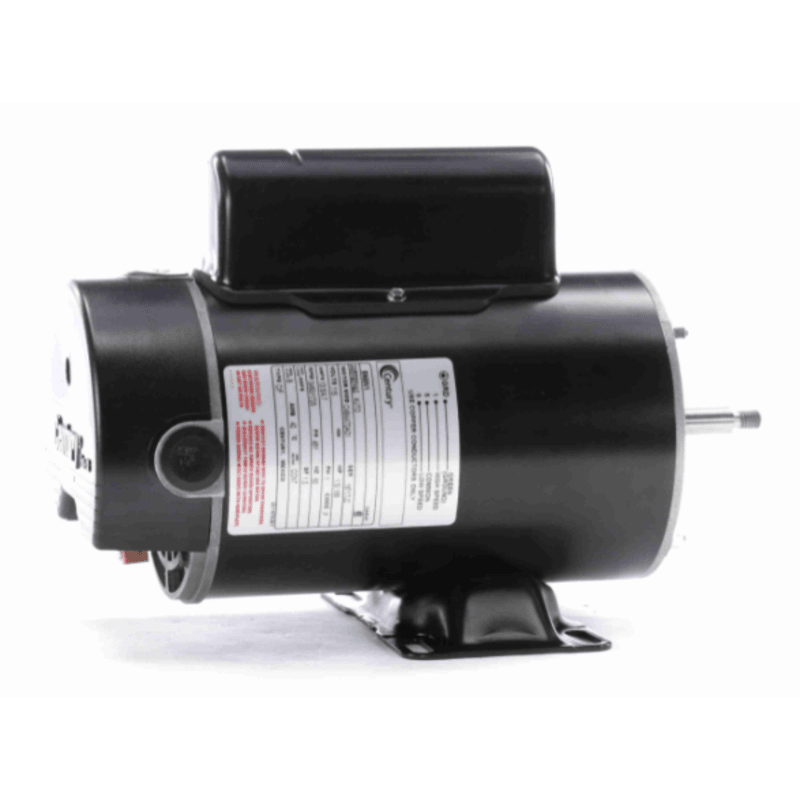

Side view
Nameplate Specs:
Phase: 1
Output HP: 1.5/.188 Hp
Output KW: 1.1 kW
Voltage: 115 V
Speed: 3450/1725 rpm
Service Factor: 1
Frame: 48Y
Enclosure: Open Drip Proof
Thermal Protection: Thermally Protected
Ambient Temperature: 40 °C
Frequency: 60 Hz
Current: 13.5/4.7 A
Duty: Continuous
Insulation Class: B
UL: Recognized
CSA: Y
Number of Speeds: 2

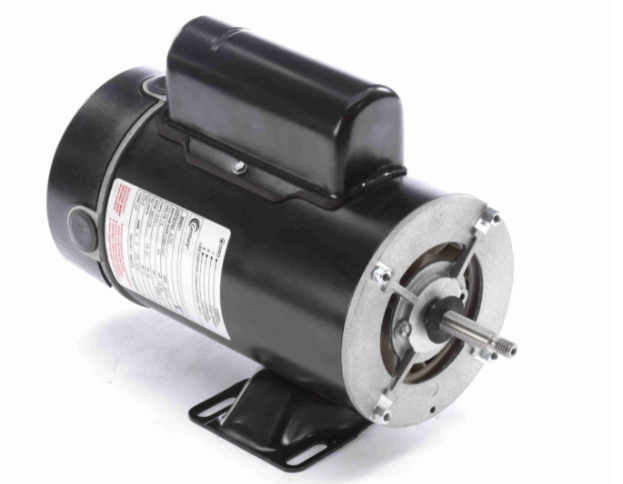

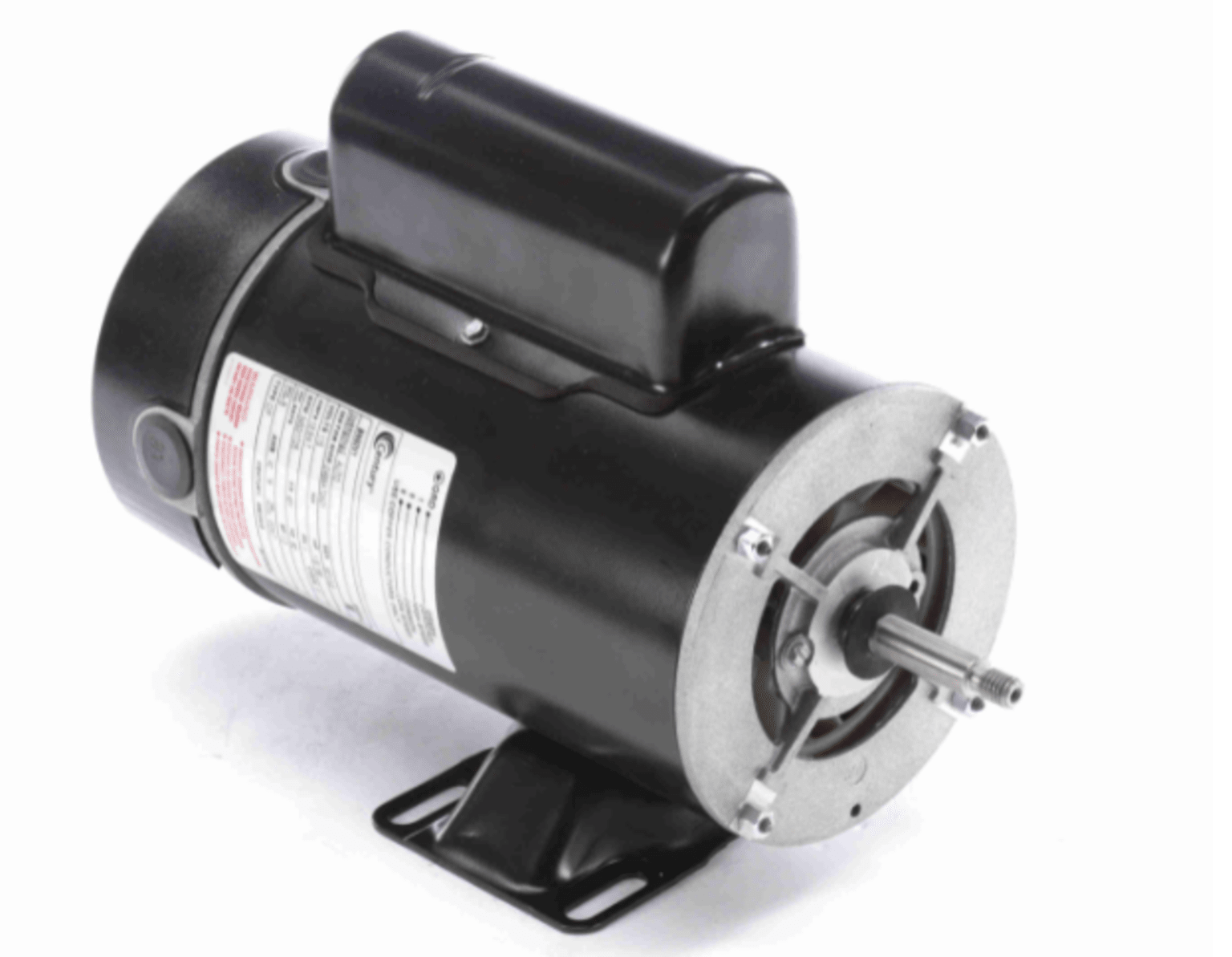

Front view
Technical Specs:
Electrical Type: Cap Start Low Speed, Psc High Speed
Starting Method: Across The Line
Poles: 2/4
Rotation: Counterclockwise Pump End
Mounting: Thru Bolt
Motor Orientation: Horizontal
Drive End Bearing: Ball
Opp Drive End Bearing: Ball
Frame Material: Rolled Steel
Shaft Type: 3/8" Threaded
Overall Length: 13.21"
Frame Length: 8.00"
Shaft Diameter: 0.500"
Shaft Extension: 2.375"
Specs & Details
| Product Name | Thru Bolt 1.5HP 2SP 115V |
| Manufacturer Part Number | BN50V1 |
| Sku | MGT-60-0050 |
| UPC | 786674014436 |
