Sta-Rite Tube Sheet Coil Assembly Kit For Model 400NA, 400LP Mastertemp Heater

Pentair Sta-Rite 474061 Tube Sheet Coil Assembly Kit

For Use With: Model 400NA, 400LP MasterTemp® Heater Manufactured After 1/12/09 (New Tub Design)

Features

• The tubes on Pentair MasterTemp & Sta-Rite Max-E-Therm heat exchangers (tube sheet assembly) is a generally round shape instead of being straight and flat like most other heaters on the market

• The plate at the end of the tubes measures 5-1/2" wide x 8-1/2" tall. Approximate width side to side is 13".  The approximate length from the end of the plate to the opposite end of the coil is 15"

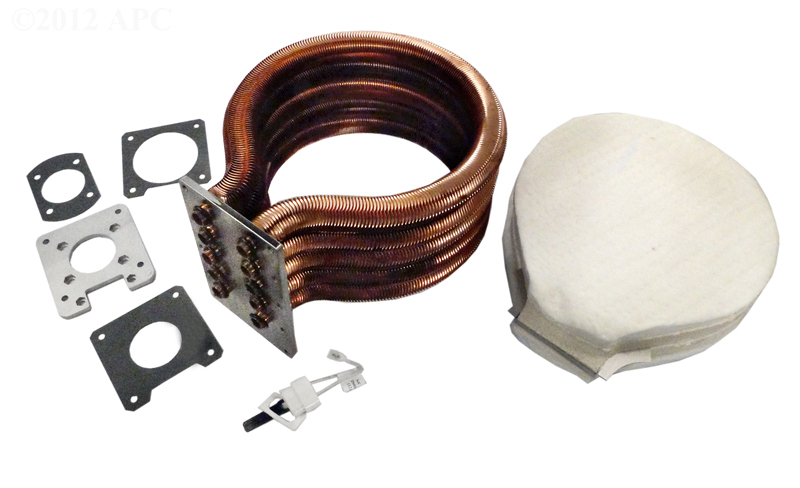

• This kit includes:

  • 8 - O Ring Coil

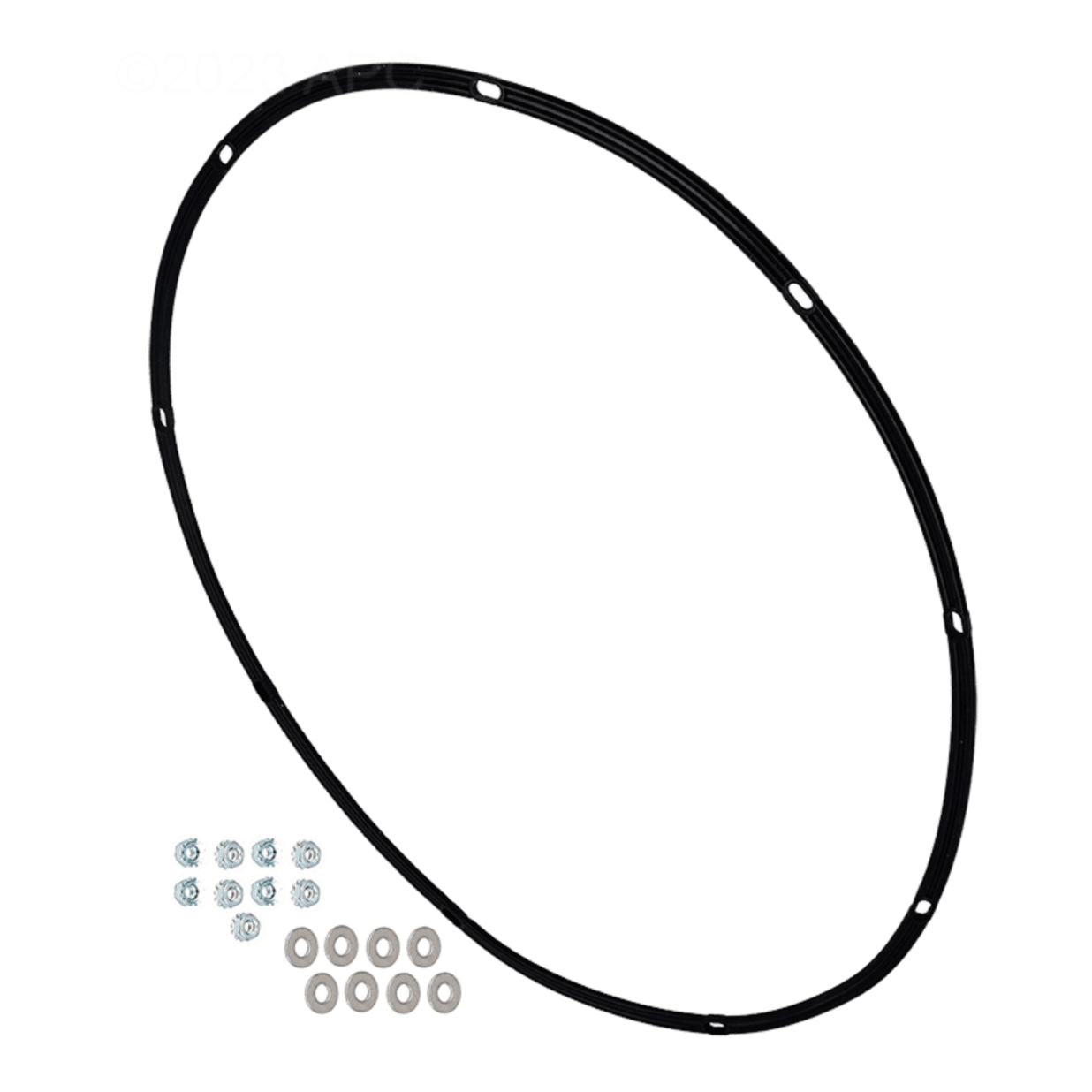

  • 8 - TubeSheet seal

  • 1 - Tubesheet Coil Assembly

  • 1 - Label Sheetmetal Warning

  • 1 - O Ring Metal Tube Replacement

  • 1 - Manifold Bypass Valve Package

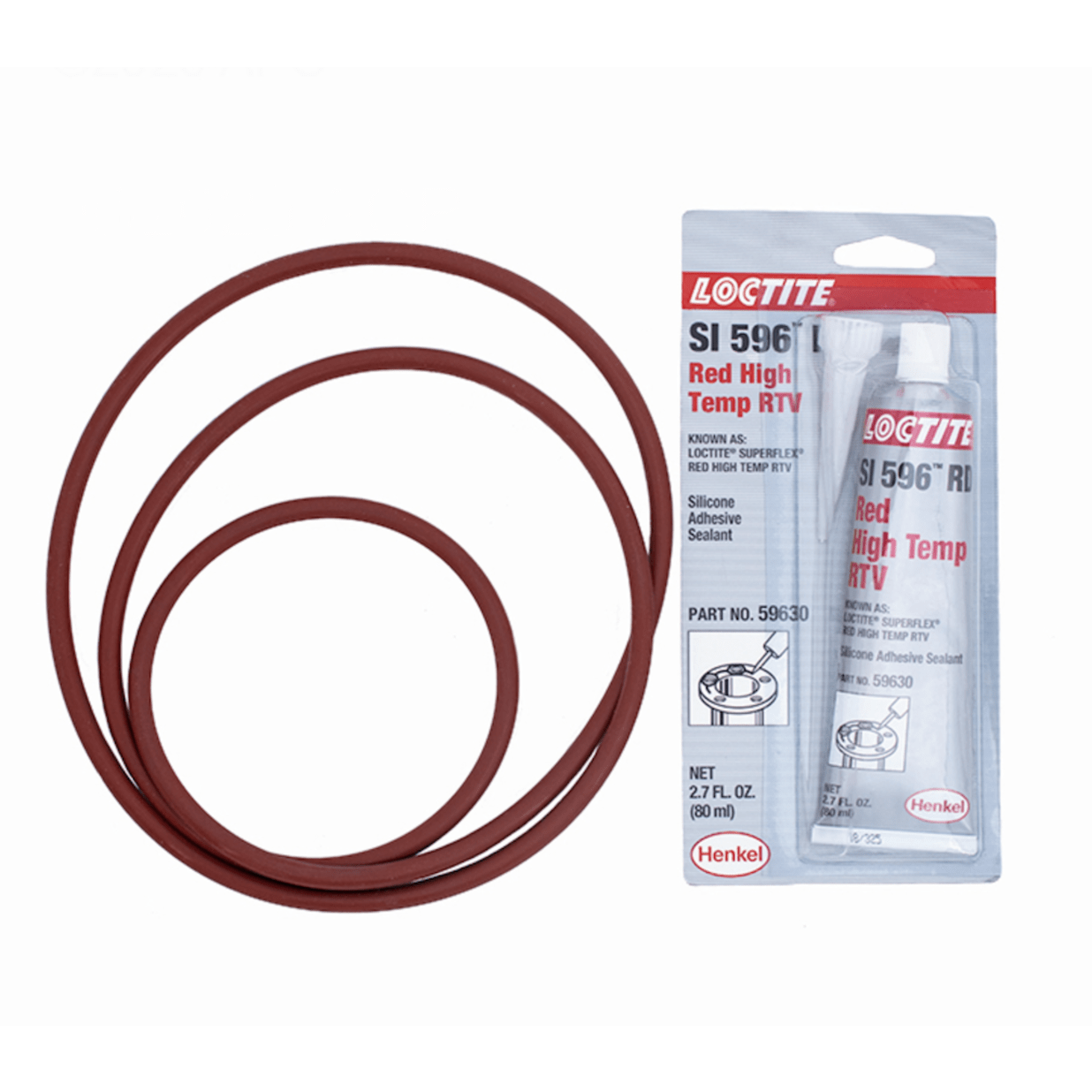

  • 1 - Tube of high temp RTV silicone

  • 1 - Servie Kit Koala Wool Insulation

  • 1 - Blower/Adapter Plate Gasket

  • 1 - Ignitor and Gasket Kit Heater
