Pro-Grid vertical grid D.E. filters provide superior water clarity, efficient flow, and large cleaning capacity for pools and spas of all types.

Pool Filter Features:

• Valve sold separately

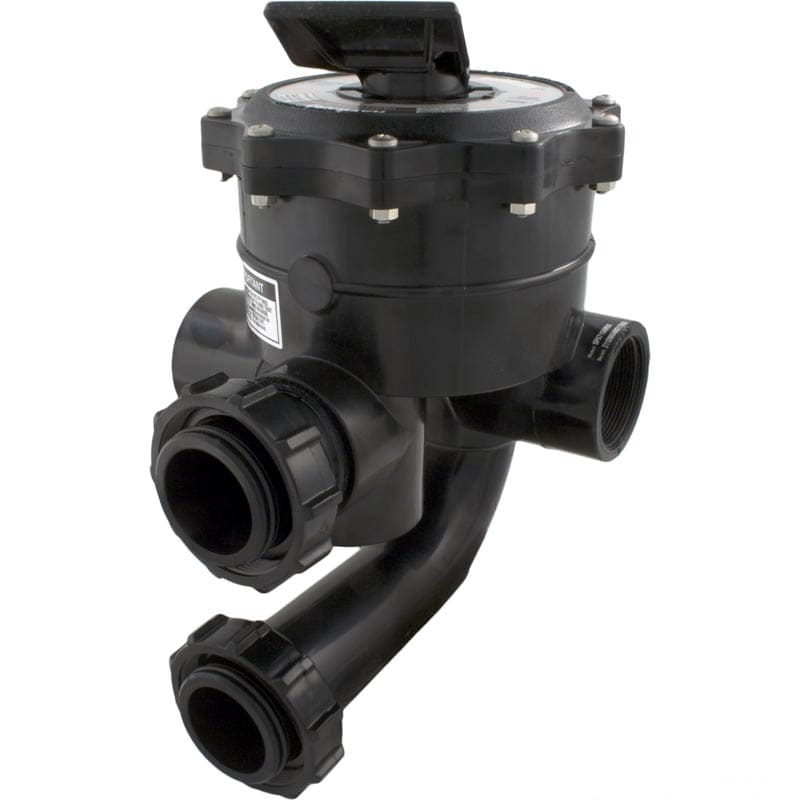

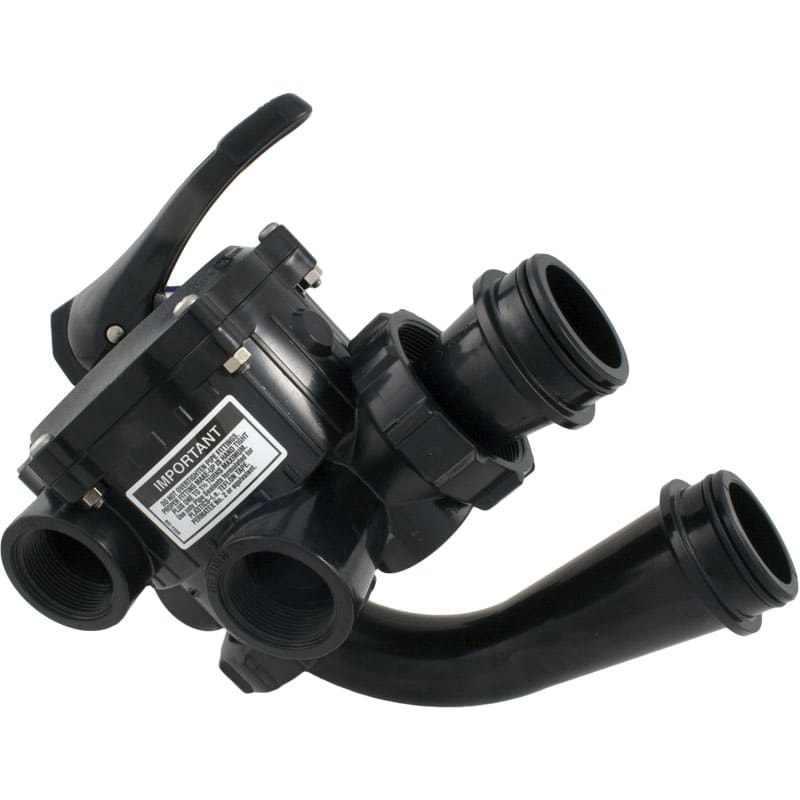

• Compatible with valves: SP0740DE (Selecta-Flo 2” SKT), SP0710XR50 (Vari-Flo 1 ½” NPT), SP0715XR50 (Vari-Flo 2” NPT - Optional), SP0410X5025 (Slide Valve 2” SKT - Optional)

• In-ground pools

• In-ground spas or in-ground pool/spa combinations

• Filter tanks made from durable reinforced thermoplastic to meet the demands of the toughest applications and environmental conditions, including in-floor cleaning systems

• Self-Aligned tank top and bottom make access to servicing the grid elements fast and simple

• Heavy-duty, tamper-proof one piece flange clamp securely fastens tank top and bottom. Allows quick access to all internal components without disturbing piping or connections

• High impact grid elements designed for up-flow filtration and top-down backwashing for maximum efficiency

• Uniform low-profile base make removal of grid nest fast and simple

• Integral lift handles and uniform low-profile base make removal of grid nest fast and simple

• Inlet diffuser elbow distributes flow of unfiltered water evenly to all filter elements and provides even distribution of D.E. to grids

• Convenient valve and plumbing options allow for customized control

• 2" full-flow internal piping and plumbing for less resistance to flow and maximum performance

• High capacity, rapid release manual air relief valve bleeds air with a quick quarter turn of the lever

• 48 sq. ft. filter allows for both commercial and large residential applications and years of non-corrosive, trouble-free performance

• 120 GPM residential flow rate
