Century 1 HP Pump Motor, 230/115 volt, 3450 RPM, Round Flange, 56J Frame, ODP
Century UST1102
Century A.O. Smith Pump Motor, Up Rated, 1600X/2600X Series, 1 HP, 1.10 SF, 115/230v (UST1102)
Used with: Hayward Super Pump, Super II, Max-Flo II
Key Features:
Sealed Switch Design
UL 1081 Design
50°C Ambient
304 Bearing Shaft End
303 Stainless Steel Shaft
Threaded Shaft
Capacitor Start-Capacitor Run
Note: NOT California Title 20 Compliant.
Product Overview

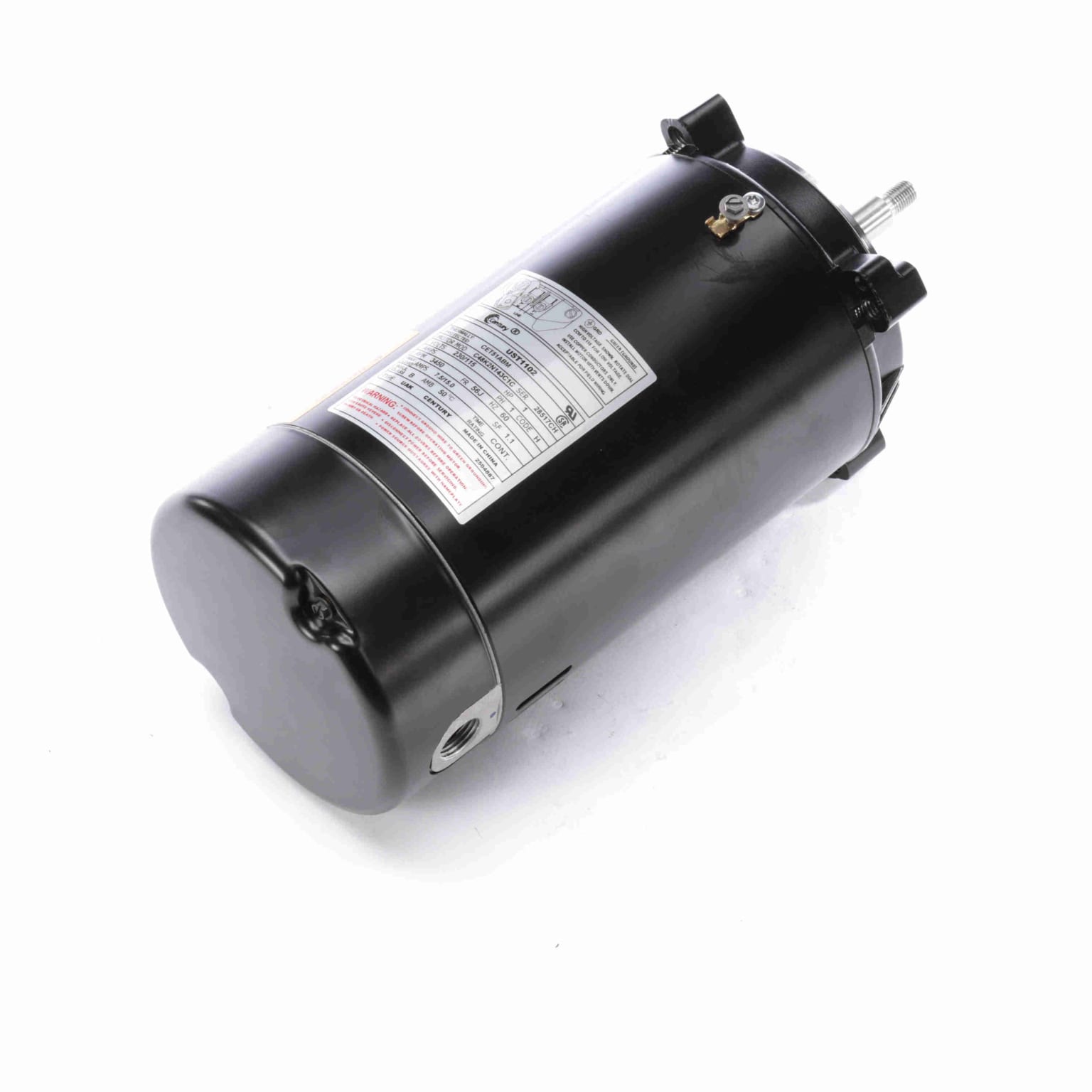

Top view
Nameplate Specs:
Phase: 1
Output HP: 1 Hp
Output KW: 0.75 kW
Voltage: 230/115 V
Speed: 3450 rpm
Service Factor: 1.1
Frame: 56J
Enclosure: Open Drip Proof
Thermal Protection: Automatic
Ambient Temperature: 50 °C
Frequency: 60 Hz
Current: 7.5/15.0 A
Duty: Continuous
Insulation Class: B
UL: Recognized
CSA: Y
Number of Speeds: 1
Technical Specs:
Electrical Type: Cap Start Motor
Starting Method: Across The Line
Poles: 2
Rotation: Counterclockwise Pump End
Mounting: Round
Motor Orientation: Horizontal
Drive End Bearing: Ball
Opp Drive End Bearing: Ball
Frame Material: Rolled Steel
Shaft Type: 7/16" Thread
Overall Length: 13.53"
Frame Length: 7.75"
Shaft Diameter: 0.625"
Shaft Extension: 2.56"

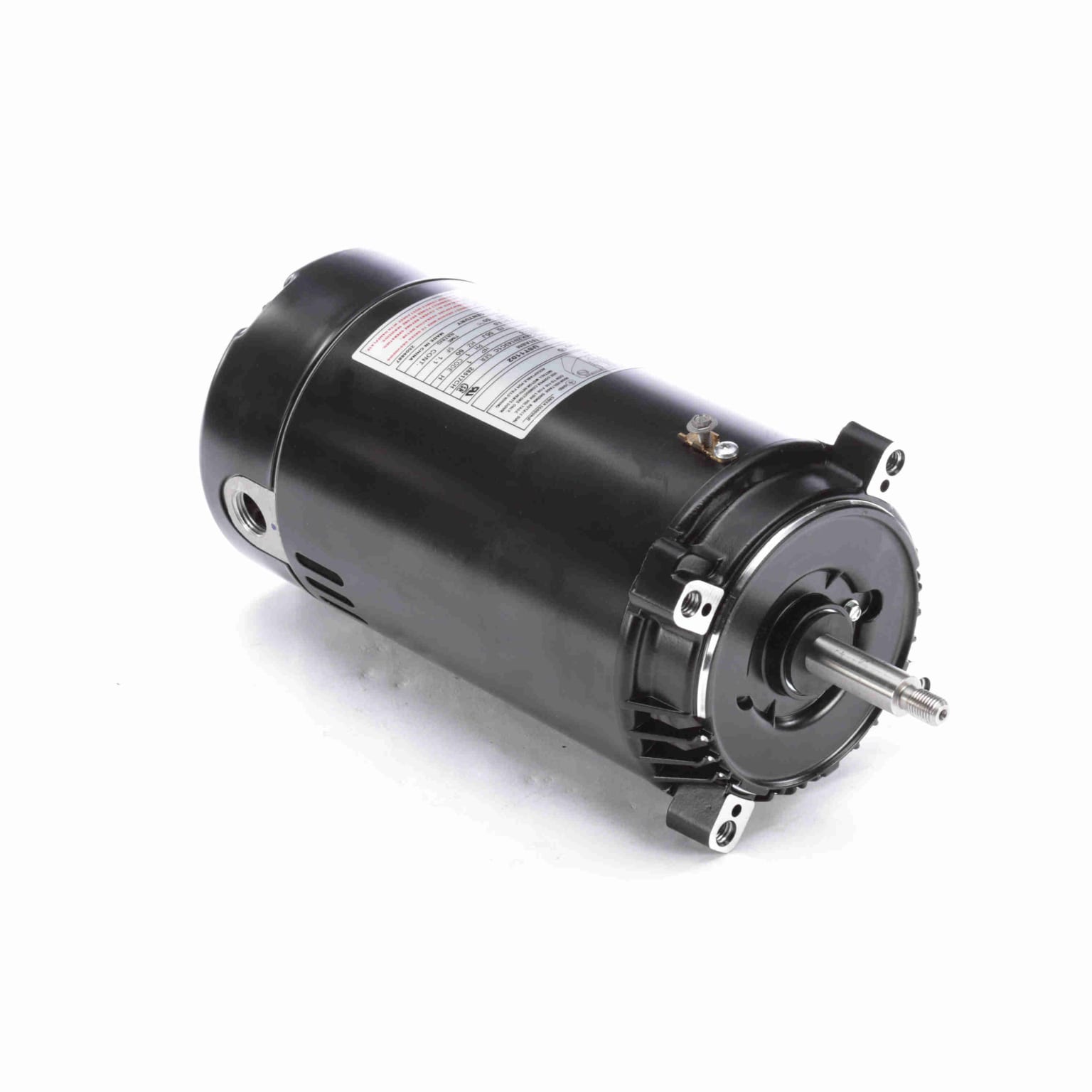

Front view
California Title 20 Compliant Options

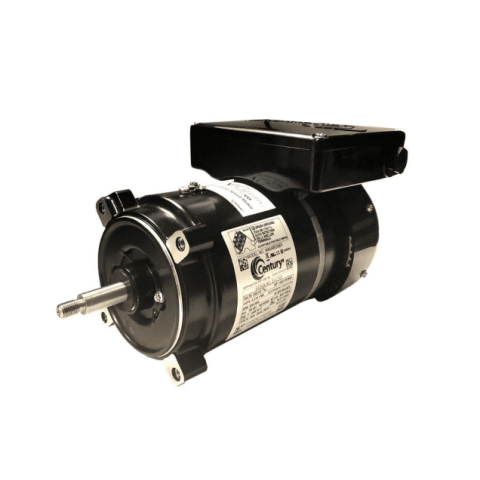

Century Motors currently manufactures six pool pump replacement motor models that conform to the CEC standards: V-Green EVO Models EVC130, EVC165, EVC225, EVQ130, EVQ165, and EVQ225. These models are designed to meet the energy efficiency standards set forth by the CEC, making them an ideal choice for pool owners in California who want to reduce their energy consumption and environmental impact.
In addition to helping the environment, complying with CEC regulations can also help pool owners save money on their energy bills. By choosing an energy-efficient pool pump and motor, pool owners can reduce their energy consumption and lower their energy costs over time.
Specs & Details
| Product Name | 1 HP Pump Motor, 230/115 volt, 3450 RPM, Round Flange, 56J Frame, ODP |
| Manufacturer Part Number | UST1102 |
| Sku | AOS-60-5240 |
| UPC | 786674033338 |
- Century Motor Brochure|
