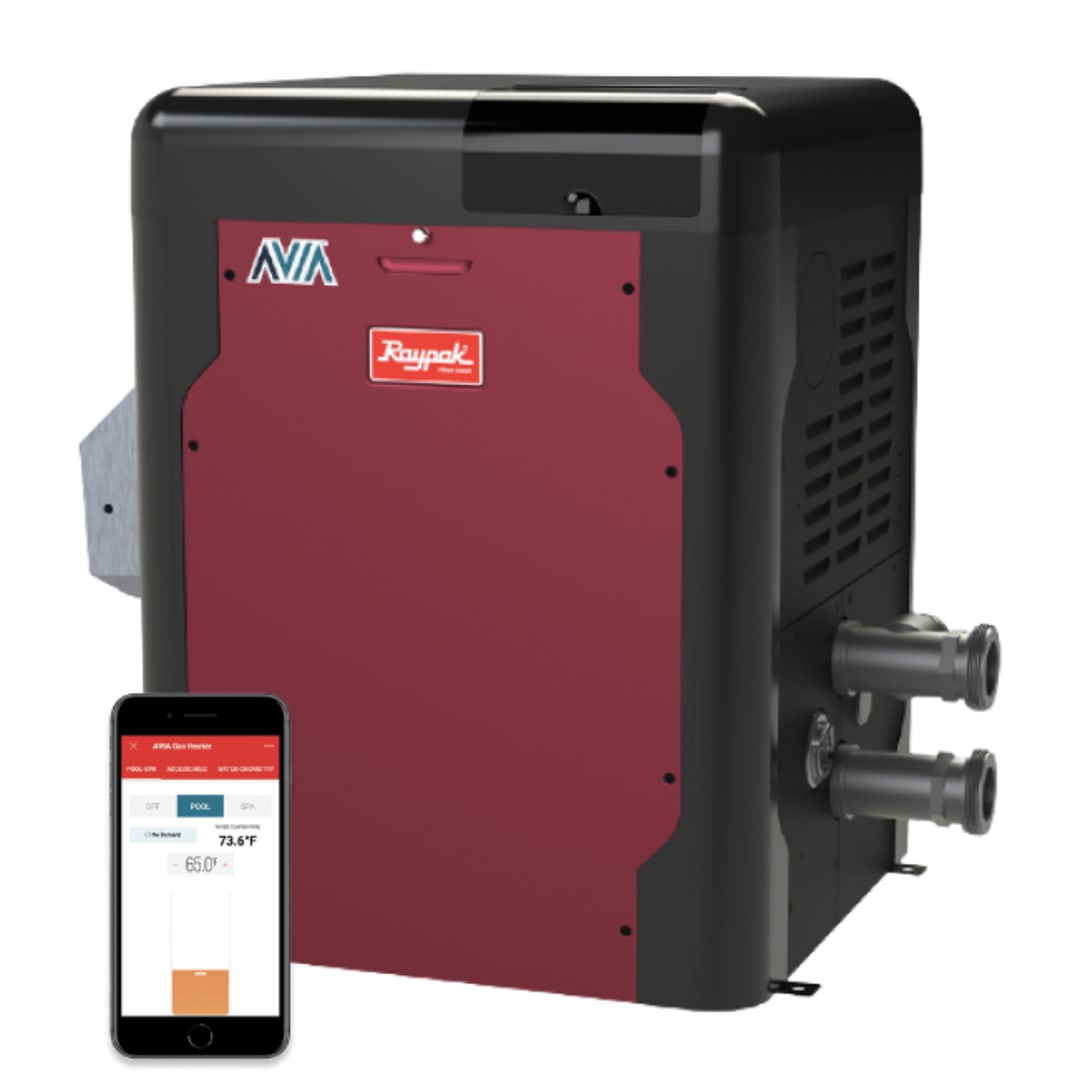

Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, Copper Tubing, 0-10000 Ft. Elevation, P-R404A-EN-C
Raypak 018033
The Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater is one of the most advanced heaters on the market. Key features include the ProTech Shield sacrificial anode, which protects the heater’s internal components from corrosion, built-in Wi-Fi for easy connectivity with the Raypak App, and a standard 3-year warranty.
Product Overview
All Raypak AVIA models now come standard with a 3-Year full heater warranty for residential replacements & new builds.
Gas Type: Natural Gas
Heat Exchanger: Copper
Input BTU Rating: 399,000 BTU
Thermal Efficiency: 84% Thermal Efficiency
Electrical Power Requirement: 120 or 240VAC, 1 Ph, 60 Hz
Operational Elevation: 0 - 10,000 ft.
Introducing the RayPak AVIA 399K BTU Natural Gas Low NOx Advanced Pool Heater, now equipped with the latest ProTek Shield technology. This top-of-the-line pool heater is designed to efficiently and effectively heat your pool, while also minimizing the impact on the environment with its Low NOx emissions.
The RayPak AVIA is the only pool heater that comes standard equipped with the Wi-Fi, allowing you to easily monitor and adjust the temperature of your pool from anywhere using the Raypak Raymote app available on Apple and Android devises. With the touch of a button, you can monoitor and customize your pool's temperate to your exact preference,
Overall, the RayPak AVIA 399K BTU Natural Gas Low NOx Advanced Pool Heater is the perfect solution for those who demand top-notch performance, energy efficiency, and convenience. With its advanced features and superior construction, this pool heater is sure to provide years of reliable service and comfortable swimming temperatures.
ProTek Shield Is a cutting-edge module, exclusive to Raypak, that protects the heat exchanger from corrosion, prolonging the life of the AVIA pool heater.
Integrated Wi-Fi Provides a smart connection for real-time service alerts & control from anywhere. Raymote Temperature & Heater Control Raymote Mobile App allows you on-the-go control of your pool temperature and so much more. Smart Automation Smart pool control automaton system built right into the heater. Enables you to automate and manage your pool temperature. Smart Ecosystem Manager Enables you to manage your heater, pump or water feature and scheduling.
Small & Easy to Install AVIA weighs under 140 pounds and can be installed on a standard 2x2 foot pad.
Pair the AVIA with a Crosswind V Heat Pump
Planning on heating your pool all winter? Pair the Raypak AVIA gas heater with a Raypak Crosswind V heat pump for the most efficient setup. The Crosswind V and AVIA heaters feature advanced heat source delegation with the Raymote app. When paired together, the system intelligently alternates between the heat pump and the gas heater, optimizing performance and efficiency based on current conditions. This ensures your pool maintains the desired temperature the most efficiently way possible.
Substitutions
Raypak 018033 P-R404A-EN-C
Rheem 018069 P-M404A-EN-C
Ruud 018093 P-D404A-EN-C
Specs & Details
| Product Name | AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, Copper Tubing, 0-10000 Ft. Elevation, P-R404A-EN-C |
| Manufacturer Part Number | 018033 |
| Sku | RUD-15-0003 |
| UPC | 840891047292 |
- Raymote App and Wifi Quick Start Guide|
- Raypak Pool Heater Limited Warranty|
- Raypak AVIA Installation & Operation Manual|
Love the wifi function, can turn it on from work so pool is nice and warm when I get home. Can also see the water temp in the app which is handy.
This heater is pretty awesome. This is our first fall with a pool and it has been amazing to swim all weekend in November. We have a small pool, 13,500 gallons so we get about 3 degrees an hour with it running, so we will crank it up Friday to bring the pool up to 85. Then the heater will come on and off all weekend to automatically maintain the water temperature. I calculated it costs me about $2.60 in natural gas to run it per hour, so a weekend of swimming is around $50 in gas bill which is still cheeper than taking the kids to the movies! The Raypak app works well, it tells you the current temperature and you can adjust how hot you want the pool right in the app. The heater its self is only 2' by 2' so it fit perfectly on our equipment pad. All in all, very happy with this purchase, only took 3 days to get to us and the installer was in and out in about an hour. We did have to run a 1-1/4" gas line down to the equipment pad, which was probably the most expensive part, but its been totally worth it!
