AO Smith 3/4 Horsepower Motor with Threaded Shaft for Polaris Booster Pump. Identical to P61 115/230v
Key Features:
Sealed Ball Bearings
Rotation: CW Non-Reversible
40°C Ambient
UL 1081 Design
No Base & Rigid Base
Booster Pump - Cleaner
Side view
Nameplate Specs:
Phase: 1
Output HP: 3/4 Hp
Output KW: 0.56 kW
Voltage: 230/115 V
Speed: 3450 rpm
Service Factor: 1.5
Frame: N56CZ
Enclosure: Drip Proof
Thermal Protection: Thermally Protected
Ambient Temperature: 40 °C
Frequency: 60 Hz
Current: SF 6.4/12.8 A
Duty: Continuous
Insulation Class: B
UL: Recognized
CSA: Y
Number of Speeds: 1
Technical Specs:
Electrical Type: Capacitor Start, Induction Run, Single Or Dual Voltage
Poles: 2
Rotation: Counterclockwise Pump End
Mounting: Special/Non-Standard
Motor Orientation: Horizontal
Drive End Bearing: Ball
Opp Drive End Bearing: Ball
Frame Material: Rolled Steel
Shaft Type: 1/2" THREADS
Overall Length: 14.13"
Frame Length: 7.25"
Shaft Diameter: 0.665"
Shaft Extension: 3.82"

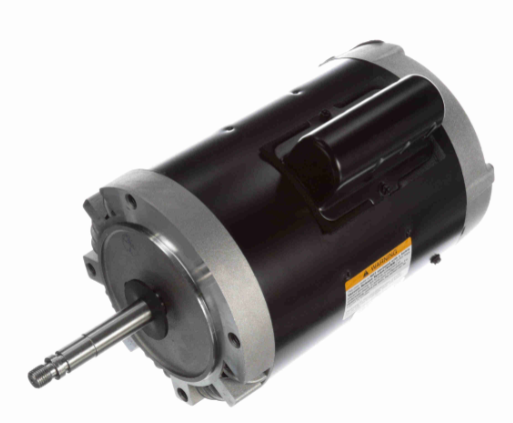

Top view

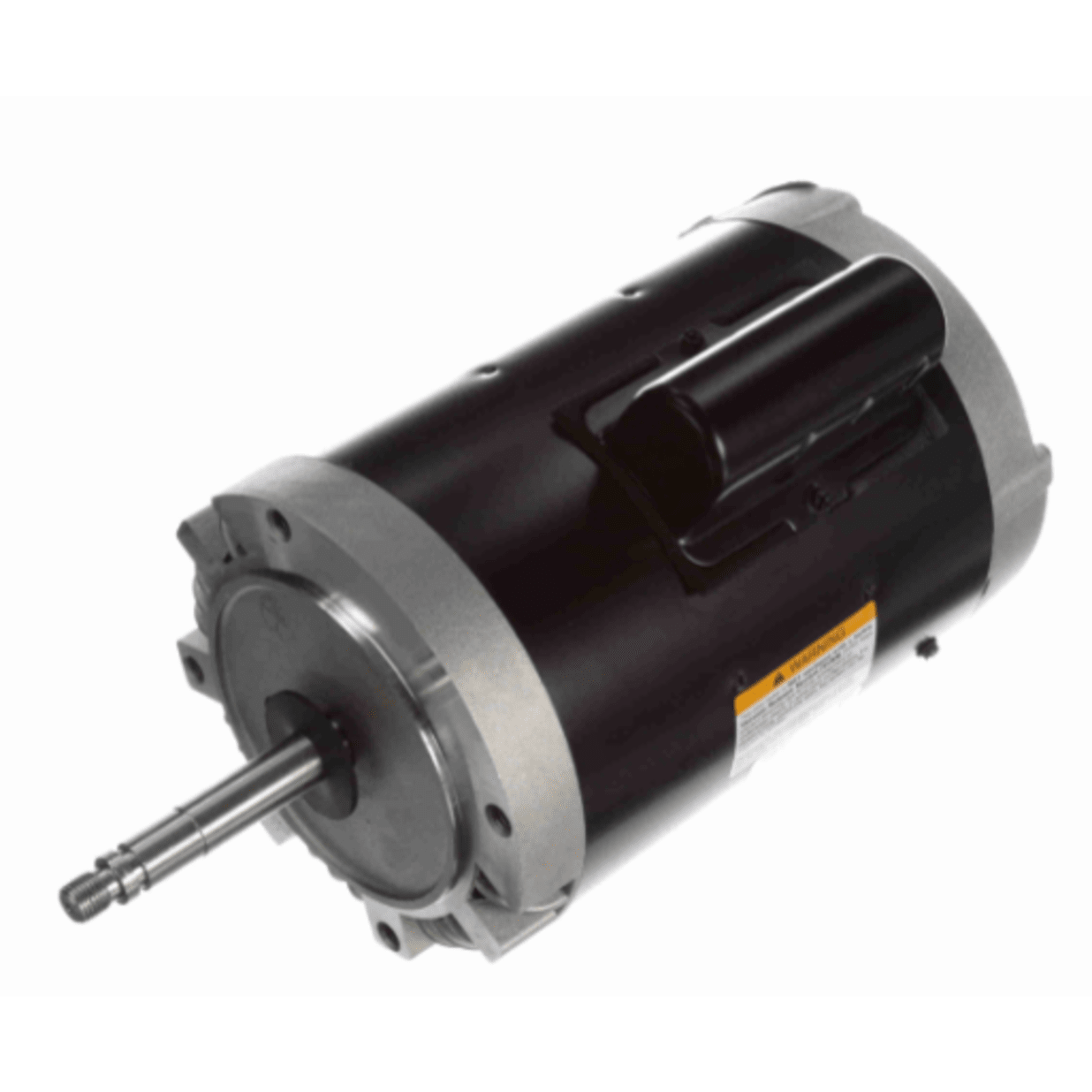

Product Name | Threaded .75HP Polaris P61 115/230V |
Manufacturer Part Number | B625 |
Sku | MGT-60-5109 |
UPC | 786674012647 |
