Century Threaded FR 1HP 115/230V B128
Century B128
1 Horsepower Motor with Threaded Shaft. 115/230v
Used with: Jandy HHP & HHPU, Hayward Max-Flo 1800 & 2800
Key Features:
50°C Ambient
304 Bearing Shaft End
Switchless
UL 1081 Design
Permanent Split Capacitor
Open Dripproof
Rigid Base
Threaded Shaft
303 Stainless Steel Shaft
Note: NOT California Title 20 Compliant.
Frequently Purchased Together
Product Overview

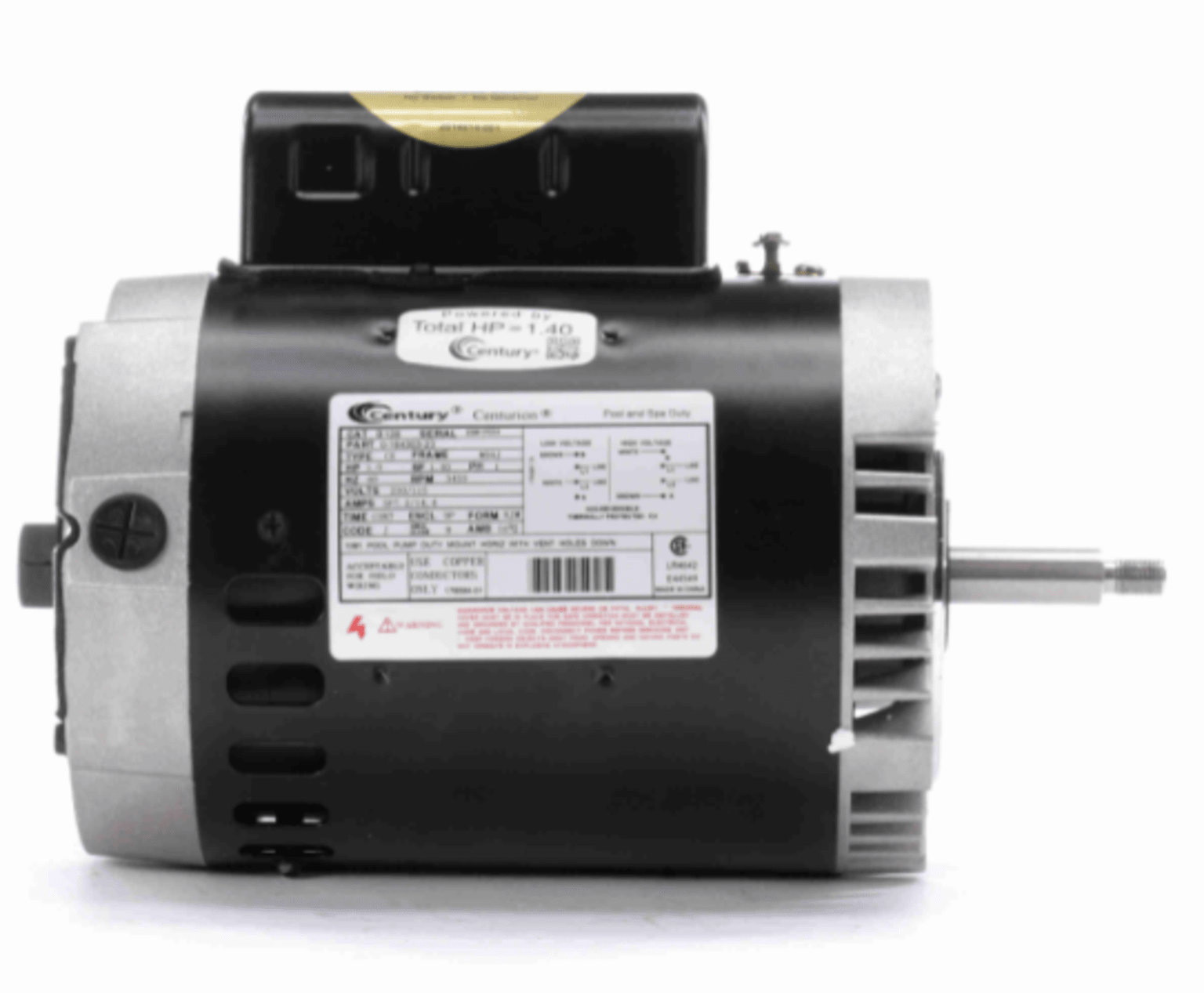

Side view
Nameplate Specs:
Phase: 1
Output HP: 1.0 Hp
Output KW: 0.75 kW
Voltage: 230/115 V
Speed: 3450 rpm
Service Factor: 1.4
Frame: M56J
Enclosure: Drip Proof
Thermal Protection: Thermally Protected
Ambient Temperature: 50 °C
Frequency: 60 Hz
Current: SF 7.2/14.4 A
Duty: Continuous
Insulation Class: B
UL: Recognized
CSA: Y
Number of Speeds: 1
Technical Specs:
Electrical Type: Permanent Split Capacitor, Single Or Dual Voltage
Poles: 2
Rotation: Counterclockwise Pump End
Mounting: C Face
Motor Orientation: Horizontal
Drive End Bearing: Ball
Opp Drive End Bearing: Ball
Frame Material: Rolled Steel
Shaft Type: 7/16" Threads
Overall Length: 12.14"
Frame Length: 6.75"
Shaft Diameter: 0.625"
Shaft Extension: 2.57"
Front view
California Title 20 Compliant Options
Century Motors currently manufactures six pool pump replacement motor models that conform to the CEC standards: V-Green EVO Models EVC130, EVC165, EVC225, EVQ130, EVQ165, and EVQ225. These models are designed to meet the energy efficiency standards set forth by the CEC, making them an ideal choice for pool owners in California who want to reduce their energy consumption and environmental impact.
In addition to helping the environment, complying with CEC regulations can also help pool owners save money on their energy bills. By choosing an energy-efficient pool pump and motor, pool owners can reduce their energy consumption and lower their energy costs over time.
Specs & Details
| Product Name | Threaded FR 1HP 115/230V B128 |
| Manufacturer Part Number | B128 |
| Sku | MGT-60-5099 |
| UPC | 786674011893 |
