Sta-Rite MasterTemp & Sta-Rite Max-E-Therm Tube Sheet Coil Assembly Kit

Pentair MasterTemp & Sta-Rite Max-E-Therm Tube Sheet Coil Assembly Kit, Models 400NA & 400LP, Prior to 1-12-09, 77707-0234

Features

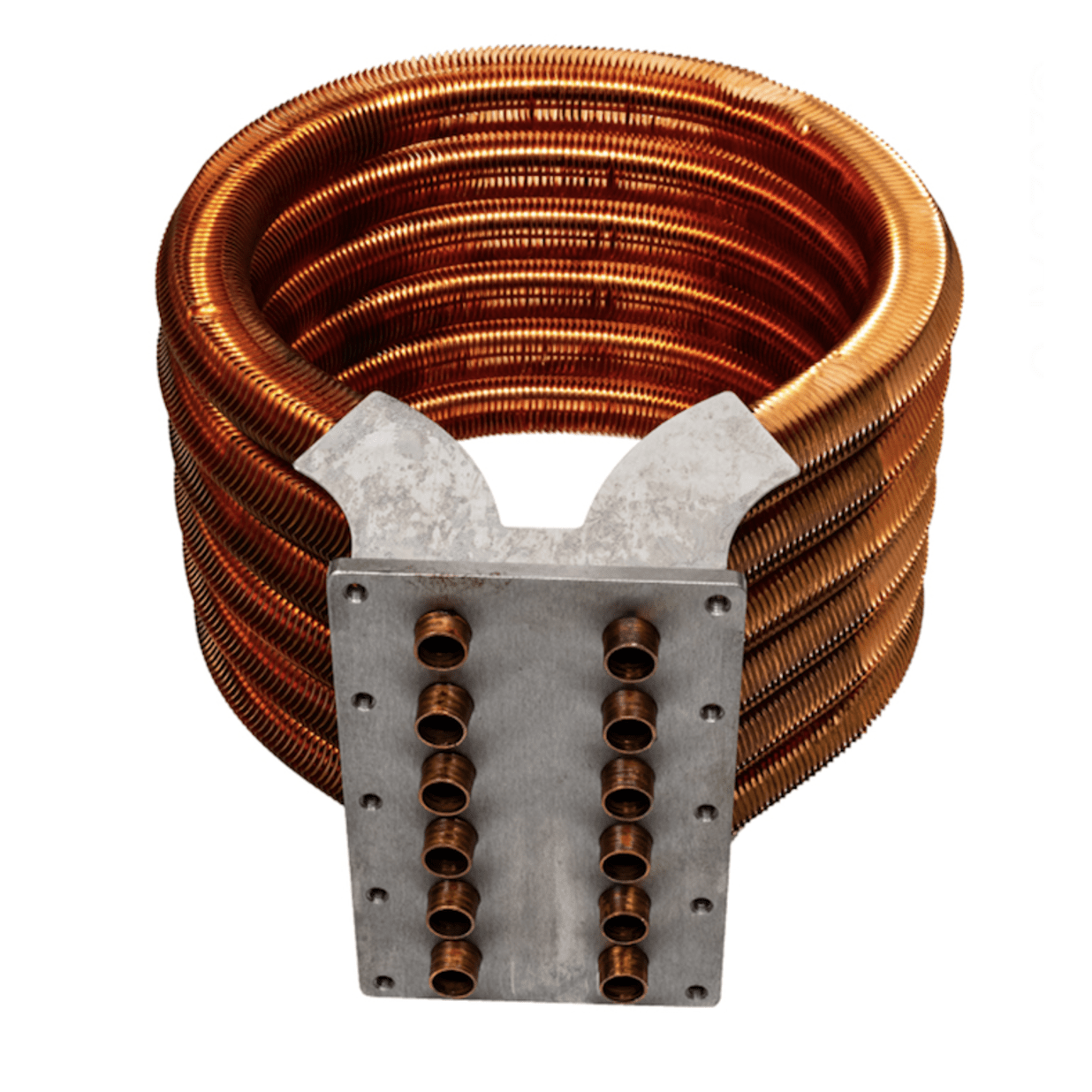

• The tubes on Pentair MasterTemp & Sta-Rite Max-E-Therm heat exchangers (tube sheet assembly) is a generally round shape instead of being straight and flat like most other heaters on the market.

• The plate at the end of the tubes measures 5-1/2" wide x 8-1/2" tall.  Approximate width side to side is 13".  The approximate length from the end of the plate to the opposite end of the coil is 15".

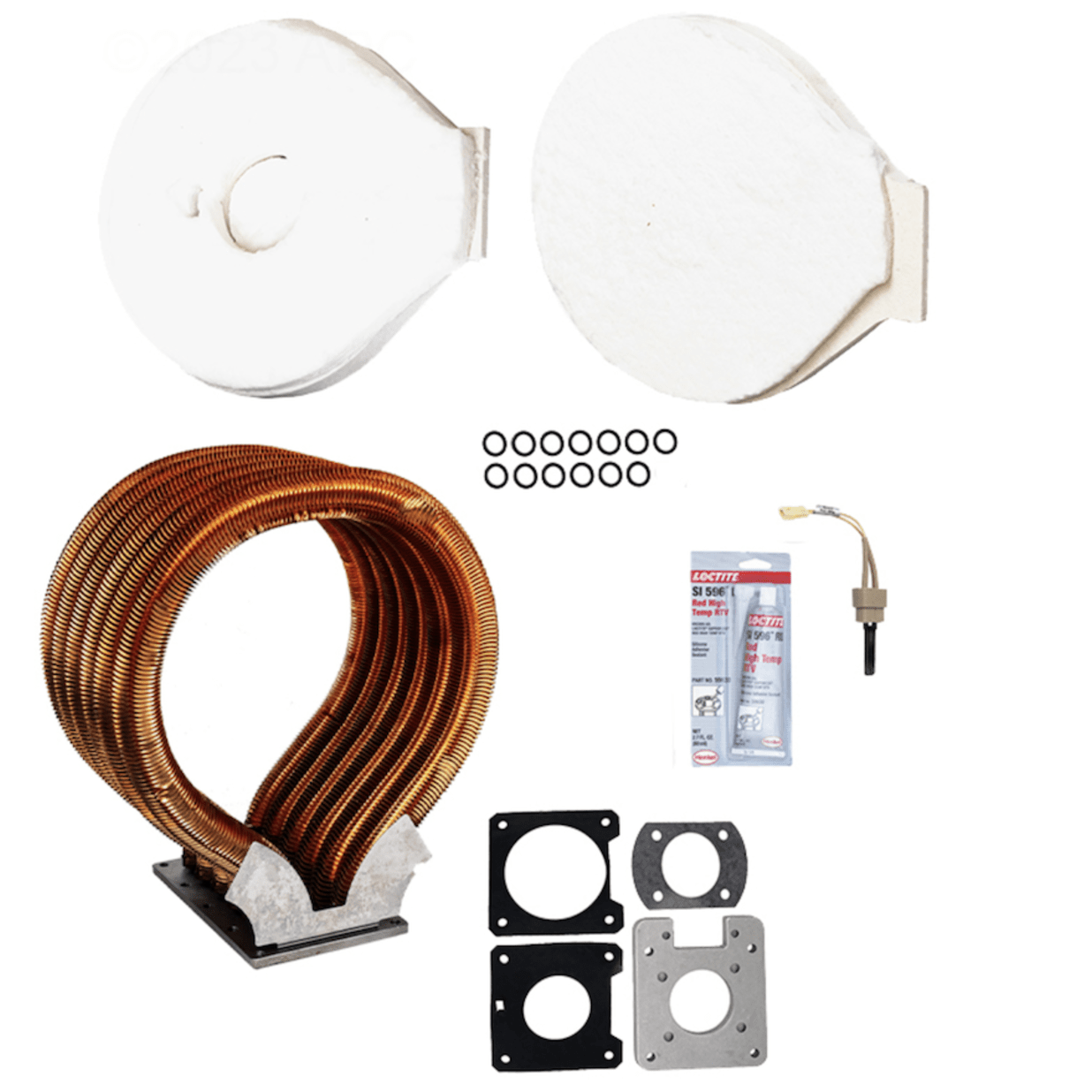

• This kit includes:

  • 8 - O Ring coil

  • 8 - Tube sheet seal

  • 1 - Tube sheet coil assembly 250

  • 1 - Label sheet metal warning

  • 1 - O-ring metal tube replacement

  • 1 - Manifold bypass valve package

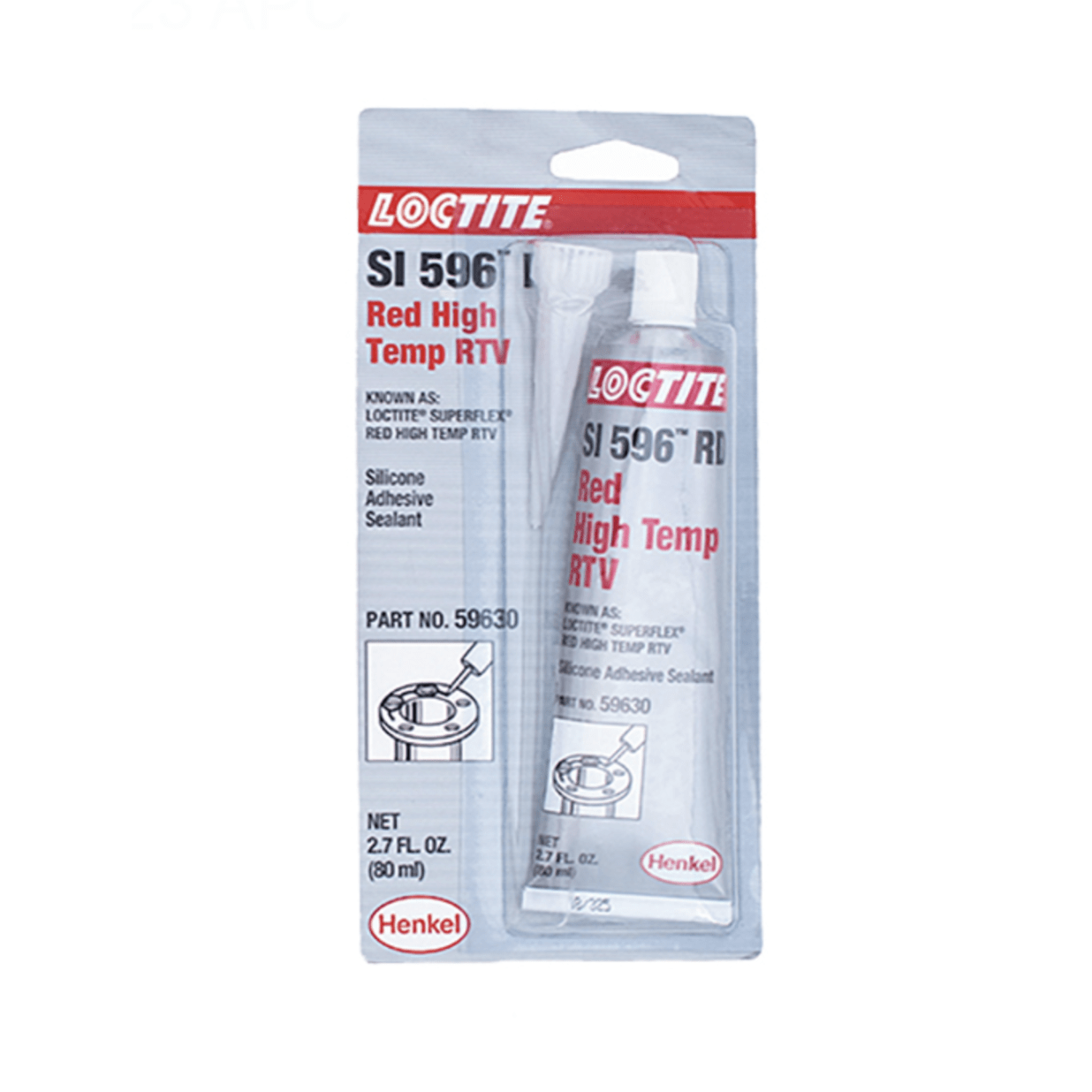

  • 1 - Tube of high temp RTV silicone

  • 1 - Servie kit koala wool insulation

  • 1 - Blower/adapter plate gasket

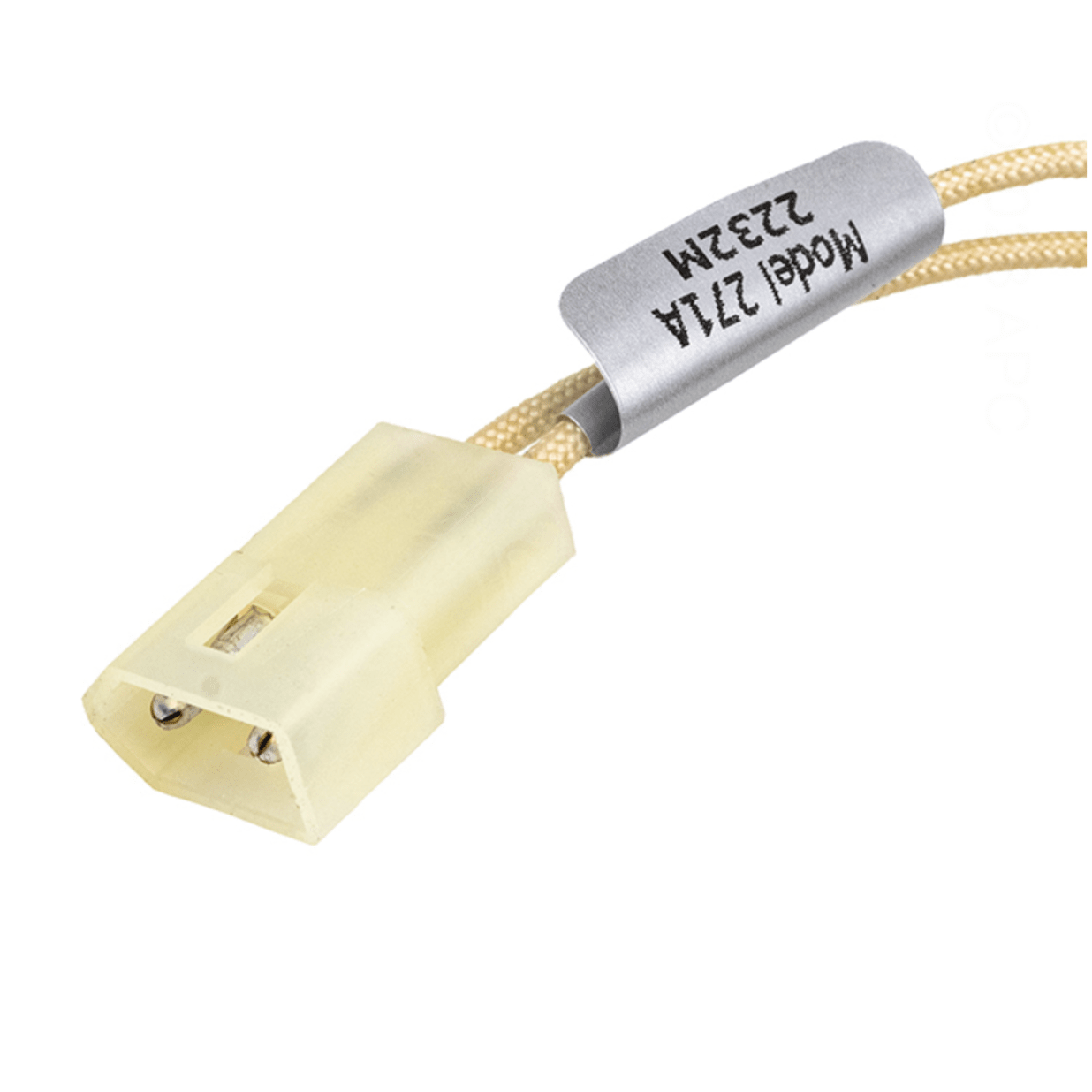

  • 1 - Ignitor and gasket kit heater
