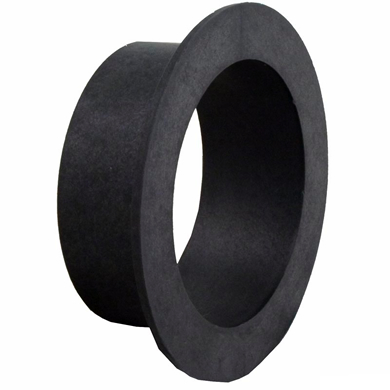

EXECUTIVE PUMP CURRENT STYLE WEAR RING.
THIS IS USED ON THE 3/4, 1, 1-1/2, 2, AND 3 HP PUMPS

THIS FITS OVER THE INLET OF THE IMPELLER WITH THE LARGE SIDE
FACING AWAY FROM THE IMPELLER

MATERIAL: BLACK PLASTIC

DIMENSIONS:

SPECIAL NOTE: THE 5039-13 WEAR RING FOR THE 4 & 5 HP EXECUTIVE PUMPS
HAS THE SAME DIAMETER DIMENSIONS BUT IS SHORTER FRONT TO BACK

OUTSIDE DIAMETER: 3-3/8" (LARGE END)

OUTSIDE DIAMETER: 2-9/16" (SMALL END)

INSIDE DIAMETER: 2-3/8"

FRONT TO BACK: 1-1/16"

MARKINGS:

319-1380 EXECUTIVE 1,2,3 HP
ARE MOLDED ON THE INSIDE LIP
