<p>US Seal PS201. This is the industry standard for general pool and spa applications. Buna rubber, Graphitic Plastic seal face. These seals are not recommended for pools or spas with salt chlorine generator, ozonator, or hydrogen peroxide based sanitizer. For these type of applications it is recommended to use the<a title="Heavy Duty Version of the PS201" href="http://www.poolzoom.com/heavy-duty-seal-assembly-viton-carbon.html" target="_self"> Heavy Duty PS-3868</a> seal, this seal offers better resistance to abrasion, heat and chemicals. Approximately 13/16" Tall (Not Compressed) 3/4" ID 5/16" Thick White Porcelain Piece: 1 1/4" OD</p>

Replacement O-Ring, measures 6-3/4" Inside Diameter, 3/16" thickness.

Top O-Ring

OEM Jacuzzi 9" Tall Basket Assembly - Jacuzzi Magnum Force Pumps PRIOR 2003

Strainer Cover. 8388 Stamped into bottom lip. OD 6-3/4"

<p>Jacuzzi 16-1097-04-R Basket Assembly - Magnum &amp; Magnum Plus PRIOR 2003</p><p>Top Outside Dimension 5-13/16" Top Inside Dimension 5-1/8" Basket Height 8-3/4" Bottom Outside Dimension 5" OEM Number 16-1097-04 Number on Basket 9978</p>

Magnum Force Housing Strainer Kit After 2/03 Jacuzzi This includes; Lid, Locking Ring, O-Rings, Basket, Pump Pot, Motor Support, Drain Plug. (RETRO FIT FOR MAGNUM PLUS)

<p>Jacuzzi Magnum Plus Body Only.</p>

Impeller, 1hp FR - 1.5hp UR

<p>12" Jacuzzi Pump Basket Assembly - Magnum Force AFTER 2003</p><p>5-3/4" top </p><p>12" tall </p><p>5-1/4" bottom</p>

<p>Jacuzzi Magnum Pump Seal Kit, includes : Pump Seal (1), Case O-ring (1), Plug O-ring (1), Strainer O-ring (after 7/89) (1), Diff. Square Ring (1)</p>

Impeller .75HP FR/1HP UR

Jacuzzi Magnum, Magnum Plus and Magnum Force Pump Parts Impeller 3HP FULL/UP RATE 5-1/2" Diameter

Jacuzzi Impeller, 1 HP FULL, 1-1/2 UPRATE, AFTER 12/1/04| Jacuzzi Impeller DIAMETER: 4-7/8" DIAMETER OF INTAKE: 2" NUMBER OF VANES: 6 OUTSIDE EDGE THICKNESS: 7/16" INSIDE THICKNESS: 3/16 HP: 1 HP FULL RATED, 1-1/2 HP UP RATED

Flapper Assembly

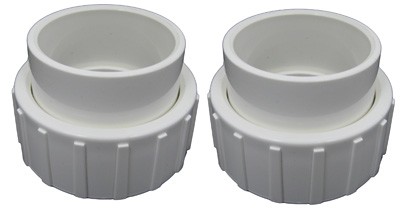

Union Half Kit - 2 each. Jacuzzi Magnum Pump

Impeller, 2HP HH

Jacuzzi Impeller Diameter: 4-3/16" Diameter of Intake: 2" Number of Vanes: 4 HP: 1/2 HP FULL RATED, 3/4 HP UP RATED "9718" Molded into plastic.

Replacement o-ring for Jacuzzi Pumps and filters. <b>Dimensions</b> Inside Diameter: 1/2" Outside Diameter: 11/16" Thickness: 3/32"

Impeller 1HP FR/1.5HP UR
