Century Energy Efficient Square Flange FR 2HP 2 Speed 230V
Century SQS1202R
Starting at $ /mo with Affirm. Prequalify now
Century Full-Rated Two-Compartment 2 HP 2 Speed Pool Pump Motor, F/C-Type.
Used with: Sta-Rite Dura-Glas, Max-e-Glas I & II, Max-E-Pro
Key Features:
Two Speed
All Copper Windings
Energy Efficient
50°C Ambient
Capacitor Start Low Speed
PSC High Speed
Open Dripproof
UL 1081 Design
303 Stainless Steel Shaft
Note: NOT California Title 20 Compliant.
Product Overview

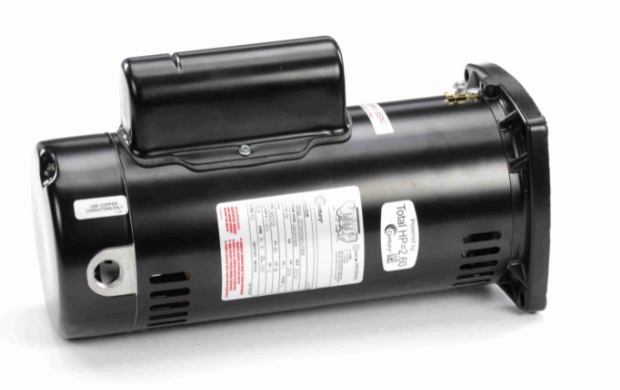

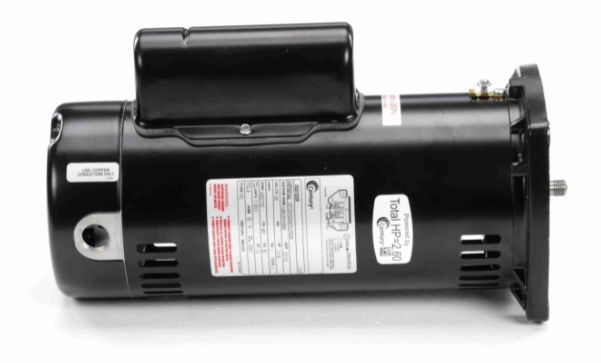

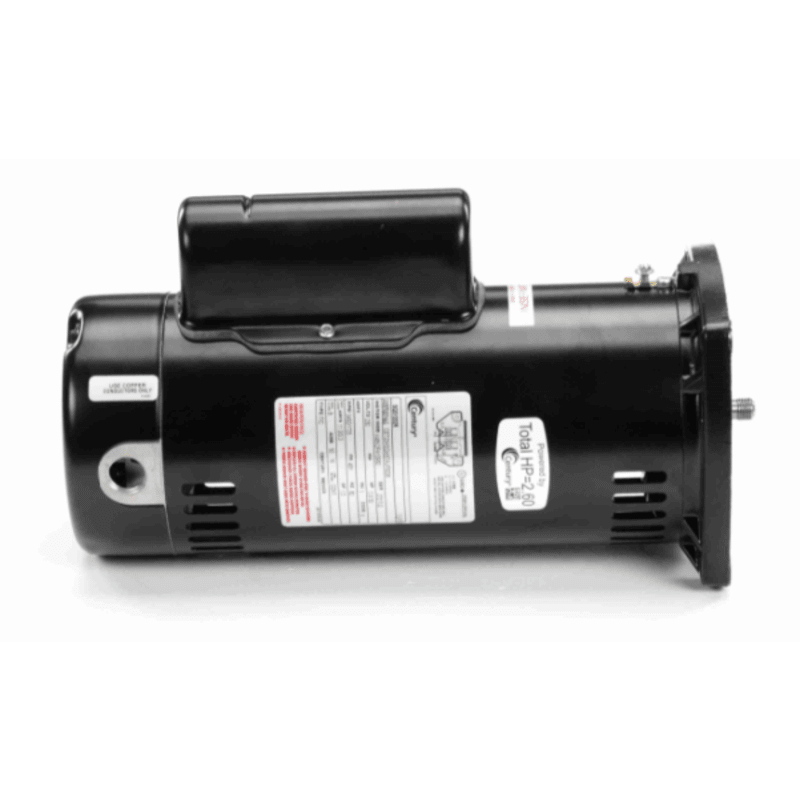

Side view
Nameplate Specs:
Phase: 1
Output HP: 2.0/.33 Hp
Output KW: 1.5 kW
Voltage: 230 V
Speed: 3450/1725 rpm
Service Factor: 1.3
Frame: 48Y
Enclosure: Open Drip Proof
Thermal Protection: Thermally Protected
Ambient Temperature: 50 °C
Frequency: 60 Hz
Current: 11.3/3.3 A
Duty: Continuous
Insulation Class: B
UL: No
CSA: N
Number of Speeds: 2
Technical Specs:
Electrical Type: Psc Low Speed, Cap Start High Speed
Starting Method: Across The Line
Poles: 2
Rotation: Counterclockwise Pump End
Mounting: Round
Motor Orientation: Horizontal
Drive End Bearing: Ball
Opp Drive End Bearing: Ball
Frame Material: Rolled Steel
Shaft Type: 1/2" Thread
Overall Length: 14.51"
Frame Length: 10.63"
Shaft Diameter: 0.625"
Shaft Extension: 0.906"
Front view
California Title 20 Compliant Options
Century Motors currently manufactures six pool pump replacement motor models that conform to the CEC standards: V-Green EVO Models EVC130, EVC165, EVC225, EVQ130, EVQ165, and EVQ225. These models are designed to meet the energy efficiency standards set forth by the CEC, making them an ideal choice for pool owners in California who want to reduce their energy consumption and environmental impact.
In addition to helping the environment, complying with CEC regulations can also help pool owners save money on their energy bills. By choosing an energy-efficient pool pump and motor, pool owners can reduce their energy consumption and lower their energy costs over time.
Specs & Details
| Product Name | Energy Efficient Square Flange FR 2HP 2 Speed 230V |
| Manufacturer Part Number | SQS1202R |
| Sku | AOS-60-5078 |
| UPC | 786674031259 |
