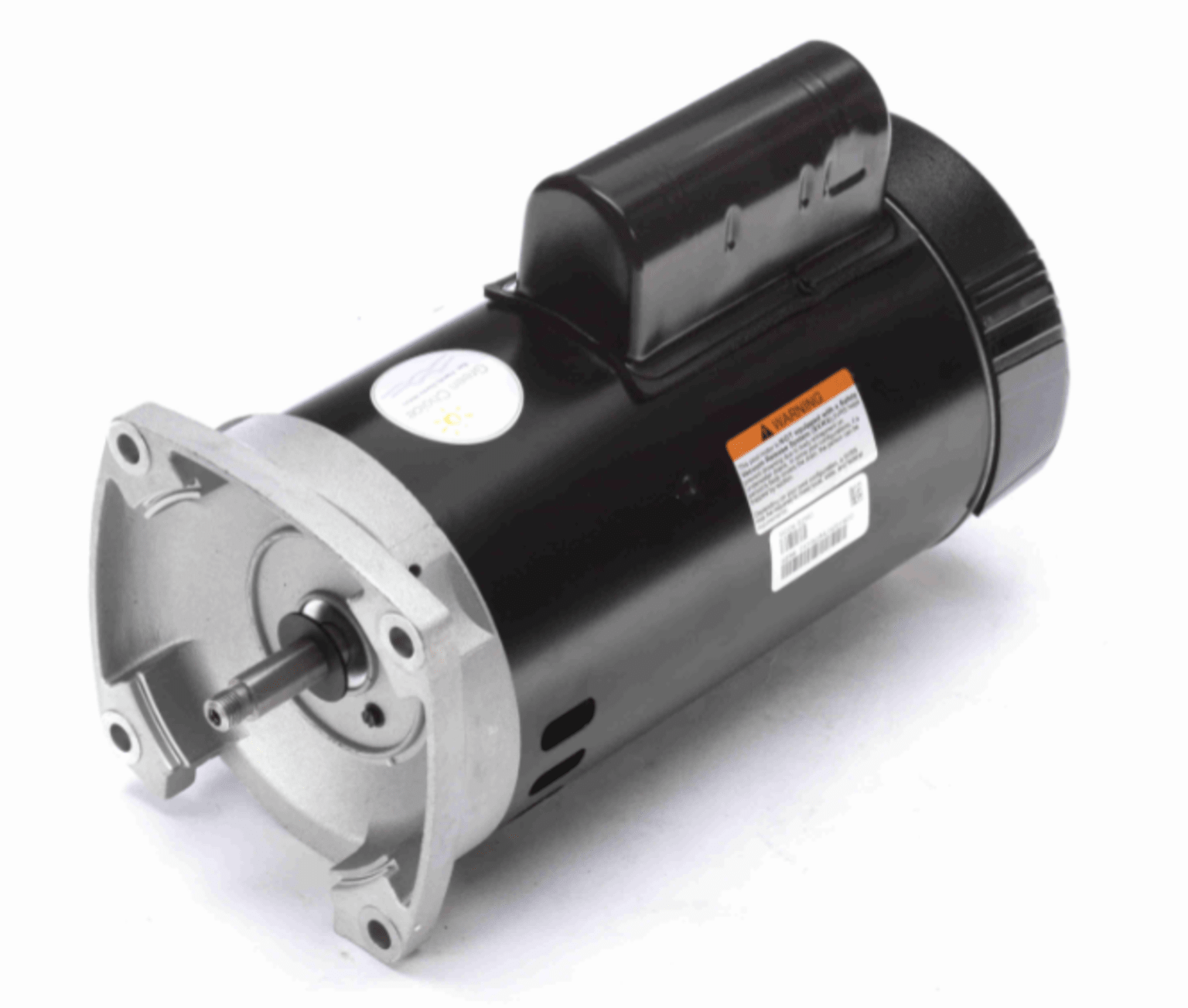

Century Motor, Full-Rated, Two-Speed, 1.5 HP 1.47 SF 230v (B2983)

Century B2983

Write a Review Ask a question

Starting at $ /mo with . Prequalify now

In Stock
Rewards
Earn 449 points | Join or Sign In
Add product protection offered by
Quick Overview

Motor, Full-Rated, Two-Speed, 1.5 HP 1.47 SF 230v (B2983)

  • Two Speed

  • Sealed Ball Bearings

  • 50°C Ambient

  • Energy Efficient High and Low Speed

  • Open Dripproof

  • Permanent Split Capacitor on High Speed

  • Cap Star/Cap Run Low Speed

  • 303 Stainless Steel Shaft

  • Threaded Shaft

  • Note: This motor is NOT California Title 20 Compliant. It can not be shipped or installed in California.

Questions? Contact our pool professionals:
Frequently Purchased Together
Nothing is already selected
Product Overview

Important Information for California Residents and Title 20 Compliant Options

This motor does not meet California Title 20 compliance. This motor cannot be sold, shipped, or installed in the state of California. Century Motors currently manufactures six pool pump replacement motor models that conform to the CEC standards: V-Green EVO Models EVC130, EVC165, EVC225, EVQ130, EVQ165, and EVQ225. These models are designed to meet the energy efficiency standards set forth by the CEC, making them an ideal choice for pool owners in California who want to reduce their energy consumption and environmental impact.

In addition to helping the environment, complying with CEC regulations can also help pool owners save money on their energy bills. By choosing an energy-efficient pool pump and motor, pool owners can reduce their energy consumption and lower their energy costs over time.

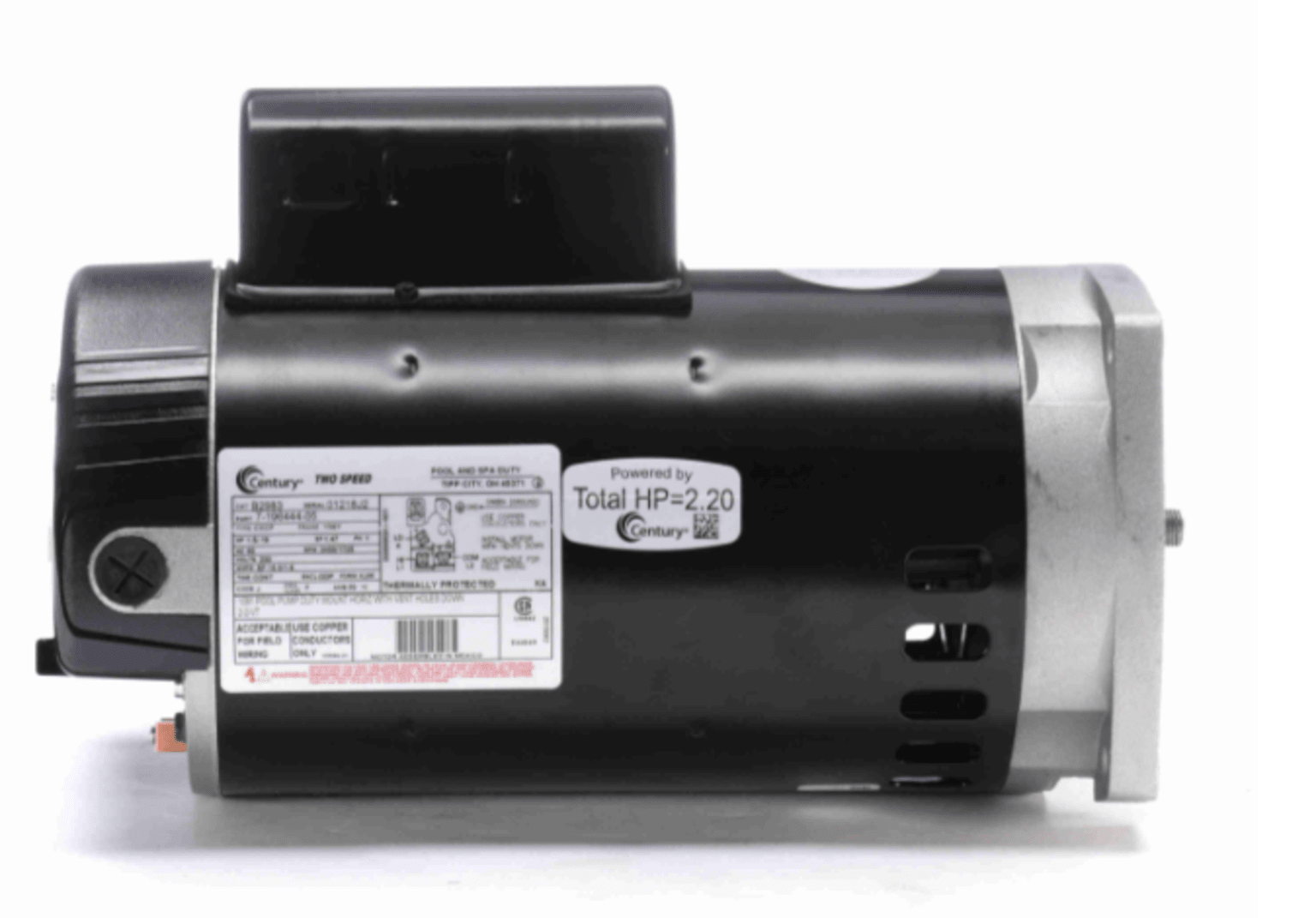

Nameplate Specs:

  • Phase:1

  • Output HP: 1.5/.19 Hp

  • Output KW: 1.1 kW

  • Voltage: 230 V

  • Speed: 3450/1725 rpm

  • Service Factor: 1.47

  • Frame: Y56Y

  • Enclosure : Open Drip Proof

  • Thermal Protection: Thermally Protected

  • Ambient Temperature: 50 °C

  • Frequency: 60 Hz

  • Current: SF 10.0/1.6 A

  • Duty: Continuous

  • Insulation Class: F

  • UL: Recognized

  • CSA: Y

Technical Specs:

  • Electrical Type: Psc Low Speed, Cap Start/Cap Run High Speed

  • Poles:2/4

  • Rotation: Counterclockwise Pump End

  • Mounting: Round

  • Motor Orientation: Horizontal

  • Drive End Bearing: Ball

  • Opp Drive End Bearing: Ball

  • Frame Material: Rolled Steel

  • Shaft Type: 1/2 Threaded

  • Overall Length: 13.90"

  • Frame Length: 9.50"

  • Shaft Diameter: 0.625"

  • Shaft Extension: 0.91"

Specs & Details

Product Name Motor, Full-Rated, Two-Speed, 1.5 HP 1.47 SF 230v (B2983)
Manufacturer Part Number B2983
Sku MGT-60-2983
UPC 786674031242
Manufacturer
Century
Century
75%% of 100
Discover Century, a Regal Brand, your ultimate destination for motors tailored to meet every leisure water application imaginable! Our extensive range ... Show More Discover Century, a Regal Brand, your ultimate destination for motors tailored to meet every leisure water application imaginable! Our extensive range includes NEMA 48 and 56 frame motors designed specifically for spas, in-ground pools, above ground pools, pool cleaners, and jetted tubs, catering to all your leisure water pump requirements. Century is your go-to source for cutting-edge electric pump motor innovations. Show Less
