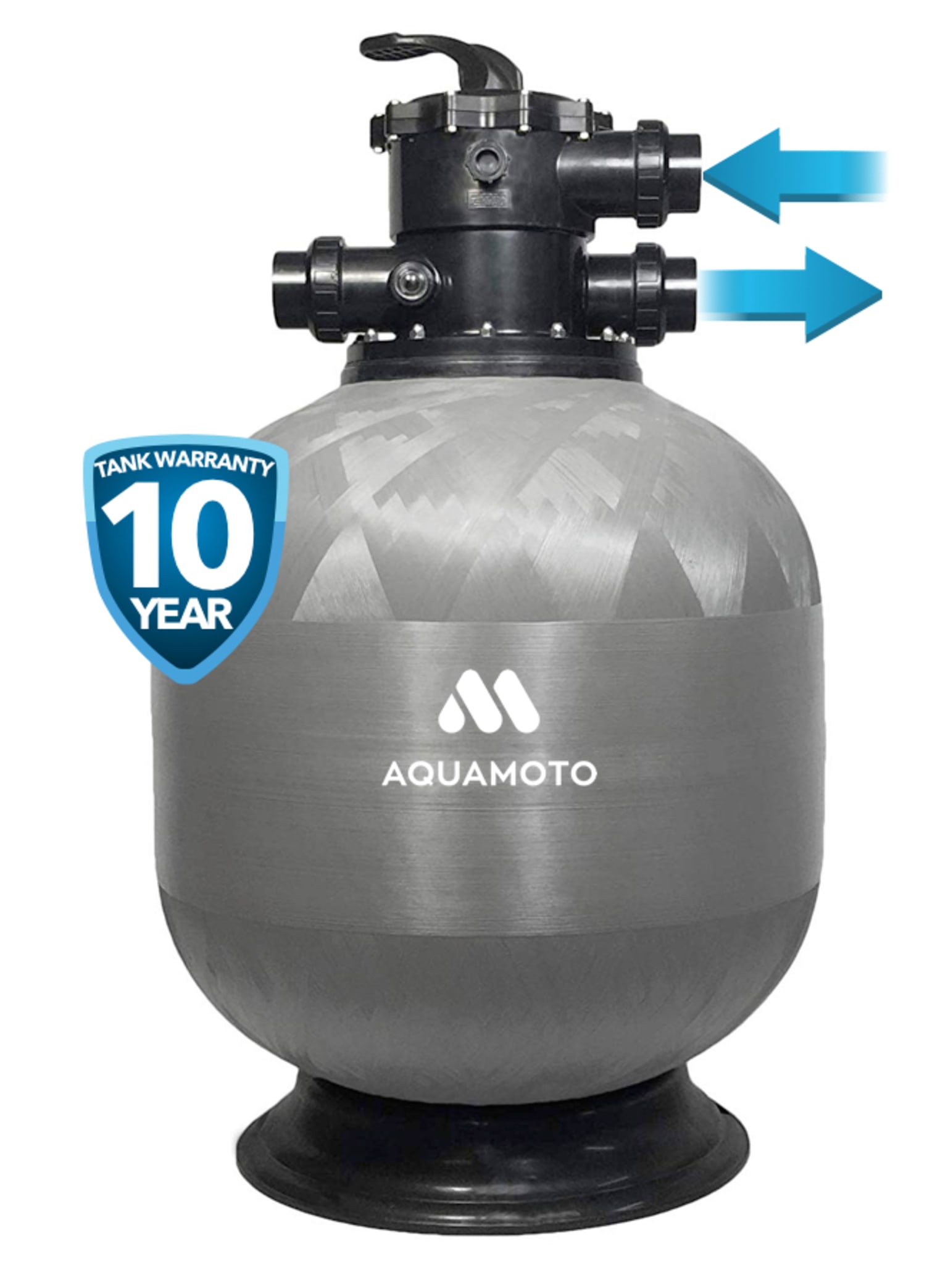

Aquamoto EcoPixel 24" Glass Media Pool Filter with 2" Valve
10-55242
The fiberglass constructed tanks of the EcoPixel filters showcase the latest technology in filter construction. The fiberglass vessels contain an inner shell of polyester resin wound with a sturdy fiberglass filament, creating a seamless one-piece design. The refined consistency and unmatched

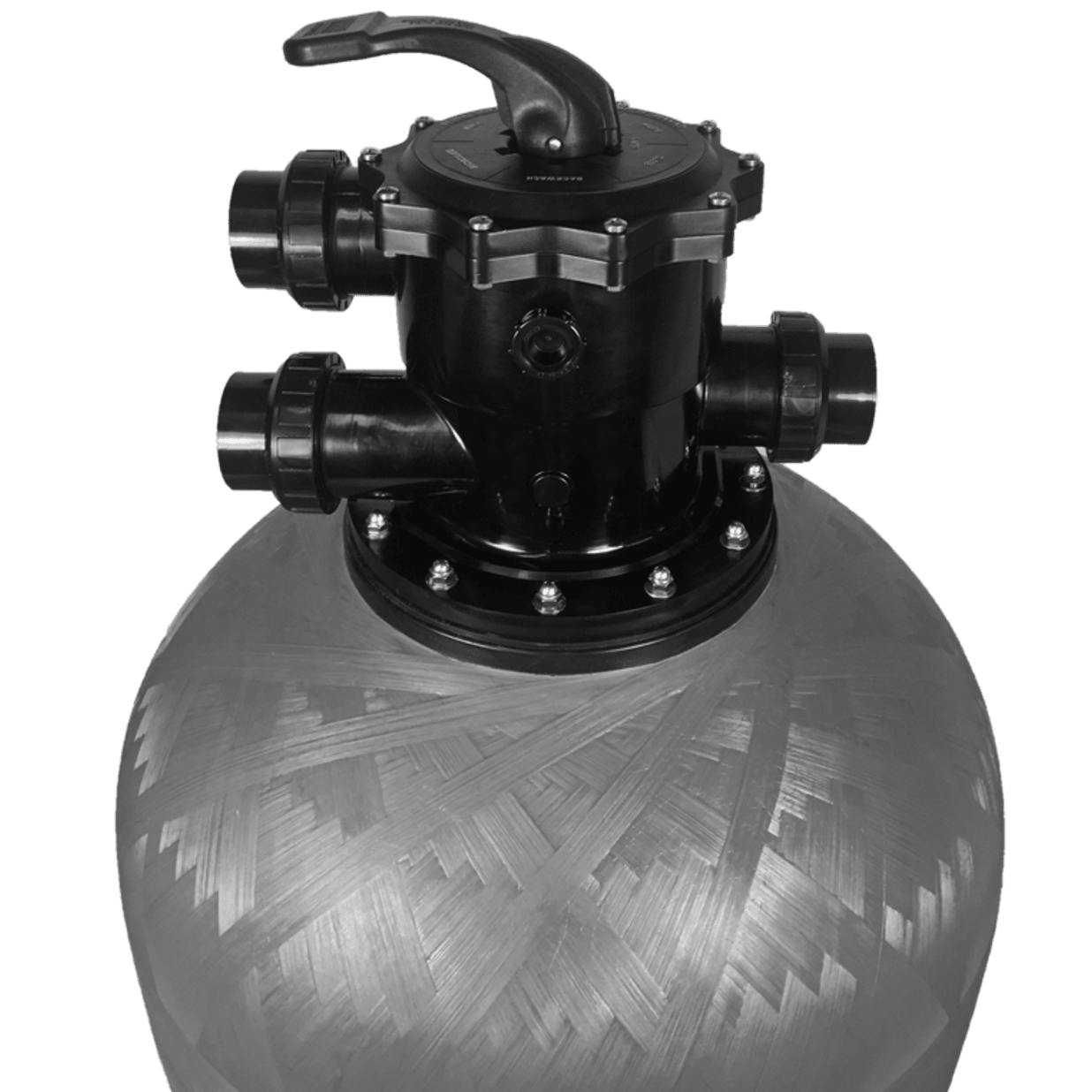

quality of Ecopixel filters,make it possible for a 10 year tank warranty. Featuring 2″ plumbing on the oversized backwash valve and filter internals, they require less energy than any other media filters to operate. The innovative lateral design provides effective coverage of the filter bed and balanced water flow, making it ideal for energy efficient pumps. That means lower pressure, longer life, and lower energy bills.
- Faster backwash, uses 30% less water.
- Tough fiberglass wound construction
- Branched high density lateral design
- Ideal for energy efficient pumps
- 10 Year Tank Warranty
- 280 lbs Pixel Media Required (7 Bags)
Product Overview
Designed with 2″ valve ports, and a 2″ internal stand-pipe assembly with a branched lateral assembly that reduces the filter’s overall resistance to water flow. This means it takes less energy to move one gallon of water through the filter as compared to traditional sand filters.

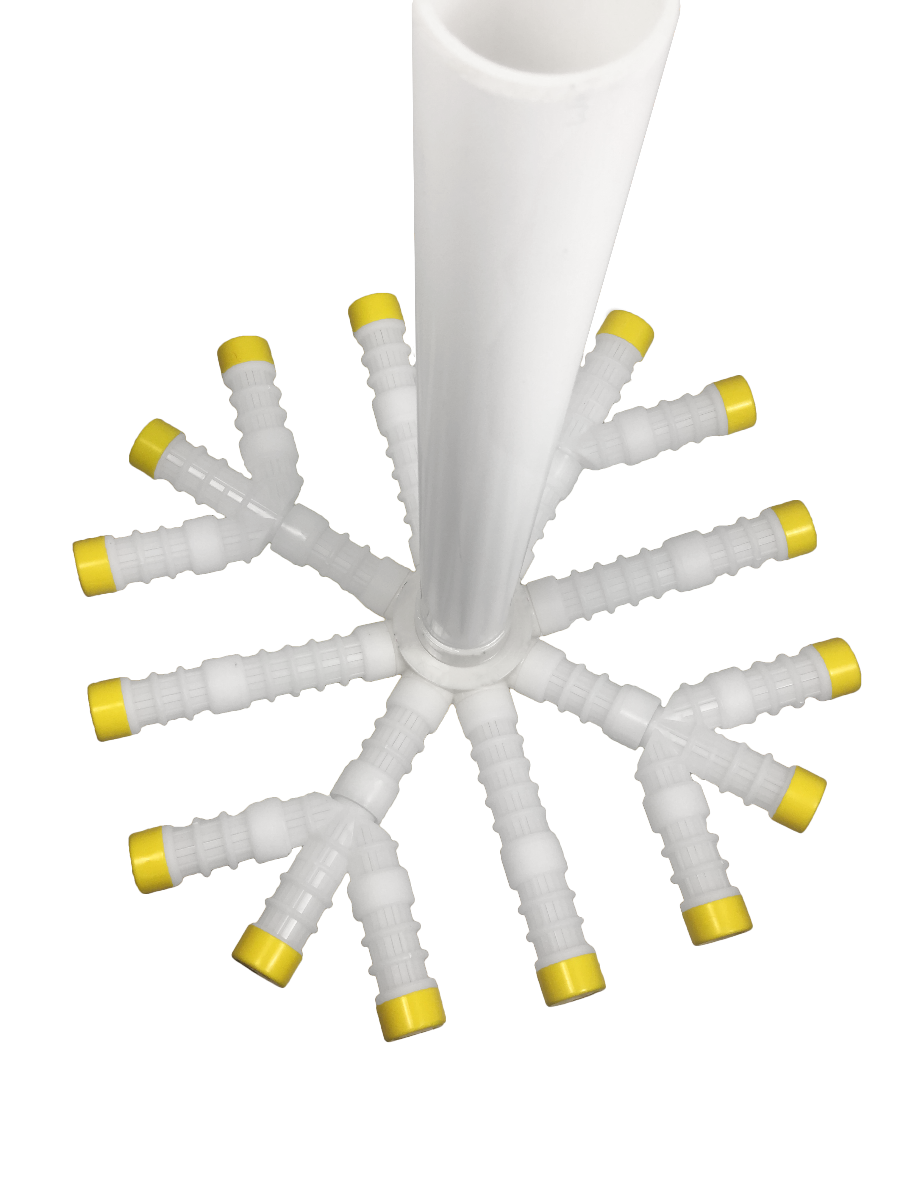

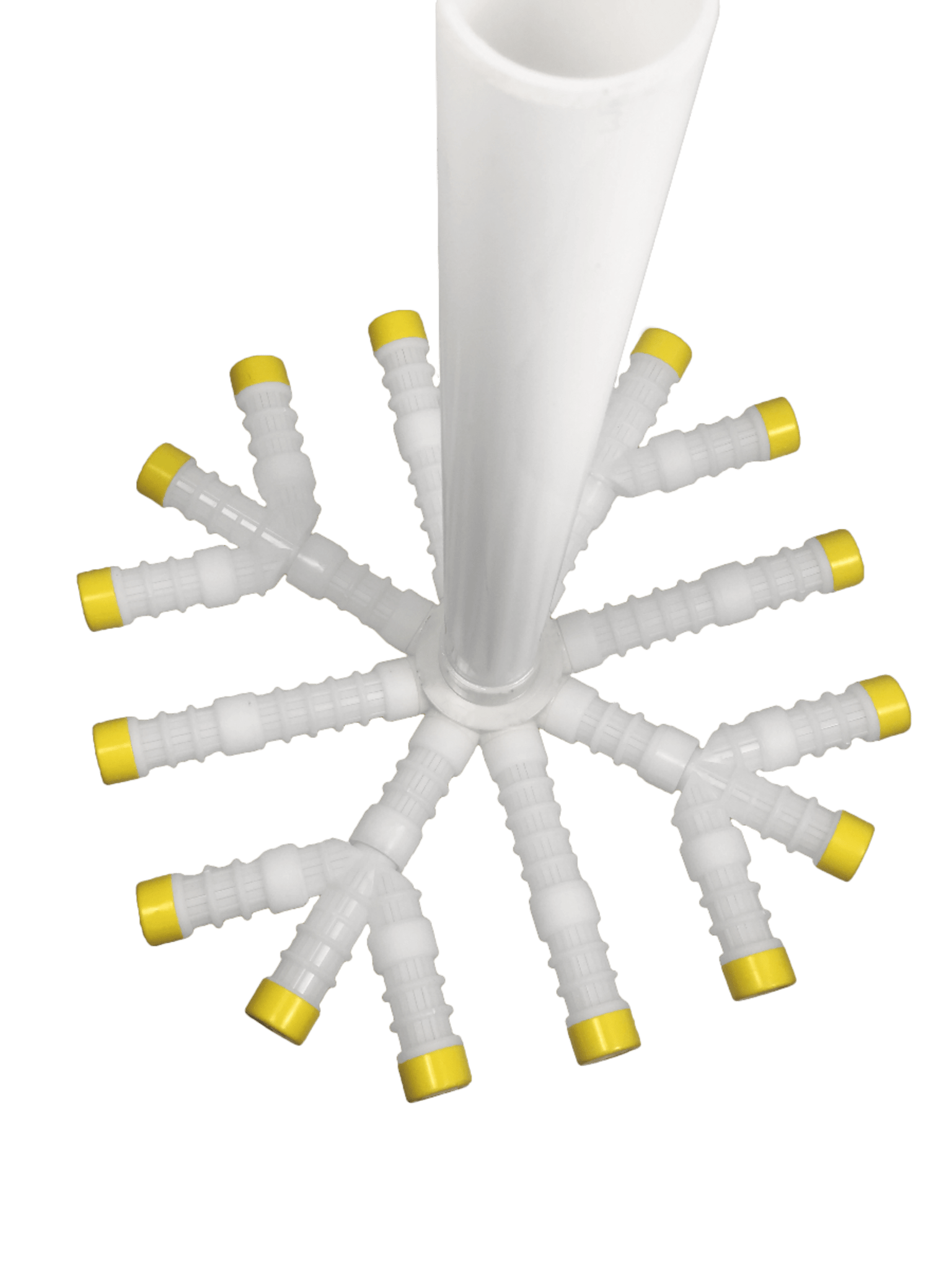

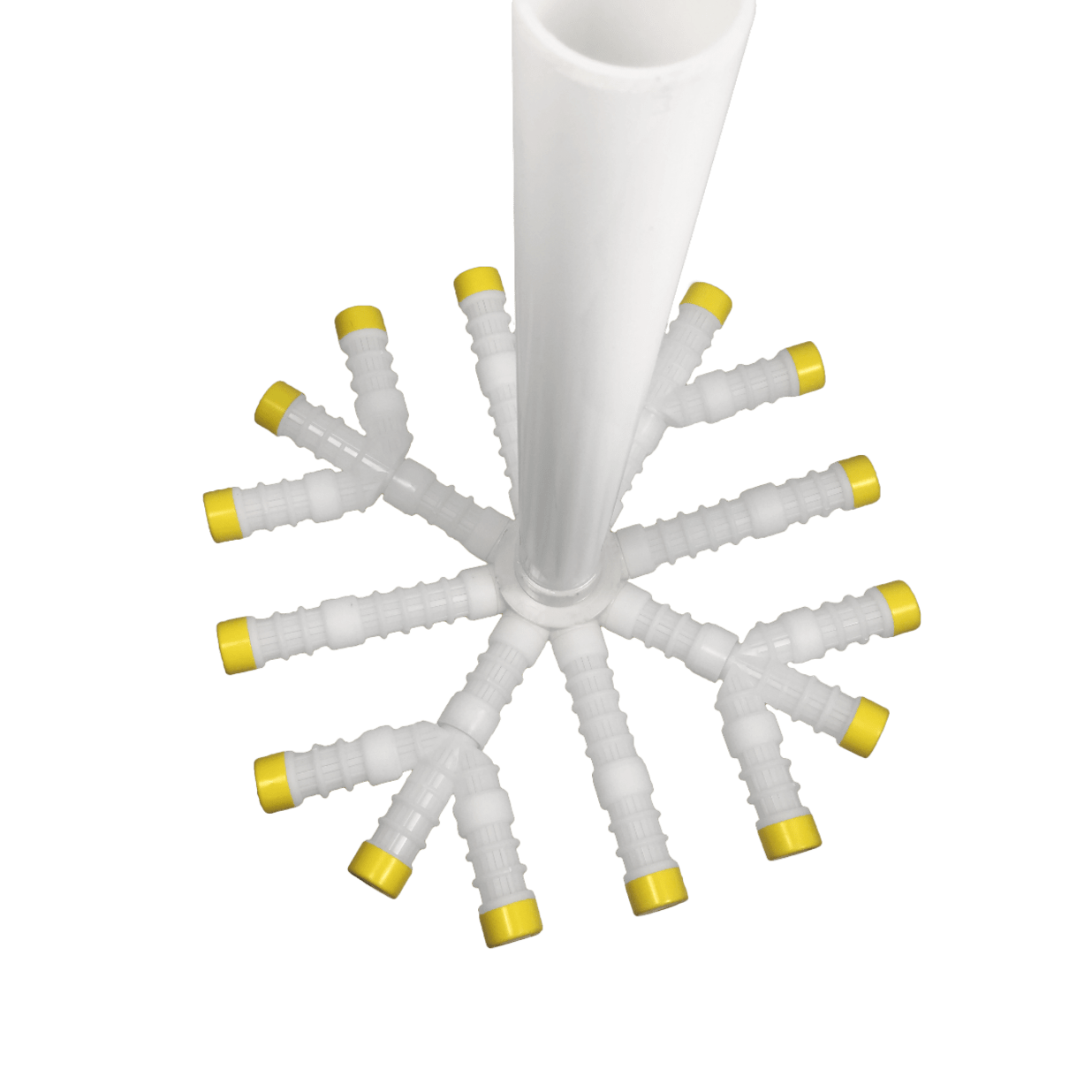

EcoPixel filters are equipped with HD “branched” laterals, this innovative design improves filtration and backwashing hydraulic efficiency. The HD Lateral assembly gives the EcoPixel complete coverage of the filter bed, utalizing more area of the filter media for the filtering process. Since the the water flow is significantly increased, thus reducing the backwash time leading to a 30% savings of water.

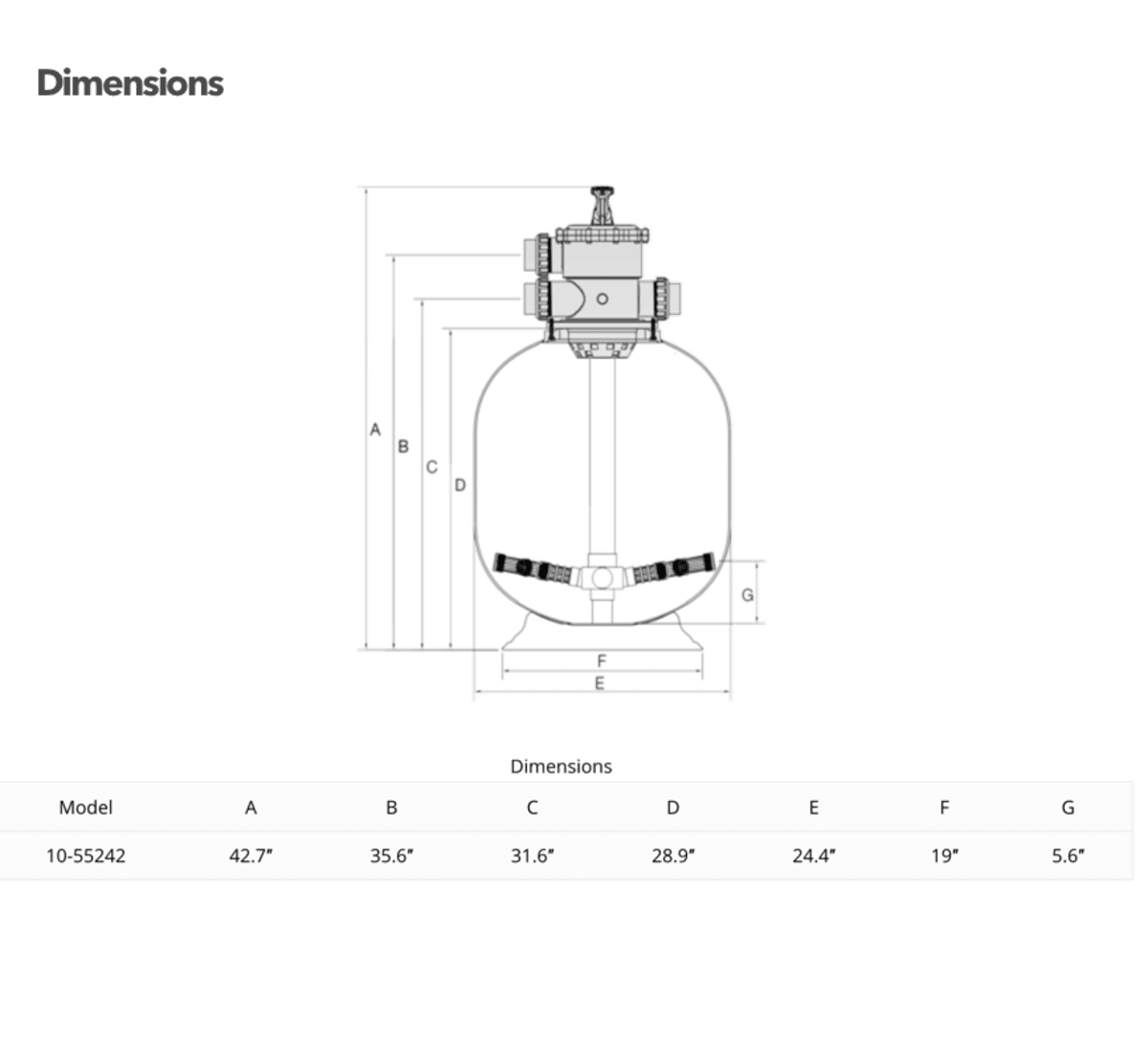

Technical Specifications
Valve Size: 2"
Inner Tank Diameter: 23.6"
Filter Area: 3.01ft2
Bed Depth: 11.61"
Max Flow Rate: 59.7 gpm

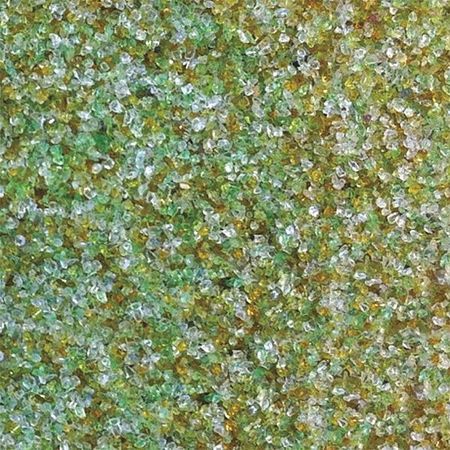

Amount of crushed glass filter media needed: 280 lbs (7 x 40lb bags)
Confidence is in the warranty. The Aquamoto filter are construction of the highest quality fiberglass that they are backed by a 10-year tank warranty, and a 1-year warranty on all other components.
Specs & Details
| Product Name | EcoPixel 24" Glass Media Pool Filter with 2" Valve |
| Manufacturer Part Number | 10-55242 |
| Sku | AQM-10-55242 |
| UPC | 850001454001 |
As I mentioned before, the sand filter isn’t filtering at all. I called more than 30 times and can’t connect to your lines.I also sent few emails with photos snd a video snd still got no solution to the problem. Three was no installation nor warranty nor any product information in the box I received. I will be stopping payment on my credit card until my unit is replaced or fixed by your company.
Great price waiting for glass and pump!
I found this filter to be exceptionally well built and very heavy duty. The fiberglass is at least 5 times thicker than similar Pentair size filters. The valve internals look like they are built for flow and efficiency and the filter internals are very rugged and sturdy. I will be installing this filter on all my service jobs in the future.
