56j-frame-motors

<p>Single Speed, 2 HP Pool Pump Motor. Round Flange Up Rate 56J Replacement Motor, 115/230V. These A.O. Smith pool motors fit Hayward Max Flow, Hayward Super Pump, Hayward Super II, Hayward Northstar and Jacuzzi Magnum pumps.</p>

<p>Replacement B2975 1HP 2-Speed Full-Rate C-Face 56J Motor, 230V.</p><p><strong>Key Features:</strong></p><ul><li><p>Sealed Ball Bearings</p></li><li><p>Two Speed</p></li><li><p>Energy Efficient</p></li><li><p>Permanent Split Capacitor</p></li><li><p>UL 1081 Design</p></li><li><p>High Speed Switchless</p></li><li><p>Low Speed Microswitch</p></li><li><p>Threaded Shaft</p></li><li><p>303 Stainless Steel Shaft</p></li><li><p><strong>Note:&nbsp;NOT California Title 20 Compliant.&nbsp;</strong></p></li></ul>

<p>2 Horsepower, Motor with Threaded Shaft. 230v. SF 1.2 </p><p></p><p><strong>*NOT FOR SALE OR INSTALLATION IN THE STATE OF CALIFORNIA </strong></p>

The is the A. O. Smith new 2Green 2 speed, premium efficiency replacement pump motor with an integrated timer. This moter packs tremendous value into an easy to install package. Thanks to the 2Green’s energy efficient high and low speed windings paired with the on board timer interface, energy consumption can be reduced by as much as 58% over single speed motors. The all-in-one integrated motor and timer means less work for an installer and maximum energy savings for pool and spa owners. There is no additional wiring required for new construction or retrofit installations.

<p>SINGLE PHASE, VOLTAGE: 115 OR 230 VOLT MAGNETEK PART #8-184980-23 EFFECTIVE HORSEPOWER: 3/4 SERVICE FACTOR: 1.00 LABEL HORSEPOWER: 3/4. HORSEPOWER. THREADED SHAFT; 56J FRAME. AMP DRAW: 8.8/4.4, 8.8 AMPS AT 115 VOLTS . 4.4 AMPS AT 230 VOLTS. DIMENSIONS: LENGTH: 10" (NOT INCLUDING SHAFT) SHAFT LENGTH: 2-1/2" DIAMETER: 6 1/2" MOUNTING HOLES: (4) 5 7/8" CENTER TO CENTER. CAPACITOR RUN CAPACITOR, 25 MF, 370 VOLTS *CURRENT MODEL* MOUNTING ON BACK OF MOTOR. MAGNETEK CATALOG #B227SE SHIPPING WEIGHT: 22.15 LBS</p>

<p>The B229SE is a 1-1/2 HP (horsepower), 1.0 SF (service factor), 3450 RPM. It is 230/115v, 56J FR (frame, round flange). It is a single phase motor.</p>

<p>B796 1-1/2 Horsepower, Energy Efficient Motor with Threaded Shaft 115/208/230V</p>

<p>Threaded Shaft Replacement Full Rate 3HP Energy Efficient Motor 115/208/230V</p>

<p>2 Horsepower, Energy Efficient Motor with Threaded Shaft. 208/230v</p>

<p>Replacement Threaded Shaft Motor, Full Rate .5HP Energy Efficient 115/208/230V</p>

<p>1 Horsepower, Up Rate Motor with Threaded Shaft. 115/230v</p>

THRD UR 2.5HP 230V

<p>THRD UR 2HP 115/230V</p>

<p>Nidec ASB654 FHP Full Rated C-Face Pool &amp; Spa Motor; Open Dripproof, 56J, 1-Speed, 1 HP, 230/115 V, 7/14 A, 3450 RPM, Threaded Shaft</p>

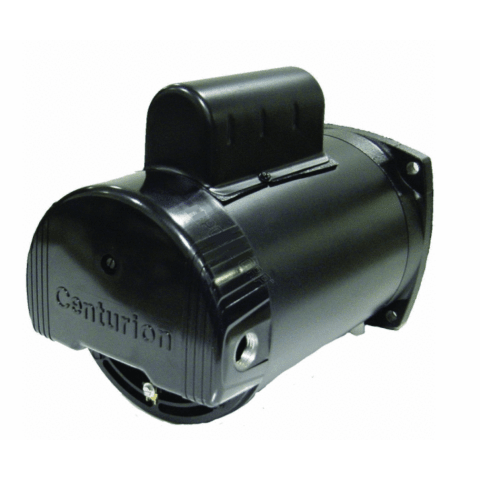

<p>Century Centurion Pro HST080 Pool and Spa Pump Motor; 0.8 HP, 3450 RPM, 115/230 V, 56J, Threaded Shaft</p><p><strong>*This motor is not California Title 20 compliant and cannot be shipped or installed in the state of California.</strong></p>
