Hayward Super Pump, Models SP1600, 1600X, 2600, 2600X Parts

<p>Energy Efficient, Full Rated 1.5 horsepower motor. 1.30 Service Factor, 115/230V. Round Flange, 56J Frame. 3450 RPM. <strong>Used with: </strong>Hayward Super II Energy Efficient, Hayward NorthStar Full Rate and Jacuzzi Magnum Full Rate pumps.</p><p><strong>Key Features:</strong></p><ul><li><p>Sealed Ball Bearings</p></li><li><p>Capacitor Start-Capacitor Run</p></li><li><p>Sealed Switch Design</p></li><li><p>50°C Ambient</p></li><li><p>303 Stainless Shaft</p></li><li><p>UL 1081 Design</p></li><li><p>304 Bearing Shaft End</p></li><li><p>Threaded Shaft</p></li><li><p>Energy Efficient</p></li><li><p><strong>Note:&nbsp;NOT California Title 20 Compliant.&nbsp;</strong></p></li></ul>

<p>THIS IS A GENERIC WATER SLINGER GASKET WHICH CAN BE USED ON 56J THREADED MOTORS 48Y &amp; 56Y SQUARE FLANGE MOTORS DIMENSIONS: OUTSIDE DIAMETER: 1-11/16" INSIDE DIAMETER: 9/16" THICKNESS: 1/8"</p>

<p>Energy Efficient Pump Motor, Full Rated, 3HP, 230v 56J frame. <strong>Used with:</strong> Jandy HHP &amp; HHPU series, Hayward RS Series, Hayward Super II SP3000 Series.</p><p><strong>Key Features:</strong></p><ul><li><p>Sealed Ball Bearings</p></li><li><p>Capacitor Start-Capacitor Run</p></li><li><p>Sealed Switch Design</p></li><li><p>50°C Ambient</p></li><li><p>303 Stainless Shaft</p></li><li><p>UL 1081 Design</p></li><li><p>304 Bearing Shaft End</p></li><li><p>Threaded Shaft</p></li><li><p>Energy Efficient</p></li><li><p><strong>Note:&nbsp;NOT California Title 20 Compliant.&nbsp;</strong></p></li></ul>

<p><img src="{{media url=" alt="Pump Motor, Full Rated, 2600 Series, 1 HP, Energy Efficient, 1.40 SF, 115/230v (CT1102" /></p> <p><span>Century(R) Full-Rated Two-Compartment Pool Filter Motor, K-Type, Motor Design: Capacitor Start/Run, Open Dripproof Enclosure, 1 HP, 1.4 THP, 3450 RPM, 56J Frame, Voltage Rating: 115/230 V, 13.6/6.8 A, Frequency Rating: 60 Hz, 1-Phase, 1 -Speed, Mounting Type: C-Face, Motor Thermal Protection: Auto, Insulation Class: B, 1.40 Service Factor, Sealed Ball Bearing, Ambient Temperature: 50 deg C, CCWPE Shaft Rotation, Threaded Shaft, Shaft Diameter: 5/8 Inch, Shaft Length: 2-9/16 Inch, Overall Length: 12.13 Inch, 6-1/2 Inch Diameter, Continuous Duty, High Efficiency Group, Flange Material: Aluminum, Shaft Material: 303 Stainless Steel, Satin Black</span></p>

<p>&nbsp;Pump Motor, Full Rated, 2600 Series, 0.75 HP, 1.50 SF, 115/230v (ST1072)</p><p> <strong>Used with:</strong> Hayward Super and Super II Pump.</p><p><strong>Key Features:</strong></p><ul><li><p>Sealed Ball Bearings</p></li><li><p>Capacitor Start</p></li><li><p>Sealed Switch Design</p></li><li><p>50°C Ambient</p></li><li><p>303 Stainless Shaft</p></li><li><p>UL 1081 Design</p></li><li><p>304 Bearing Shaft End</p></li><li><p>Threaded Shaft</p></li><li><p><strong>Note:&nbsp;NOT California Title 20 Compliant.&nbsp;</strong></p></li></ul>

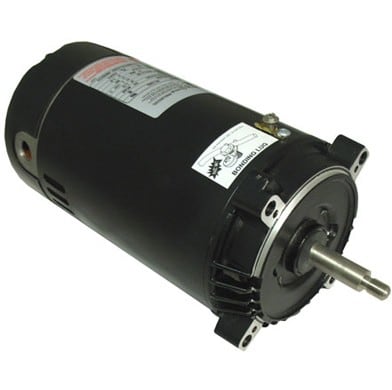

<p>Pump Motor, Full Rated, 2600 Series, 0.50 HP, 1.60 SF, 115/230v (ST1052) </p><p><strong>Used with:</strong> Hayward Super &amp; Super II.</p><p><strong>Key Features:</strong></p><ul><li><p>Sealed Ball Bearings</p></li><li><p>Capacitor Start</p></li><li><p>Sealed Switch Design</p></li><li><p>50°C Ambient</p></li><li><p>303 Stainless Shaft</p></li><li><p>UL 1081 Design</p></li><li><p>304 Bearing Shaft End</p></li><li><p>Threaded Shaft</p></li><li><p><strong>Note:&nbsp;NOT California Title 20 Compliant.&nbsp;</strong></p></li></ul>

THRD FR 3HP 230V

<p><span>Century(R) Full-Rated Two-Compartment Pool Filter Motor, K-Type, Motor Design: Capacitor Start/Run, Open Dripproof Enclosure, 0.75 HP, 1.13 THP, 3450 RPM, 56J Frame, Voltage Rating: 115/230 V, 11.0/5.5 A, Frequency Rating: 60 Hz, 1-Phase, 1 -Speed, Mounting Type: C-Face, Motor Thermal Protection: Auto, Insulation Class: B, 1.50 Service Factor, Sealed Ball Bearing, Ambient Temperature: 50 deg C, CCWPE Shaft Rotation, Threaded Shaft, Shaft Diameter: 5/8 Inch, Shaft Length: 2-9/16 Inch, Overall Length: 11.69 Inch, 6-1/2 Inch Diameter, Continuous Duty, High Efficiency Group, Flange Material: Aluminum, Shaft Material: 303 Stainless Steel, Satin Black</span></p>

Hayward SPX1610Z1M Threaded Shaft Motor For Max-Flo(TM) SP1800X/SP2800X; Super Pumps(R) SP1600X/SP2600X and Super II(TM) SP3000X Series Pumps; 1.5 HP; 115/230 V; 60 Hz
