Jandy Stealth Current Models, SHPH & SHPM Model Parts

<p>Pump Basket for SHPF and SHPM Stealth Pump, WaterFall Series Pump Models SHPF, SHPM, SWF, and &nbsp;Jandy ePump Variable Speed Pump Model JEP</p><p></p><p><strong>Height: 11-3/4"</strong></p><p><strong>Bottom OD: 4-13/16"</strong></p><p><strong>Top ID: 6-1/4"</strong></p><p><strong>Top OD: 7-13/16"</strong></p><p><strong>The Jandy® limited warranty does not apply to Jandy® branded products purchased through the Internet or other e-commerce platforms.</strong></p>

<p>Lid &amp; Locking Ring Assembly w/O-Ring. Stamped A0577900</p><p>Trap Lid Diameter 10-1/16" Trap Lid Material Type Plastic/Clear Trap Lid Type 4 Tab Twist Lock Trap Lid Manufacturer Jandy/Zodiac Model ePump JEP, Stealth SHPF, Stealth SHPM </p><p></p><p><strong>Trap Lid Diameter: </strong>10-1/16"</p><p><strong>The Jandy® limited warranty does not apply to Jandy® branded products purchased through the Internet or other e-commerce platforms.</strong></p>

<p>This is the Polaris OEM Mechanical Shaft Seal is used on a Number of older pumps. </p><p></p><ul><li><p>Jandy Stealth SHPF &amp; SHPM Pumps: <strong>Used on serial number prior to P08FF0001</strong><br></p></li><li><p>Polaris PB4-60 Booster Pumps: <strong>Used on serial number after&nbsp;PB120111001 or&nbsp; starting at AVEH050100</strong></p></li></ul><p><strong>The Jandy® limited warranty does not apply to Jandy® branded products purchased through the Internet or other e-commerce platforms.</strong></p>

<p>Lid O-Ring for SHPF and SHPM Stealth Pumps</p> <p><span style="font-family: arial;">THIS KIT INCLUDES 2 O-RINGS </span></p> <p><span style="font-family: arial;">ONE IS A STANDARD CIRCULAR CROSS SECTION O-RING</span></p> <p><span style="font-family: arial;"> THE OTHER IS A SQUARE CROSS SECTION O-RING </span></p> <p><span style="font-family: arial;">BOTH ARE THE SAME SIZE </span></p> <p><span style="font-family: arial;">OUTSIDE DIAMETER: 8-1/2" </span></p> <p><span style="font-family: arial;">INSIDE DIAMETER: 8"</span></p><p><strong>The Jandy® limited warranty does not apply to Jandy® branded products purchased through the Internet or other e-commerce platforms.</strong></p>

<p>Pump Body for SHPM and SHPF Stealth Pumps</p><p>Drain Plugs NOT included (R0446000)&nbsp;</p><p><strong>The Jandy® limited warranty does not apply to Jandy® branded products purchased through the Internet or other e-commerce platforms.</strong></p>

<ul>Jandy Impeller &amp; Diffuser Kit for 1-1/2 Horsepower Full Rate or 2 Horsepower Up-Rated Pumps</ul> <ul>Please NOTE : R0479400 Mechanical Seal, 5/8" ID is included with all kits.</ul> <ul>This seal is used on all SHPF / SHPM &amp; PHPF / PFPM pumps with serial number P08FF0001 and newer</ul> <ul>If you need the older style R0445500 Mechanical Seal, 13/16" ID, you will need to order the item separately, as it is not included with these kits</ul><p><strong>The Jandy® limited warranty does not apply to Jandy® branded products purchased through the Internet or other e-commerce platforms.</strong></p>

<p>Genuine OEM Jandy Diffuser for 1/2 thru 3 Horsepower Pumps.</p><p></p><p><strong>For Use With:</strong> Jandy Stealth SHPF/SHPM, WaterFeature, MaxHP MHPM, PlusHP PHPF/PHPM Series Pumps and ePump Variable Speed Pumps</p><p><strong>The Jandy® limited warranty does not apply to Jandy® branded products purchased through the Internet or other e-commerce platforms.</strong></p>

<p>The Jandy R0446101, 2"x2-1/2" Tail Piece for 3/4 thru 2-1/2 Horsepower Stealth Pumps, can be a replacement part for the Zodiac Jandy <strong>SHPF &amp; SHPM Pumps</strong>, and Zodiac <strong>Jandy ePump JEP</strong> Variable Speed Pump.</p><p><strong>The Jandy® limited warranty does not apply to Jandy® branded products purchased through the Internet or other e-commerce platforms.</strong></p>

<p>Drain plug with O-ring replacement. Fits Zodiac Jandy ePump, Stealth, PlusHP, FloPro, Water Feature, WaterFall, MaxHP series pumps models JEP, SHPF/SHPM, PHPF/PHPM, FHPM, WFTR, SWF, MHPM. Also fits Zodiac Legacy LRZE, LRZM pool and spa heater models 125, 175, 250, 325, 400 and LXi Low NOx pool and spa heater models 250, 300, 400. Compatible with Zodiac Jandy Nature2 Fusion Soft and Inground water purification system model FSOFT700, FSOFT1400, FUSION. Includes 2 drain plugs and 2 o-rings</p><p>*Please note there has been a change in the design </p><p><strong>The Jandy® limited warranty does not apply to Jandy® branded products purchased through the Internet or other e-commerce platforms.</strong></p>

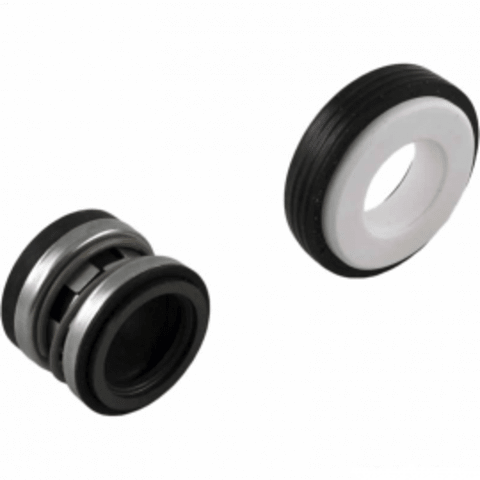

<p>Generic replacement Jandy Pro Series Mechanical Seal, Carbon And Ceramic, FHPM, VS-FHP. </p>

Pump Union, 2-1/2"s x 3"spg, 3.0-5.0hp, qty 2<p><strong>The Jandy® limited warranty does not apply to Jandy® branded products purchased through the Internet or other e-commerce platforms.</strong></p>

<ul>Impeller &amp; Diffuser for 1 Horsepower Full Rate or 1-1/2 Horsepower Up-Rated Stealth Pump</ul> <ul>Please NOTE : R0479400 Mechanical Seal, 5/8" ID is included with all kits.</ul> <ul>This seal is used on all SHPF / SHPM &amp; PHPF / PFPM pumps with serial number P08FF0001 and newer</ul> <ul>If you need the older style R0445500 Mechanical Seal, 13/16" ID, you will need to order the item separately, as it is not included with these kits</ul> <p></p> <p><span id="docs-internal-guid-58d29898-7fff-258d-00f2-751fecc8e129" style="background-color: #ffff00;">                                             This Item Has Been Discontinued by the Manufacturer.</span></p><p><strong>The Jandy® limited warranty does not apply to Jandy® branded products purchased through the Internet or other e-commerce platforms.</strong></p>

Replacement Jandy O-Ring Gasket for Backplate<p><strong>The Jandy® limited warranty does not apply to Jandy® branded products purchased through the Internet or other e-commerce platforms.</strong></p>

<p>Jandy Genuine Replacement Parts, Hardware for the Impeller and Diffuser R0446500 </p><p><strong>The Jandy® limited warranty does not apply to Jandy® branded products purchased through the Internet or other e-commerce platforms.</strong></p>

<p>O-Ring, Tail Piece (Set of 2) </p><p><strong>The Jandy® limited warranty does not apply to Jandy® branded products purchased through the Internet or other e-commerce platforms.</strong></p>

<p>Century(R) Up-Rated Pool and Spa Pump Motor, CXPM-Type, Motor Design: Capacitor Start/Run on Low Speed, PSC on High Speed, Open Dripproof Enclosure, 2/0.33 HP, 2.2 THP, 3450/1725 RPM, 56Y Frame, Voltage Rating: 230 V, 10.0/3.5 A, Frequency Rating: 60 Hz, 1-Phase, 2-2-VT -Speed, Mounting Type: C-Face, Motor Thermal Protection: Auto, Insulation Class: B, 1.10 Service Factor, Ball Bearing, Ambient Temperature: 50 deg C, CCWPE Shaft Rotation, Threaded Shaft, Shaft Diameter: 5/8 Inch, Shaft Length: 1-7/8 Inch, Overall Length: 14.40 Inch, 6-1/2 Inch Diameter, Continuous Duty, High Efficiency Group, Square Flange, Flange Material: Aluminum, Shaft Material: 303 Stainless Steel, Black </p>

<ul>Impeller & Diffuser for 3/4 Horsepower Full Rate and 1 Horsepower Up-Rated Pumps</ul> <ul>Please NOTE : R0479400 Mechanical Seal, 5/8" ID is included with all kits.</ul> <ul>This seal is used on all SHPF / SHPM & PHPF / PFPM pumps with serial number P08FF0001 and newer</ul> <ul>If you need the older style R0445500 Mechanical Seal, 13/16" ID, you will need to order the item separately, as it is not included with these kits</ul><p><strong>The Jandy® limited warranty does not apply to Jandy® branded products purchased through the Internet or other e-commerce platforms.</strong></p>

<ul>Impeller & Diffuser Kit, .5Hp Full / .75 Uprated</ul> <ul>Please NOTE : R0479400 Mechanical Seal, 5/8" ID is included with all kits.</ul> <ul>This seal is used on all SHPF / SHPM & PHPF / PFPM pumps with serial number P08FF0001 and newer</ul> <ul>If you need the older style R0445500 Mechanical Seal, 13/16" ID, you will need to order the item separately, as it is not included with these kits</ul><p><strong>The Jandy® limited warranty does not apply to Jandy® branded products purchased through the Internet or other e-commerce platforms.</strong></p>

<ul>Impeller &amp; Diffuser Kit for 3 Horsepower Pump</ul> <ul>Please NOTE : R0479400 Mechanical Seal, 5/8" ID is included with all kits.</ul> <ul>This seal is used on all SHPF / SHPM &amp; PHPF / PFPM pumps with serial number P08FF0001 and newer</ul> <ul>If you need the older style R0445500 Mechanical Seal, 13/16" ID, you will need to order the item separately, as it is not included with these kits</ul> <p><br /><br /><span style="background-color: #ffff00;">This Item has been discontinued by the manufacturer. </span><span style="background-color: #ffff00;"></span></p><p><strong>The Jandy® limited warranty does not apply to Jandy® branded products purchased through the Internet or other e-commerce platforms.</strong></p>

5 Horsepower, Square Flange, Energy Efficient Motor. 208/230v

SCREWS MOTOR MOUNTING FOOT<p><strong>The Jandy® limited warranty does not apply to Jandy® branded products purchased through the Internet or other e-commerce platforms.</strong></p>

Motor Mounting Foot Assembly<p><strong>The Jandy® limited warranty does not apply to Jandy® branded products purchased through the Internet or other e-commerce platforms.</strong></p>

HARDWARE BOLTS & WASHERS<p><strong>The Jandy® limited warranty does not apply to Jandy® branded products purchased through the Internet or other e-commerce platforms.</strong></p>

<p>3 Horsepower, 3 Phase, Square Flange Motor. 230/460v</p>

<p>Square Flange FR 1.5HP 3 Phase 208/230/460 Motor</p>

<p>Super-Pro GOKIT82V-9 Viton Gasket &amp; O-Ring Kit 82 for Jandy SHPF &amp; SHPM Stealth Pumps </p>
