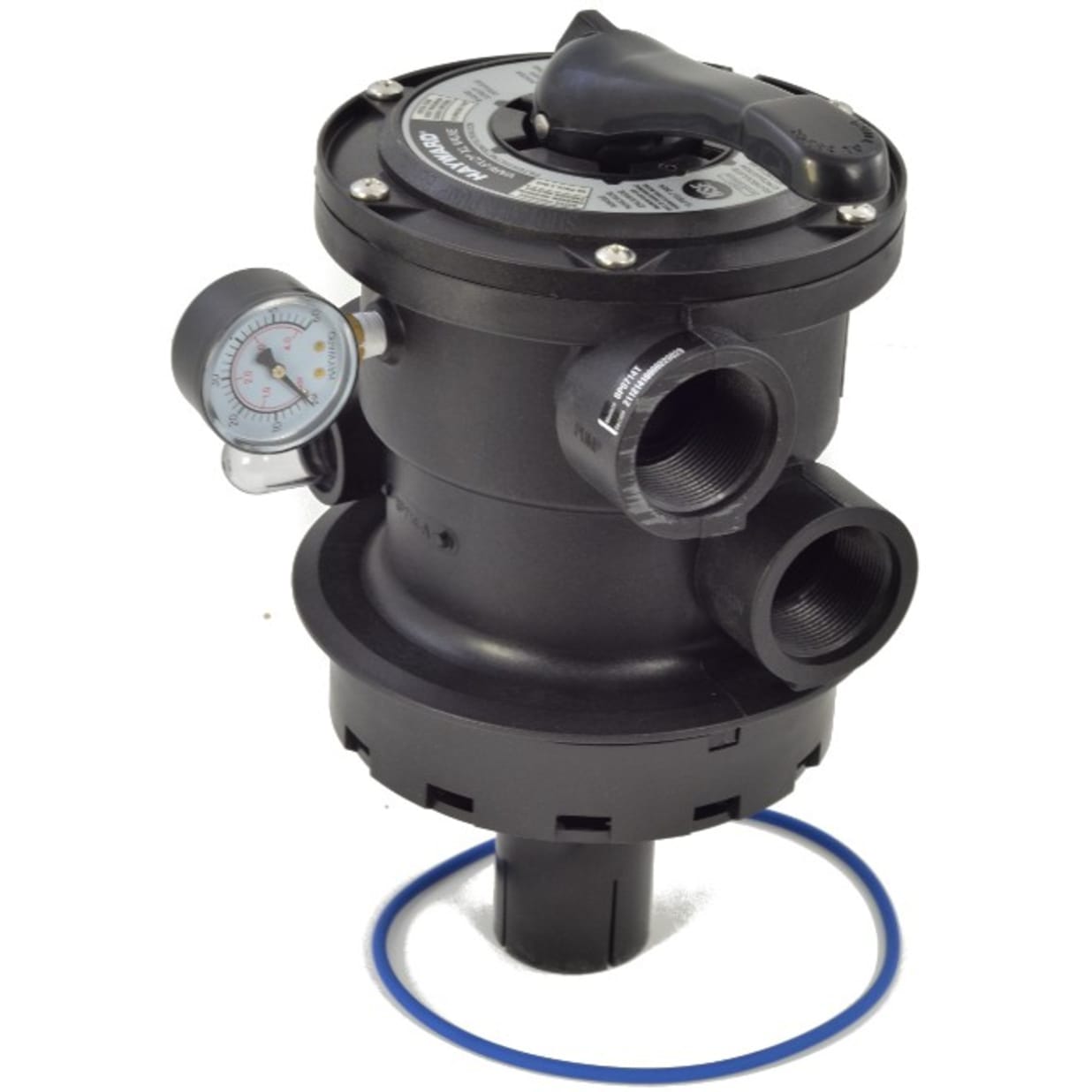

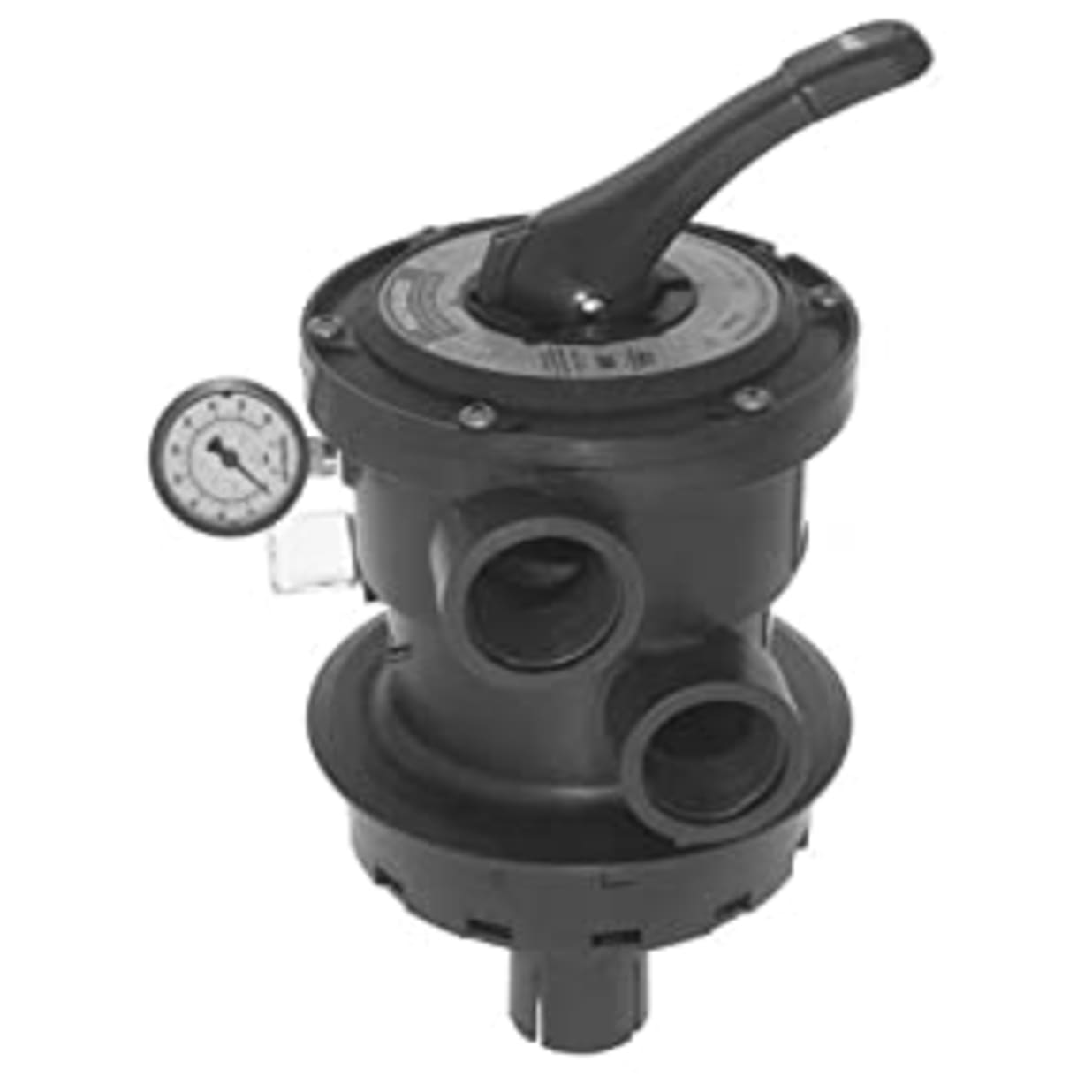

Hayward SP0714T Complete Vari-Flo SP714T XL - 1.5" Top Mount Valve Kit
The Hayward SP0714T seven-position valve has an easy-to-use handle, heavy duty stainless steel spring, ABS body and cover, heavy duty rubber valve seat and a built-in sight glass. Automatic self-cleaning design prevents clogging or sticking. Comes with 1.5" threaded plumbing ports. The Hayward Vari-Flo XL Valve mounts to the filter with a two piece clamp (not included, can be purchased separately). Included with the valve is the filter to tank o-ring and pressure gauge.
Hayward Vari-Flo XL Valve works with the following model filters: Hayward S164T, S166T, S180T, S190T, S210T, S220T, S244T, S245T
This valve replaces: Hayward SP-711-13
Flang diameter: 8"
Some filters require the 2" style of this valve SP071620T
Hayward SP0714T Vari-Flo Control Valve Functions:
Filter - Used 99.99% of the time. Used for normal filtering.
Backwash - Used for cleaning the filter sand bed of accumulated debris. Water goes in reverse through the filter and out the waster port.
Rince - Used after completing the backwash cycle to ensure all dirty water is rinsed out of the filter to waste.
Waste - Water is passed through the valve to the waster port, by-passes the filter. Can be used for lowering pool water level, and for vacuuming heavy debris directly out the waste line
Recirculate - Water is recirculated through the valve and back to the pool, by-passing the filter tank
Closed - Closes the valve so no water can go through it.
Winter - Used to winterize (SP0714T only)
|Product Name||Complete Vari-Flo SP714T XL - 1.5" Top Mount Valve Kit|
|Manufacturer Part Number||SP0714T|
|Substitute Part Numbers||SP-714, SP714T|
