Century (formarly A.O. Smith)

<p>Energy Efficient, Full Rated 1.5 horsepower motor. 1.30 Service Factor, 115/230V. Round Flange, 56J Frame. 3450 RPM. <strong>Used with: </strong>Hayward Super II Energy Efficient, Hayward NorthStar Full Rate and Jacuzzi Magnum Full Rate pumps.</p><p><strong>Key Features:</strong></p><ul><li><p>Sealed Ball Bearings</p></li><li><p>Capacitor Start-Capacitor Run</p></li><li><p>Sealed Switch Design</p></li><li><p>50°C Ambient</p></li><li><p>303 Stainless Shaft</p></li><li><p>UL 1081 Design</p></li><li><p>304 Bearing Shaft End</p></li><li><p>Threaded Shaft</p></li><li><p>Energy Efficient</p></li><li><p><strong>Note:&nbsp;NOT California Title 20 Compliant.&nbsp;</strong></p></li></ul>

<p>Motor, Up Rated, 2.5 HP, 1.04 SF, 230v (B840) now (B2840)</p><p>*Replaced by B2840V1</p>

Thru Bolt Pump Motor, 2HP SPL, 2Speed, 230V

<p>Energy Efficient Pump Motor, Full Rated, 3HP, 230v 56J frame. <strong>Used with:</strong> Jandy HHP &amp; HHPU series, Hayward RS Series, Hayward Super II SP3000 Series.</p><p><strong>Key Features:</strong></p><ul><li><p>Sealed Ball Bearings</p></li><li><p>Capacitor Start-Capacitor Run</p></li><li><p>Sealed Switch Design</p></li><li><p>50°C Ambient</p></li><li><p>303 Stainless Shaft</p></li><li><p>UL 1081 Design</p></li><li><p>304 Bearing Shaft End</p></li><li><p>Threaded Shaft</p></li><li><p>Energy Efficient</p></li><li><p><strong>Note:&nbsp;NOT California Title 20 Compliant.&nbsp;</strong></p></li></ul>

Pump Motor, 1.5HP 2 Speed, 230V

<p>Century C-Face Threaded Shaft Motor, 1.5-.20 HP, 2-speed, 230v, FR, 1.30 SF, 8.9/3.1 Amps, 56J Frame (B977)</p>

<p>The VGreen 165 variable speed motor by Century is a perfect way to upgrade your current pump to a energy superstar. Designed to deliver premium energy savings from 40 percent to 80 percent compared to a standard single speed motors.</p> <p>The 1.65 HP VGreen Square Flange VS Motor is a perfect replacement for 1 to 1-1/2 HP pumps utilizing a square frame motor. Direct replacement for Pentair WhisperFlo, Pentair Challenger Pumps, Sta-Rite Dura-Glas, Sta-Rite Max-E-Glas and Max-E-Pro single speed pumps motors.</p> <p>No need to upgrade the impeller or diffuser, the motor has built in diagnostics to compensate for 1 to 1-1/2 HP pump internals.</p>

<p>Rear End Bell C/Face Aluminum</p>

BN36 2-Speed Pump Motor 48Y Frame 3/4 HP Thru-Bolt 115V. The BN36 thru-bolt motor has a 1/2" diameter shaft with a 3/8" threaded end.

<p><img src="{{media url="website_images/ao_smith_logo.jpg"}}" alt="Energy Efficient Pump Motor, Up Rated, SP3000X Series, 2.5 HP, Energy Efficient, 1.00 SF, 230v (UST1252)" /></p> <p>Energy Efficient Pump Motor, Up Rated, SP3000X Series, 2.5 HP, Energy Efficient, 1.00 SF, 230v (UST1252)</p>

<p><img src="{{media url=" alt="Pump Motor, Full Rated, 2600 Series, 1 HP, Energy Efficient, 1.40 SF, 115/230v (CT1102" /></p> <p><span>Century(R) Full-Rated Two-Compartment Pool Filter Motor, K-Type, Motor Design: Capacitor Start/Run, Open Dripproof Enclosure, 1 HP, 1.4 THP, 3450 RPM, 56J Frame, Voltage Rating: 115/230 V, 13.6/6.8 A, Frequency Rating: 60 Hz, 1-Phase, 1 -Speed, Mounting Type: C-Face, Motor Thermal Protection: Auto, Insulation Class: B, 1.40 Service Factor, Sealed Ball Bearing, Ambient Temperature: 50 deg C, CCWPE Shaft Rotation, Threaded Shaft, Shaft Diameter: 5/8 Inch, Shaft Length: 2-9/16 Inch, Overall Length: 12.13 Inch, 6-1/2 Inch Diameter, Continuous Duty, High Efficiency Group, Flange Material: Aluminum, Shaft Material: 303 Stainless Steel, Satin Black</span></p>

<p>Stationary Switch Single Arm</p>

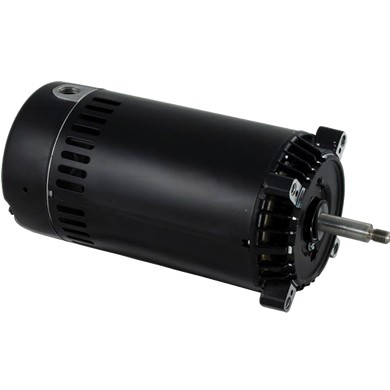

<p>&nbsp;Pump Motor, Full Rated, 2600 Series, 0.75 HP, 1.50 SF, 115/230v (ST1072)</p><p> <strong>Used with:</strong> Hayward Super and Super II Pump.</p><p><strong>Key Features:</strong></p><ul><li><p>Sealed Ball Bearings</p></li><li><p>Capacitor Start</p></li><li><p>Sealed Switch Design</p></li><li><p>50°C Ambient</p></li><li><p>303 Stainless Shaft</p></li><li><p>UL 1081 Design</p></li><li><p>304 Bearing Shaft End</p></li><li><p>Threaded Shaft</p></li><li><p><strong>Note:&nbsp;NOT California Title 20 Compliant.&nbsp;</strong></p></li></ul>

<p>The B229SE is a 1-1/2 HP (horsepower), 1.0 SF (service factor), 3450 RPM. It is 230/115v, 56J FR (frame, round flange). It is a single phase motor.</p>

5 HP 3 Phase Motor, ,56J, 208-230/460V, SF 1.0 This is the motor used in the 5hp, 3 phase Magnum Force 3 Pump Dimensions: Diameter : 6-1/2" Length: 11-5/8" Length with Shaft : 14-1/2"

<p>Pump Motor, Full Rated, 2600 Series, 0.50 HP, 1.60 SF, 115/230v (ST1052) </p><p><strong>Used with:</strong> Hayward Super &amp; Super II.</p><p><strong>Key Features:</strong></p><ul><li><p>Sealed Ball Bearings</p></li><li><p>Capacitor Start</p></li><li><p>Sealed Switch Design</p></li><li><p>50°C Ambient</p></li><li><p>303 Stainless Shaft</p></li><li><p>UL 1081 Design</p></li><li><p>304 Bearing Shaft End</p></li><li><p>Threaded Shaft</p></li><li><p><strong>Note:&nbsp;NOT California Title 20 Compliant.&nbsp;</strong></p></li></ul>

<p>Replacement 3 Horsepower, 2 Speed Thru Bolt Style Motor, 230v</p>

<p>Motor, Max Rated, 2.0 HP, Energy Efficient, 1.20 SF, 208-230 (USN1202)</p>

Motor, Full Rated, 2.0 HP, Energy Efficient, 1.35 SF, 208-230 (SN1202)

5 Horsepower, Square Flange, Energy Efficient Motor. 208/230v

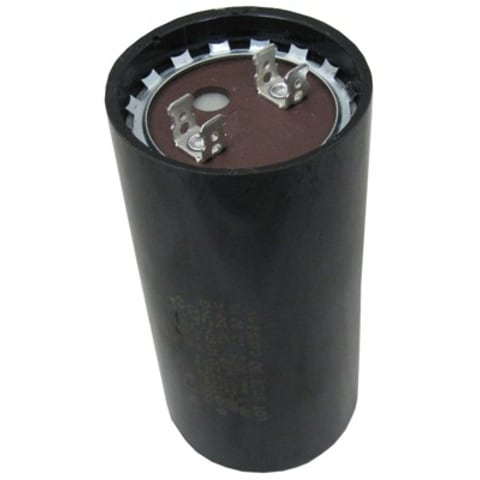

<p>OS Smith Start Capacitor 250V 189-227 MFD MEASURES 4 5/16"</p>

THRD FR 3HP 230V

<p><span>Century(R) Full-Rated Two-Compartment Pool Filter Motor, F/C-Type, Motor Design: Capacitor Start on Low Speed, PSC on High Speed, Open Dripproof Enclosure, 1/0.13 HP, 1.5 THP, 3450/1725 RPM, 56J Frame, Voltage Rating: 230 V, 7.0/2.3 A, Frequency Rating: 60 Hz, 1-Phase, 2 -Speed, Mounting Type: C-Face, Motor Thermal Protection: Auto, Insulation Class: B, 1.50 Service Factor, Sealed Ball Bearing, Ambient Temperature: 50 deg C, CCWPE Shaft Rotation, Threaded Shaft, Shaft Diameter: 5/8 Inch, Shaft Length: 2-9/16 Inch, Overall Length: 12.50 Inch, 6-1/2 Inch Diameter, Continuous Duty, High Efficiency Group, Flange Material: Aluminum, Shaft Material: 304 Stainless Steel, Prime Coat Black</span></p>

<p>Replacement 3/4 Horsepower, Square Flange, Up Rate Motor. 115/230v</p>

Motor, Up Rated, 0.50 HP, 1.0 SF, 115v, Flex 48 (BN23SS)

AO Smith, Century Motor, 1.5hp, 115v/230v, 1spd, SF 1.30, 56C fr, C-Face Key CAT: SK1152 MODEL: K48M2N111A3 TYPE: UAK FR: 56C HP: 1.5 SF: 1.3 PH: 1 HZ: 60 RPM: 3450 ROT: CWLE VOLTS: 115/230 AMPS: MAX AMPS: 19.4/9.7 SF AMPS: TIME: CONT ENCL: THERMALLY PROTECTED CET36WX CODE: J INSUL CLASS: B AMB: 50

<p><span>Century(R) Full-Rated Two-Compartment Pool Filter Motor, K-Type, Motor Design: Capacitor Start/Run, Open Dripproof Enclosure, 0.75 HP, 1.13 THP, 3450 RPM, 56J Frame, Voltage Rating: 115/230 V, 11.0/5.5 A, Frequency Rating: 60 Hz, 1-Phase, 1 -Speed, Mounting Type: C-Face, Motor Thermal Protection: Auto, Insulation Class: B, 1.50 Service Factor, Sealed Ball Bearing, Ambient Temperature: 50 deg C, CCWPE Shaft Rotation, Threaded Shaft, Shaft Diameter: 5/8 Inch, Shaft Length: 2-9/16 Inch, Overall Length: 11.69 Inch, 6-1/2 Inch Diameter, Continuous Duty, High Efficiency Group, Flange Material: Aluminum, Shaft Material: 303 Stainless Steel, Satin Black</span></p>

<p><img src="{{media url="website_images/ao_smith_logo.jpg"}}" alt="Motor, Max Rated, 1.5 HP, Energy Efficient, 1.25 SF, 115/208-230 (USN1152)" /></p> <p>&nbsp;Motor, Max Rated, 1.5 HP, Energy Efficient, 1.25 SF, 115/208-230 (USN1152)</p>

<p>Motor, Max Rated, 1.0 HP, Energy Efficient, 1.40 SF, 115/208-230 (USN1102)</p>

Motor, Full Rated, 3.0 HP, Energy Efficient, 1.60 SF, 208-230 (SN1302)

Motor, Full Rated, 1.5 HP, Energy Efficient, 1.60 SF, 115/208-230 (SN1152)

<p><img src="{{media url="website_images/ao_smith_logo.jpg"}}" alt="Motor, Full Rated, 1.0 HP, Energy Efficient, 1.85 SF, 115/208-230 (SN1102)" /></p> <p>Motor, Full Rated, 1.0 HP, Energy Efficient, 1.85 SF, 115/208-230 (SN1102)</p>

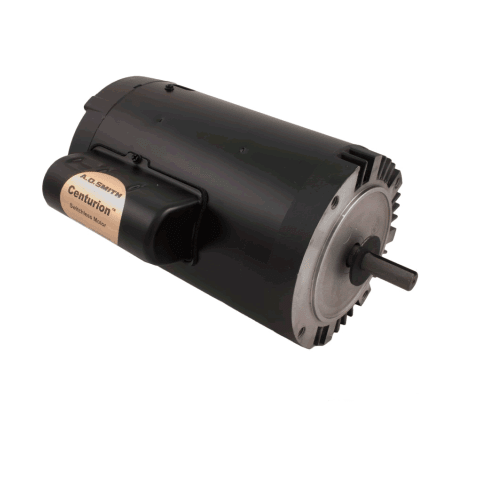

<p>AO Smith 1-1/2 Horsepower Keyed Shaft Motor. 115/230v</p>

Thru Bolt Pump Motor 4HP SPL, 2 Speed 230V

Thru Bolt Pump Motor 3HP SPL, 2 Speed, 230V

<p>B796 1-1/2 Horsepower, Energy Efficient Motor with Threaded Shaft 115/208/230V</p>

<p>Threaded Shaft Replacement Full Rate 3HP Energy Efficient Motor 115/208/230V</p>

<p>2 Horsepower, Energy Efficient Motor with Threaded Shaft. 208/230v</p>

<p>THRD FR .75HP 2SP 115V</p>

<p><span>entury(R) Full-Rated Two-Compartment Pool Filter Motor, K-Type, Motor Design: Capacitor Start/Run, Open Dripproof Enclosure, 0.5 HP, 0.8 THP, 3450 RPM, 56J Frame, Voltage Rating: 115/230 V, 8.0/4.0 A, Frequency Rating: 60 Hz, 1-Phase, 1 -Speed, Mounting Type: C-Face, Motor Thermal Protection: Auto, Insulation Class: B, 1.60 Service Factor, Sealed Ball Bearing, Ambient Temperature: 50 deg C, CCWPE Shaft Rotation, Threaded Shaft, Shaft Diameter: 5/8 Inch, Shaft Length: 2-9/16 Inch, Overall Length: 11.00 Inch, 6-1/2 Inch Diameter, Continuous Duty, High Efficiency Group, Flange Material: Aluminum, Shaft Material: 303 Stainless Steel, Satin Black</span></p>

<p>Replacement Threaded Shaft Motor, Full Rate .5HP Energy Efficient 115/208/230V</p>

<p>3 Horsepower, 3 Phase, Square Flange Motor. 230/460v</p>

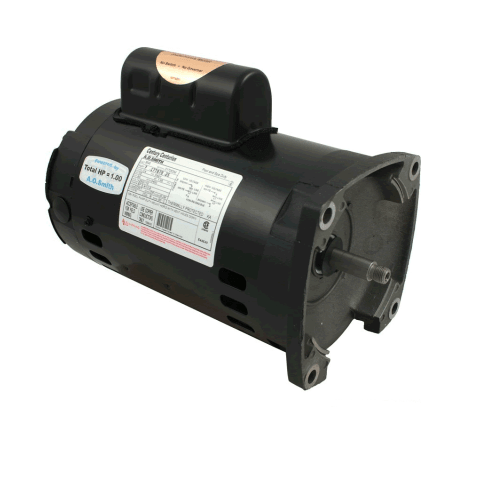

<p>Square Flange FR .5HP 115/230V</p><p>*Replaced by B2846</p>

Replacement A.O. Smith 1/3 horsepower 48Y frame Square Flange Motor 115V/230V. Part number: SQ1032.

<p>KEYED FR .75HP 115/230V</p>

<p>KEYED FR .5HP 115/230V</p>

<p>Two Compartment NEMA C-Face Pool Filter Motors • Single Speed • Auto Protector • NEMA “56C” Face Mount • Open Dripproof • Rotation: CCW Pump End • Sealed Ball Bearings • Sealed Switch Design • “1081” Design • 50°C Ambient • 304 Brearing. Shaft End • 60 Hz • Capacitor Start and Capacitor Start-Capacitor Run • 303 Stainless Shaft (56J &amp; 56C)</p>
