<p>StaRite Replacement 1/4" Drain Plug with O-Ring for select Pumps.</p>

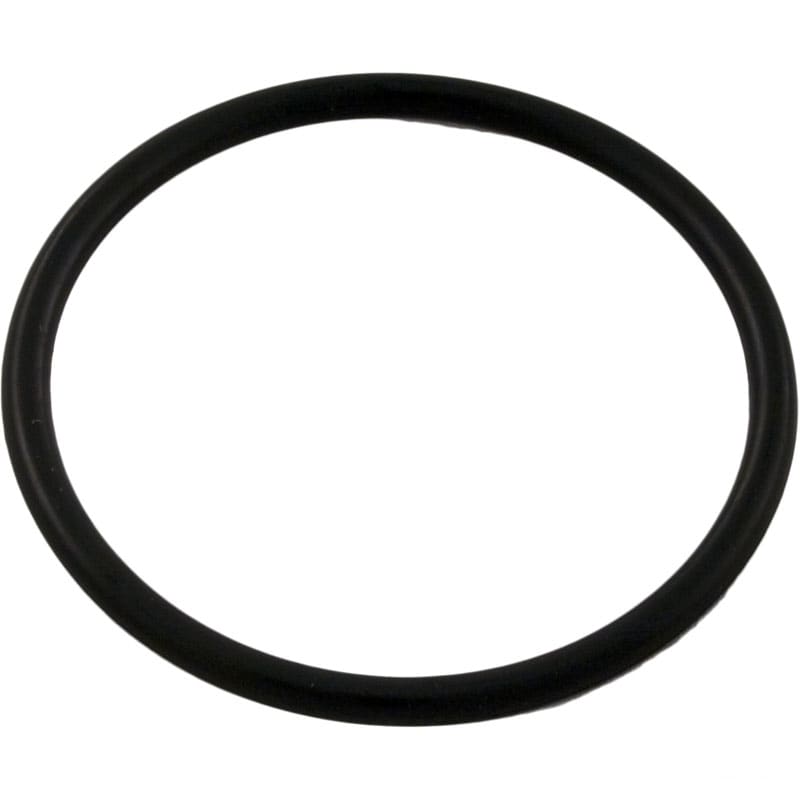

Replacement O-Ring, Union, Diffuser Dimensions: 2" ID, 1/8" Cross Section

<p>Sta-Rite Replacement Union Half - 2" x 2" Slip Fits the following pump models: StaRite Dyna-Glas/Dyna-Max Pumps Pentair Sta-Rite Dyna-Pro/Dyna-Pro E Medium Head Pool Pump Pentair Sta-Rite Max-E-Pro Series Pentair MasterTemp Gas Heater Water System </p>

Heater Manifold Kit 200,000 BTU

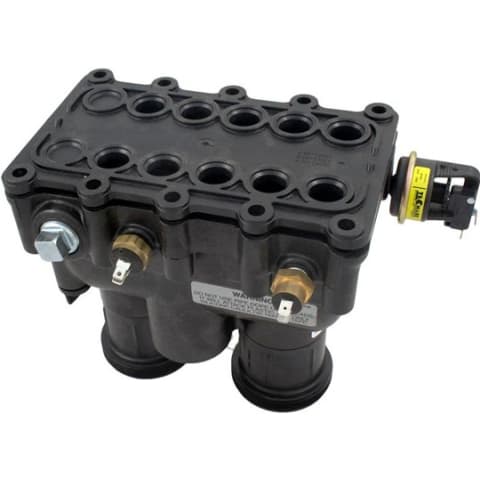

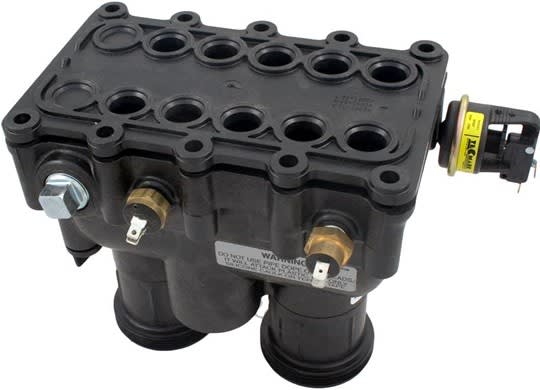

<p>Sta-Rite Max-E-Therm Heater Manifold Assembly SR333 Model, 77707-0015</p><p></p><p>This kit includes the following items:</p><ul><li><p>Coil/Tubesheet sealing o-ring kit</p></li><li><p>Manifold bypass kit</p></li><li><p>Water pressure switch</p></li><li><p>Connector tube kit (includes 1 connector tube &amp; 1 o'ring)</p></li><li><p>Zinc plug 428-60 PS</p></li><li><p>Automatic gas shutoff switch (AGS)</p></li><li><p>High limit switch</p></li><li><p>Thermistor</p></li></ul>

<p>Pentair 474972 Manifold Kit For Model 125 MasterTemp Heater</p><p><strong>For Use With: </strong>MasterTemp® Heater Model 125</p><p><strong>Includes: </strong>Coil/Tubesheet Sealing O-Ring Kit, Bottom Plate, Baffle Plate, Bypass Valve, Water Pressure Switch, 5/16 Inch Stainless Steel Washer, Hex Cap Screw</p>

Flat Washer

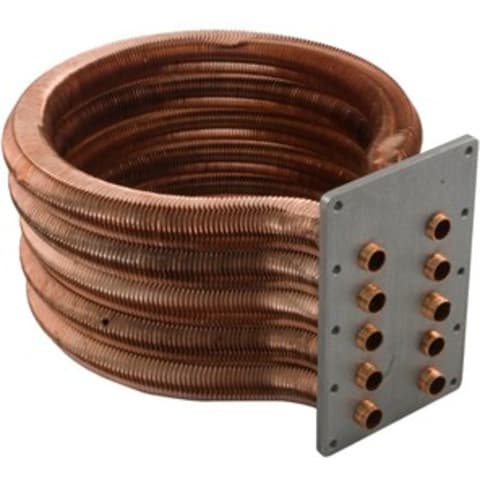

<p>Pentair MasterTemp &amp; Sta-Rite Max-E-Therm Tube Sheet Coil Assembly Kit, 77707-0232, for Models 200NA &amp; 200LP, <strong>Prior to 1-12-09</strong></p><p><strong>Features:</strong></p><ul><li><p>The tubes on Pentair MasterTemp &amp; Sta-Rite Max-E-Therm heat exchangers (tube sheet assembly) is a generally round shape instead of being straight and flat like most other heaters on the market.</p></li><li><p>The plate at the end of the tubes measures 5-1/2" wide x 8-1/2" tall.&nbsp; Approximate width side to side is 13". The approximate length from the end of the plate to the opposite end of the coil is 15".</p></li><li><p>The 400K BTU model tube sheet contains 6 coiled copper tubes.</p></li><li><p>This kit also includes:</p></li><li><p>-Tube of high temp RTV silicon -O-Ring Kit (set of 12) part number 77707-0119</p></li></ul><p></p>

<p>Heat Exchanger Assembly 250K</p>

Tube Sheet Coil Assembly Kit

<p>Pentair MasterTemp &amp; Sta-Rite Max-E-Therm Tube Sheet Coil Assembly Kit, Models 400NA &amp; 400LP, Prior to 1-12-09, 77707-0234</p><p><strong>Features</strong></p><ul><li><p>The tubes on Pentair MasterTemp &amp; Sta-Rite Max-E-Therm heat exchangers (tube sheet assembly) is a generally round shape instead of being straight and flat like most other heaters on the market.</p></li><li><p>The plate at the end of the tubes measures 5-1/2" wide x 8-1/2" tall.&nbsp; Approximate width side to side is 13".&nbsp; The approximate length from the end of the plate to the opposite end of the coil is 15".</p></li></ul><ul><li><p><strong>This kit includes</strong>:</p><ul><li><p>8 - O Ring coil</p></li><li><p>8 - Tube sheet seal</p></li><li><p>1 - Tube sheet coil assembly 250</p></li><li><p>1 - Label sheet metal warning</p></li><li><p>1 - O-ring metal tube replacement</p></li><li><p>1 - Manifold bypass valve package</p></li><li><p>1 - Tube of high temp RTV silicone</p></li><li><p>1 - Servie kit koala wool insulation</p></li><li><p>1 - Blower/adapter plate gasket</p></li><li><p>1 - Ignitor and gasket kit heater</p></li></ul></li></ul>

<p>Heater Manifold Kit 250,000 BTU</p>

<p>Pentair 473715Z Pressure Relief Valve for Max-E-Therm and MasterTemp® Heater Water System</p>

<p>Pentair 474059 Tube Sheet Coil Assembly Kit For Model 250NA; 250LP MasterTemp Heater. It is a genuine Pentair product.</p><p><strong>For Use With: </strong>Model 250NA, 250LP MasterTemp® Heater <strong>Manufactured After 1/12/09</strong> (New Tub Design)</p><ul><li><p><strong>Kit Includes</strong>:</p><ul><li><p>8 - O Ring Coil</p></li><li><p>8 - TubeSheet seal</p></li><li><p>1 - Tubesheet Coil Assembly 250</p></li><li><p>1 - Label Sheetmetal Warning</p></li><li><p>1 - O Ring Metal Tube Replacement</p></li><li><p>1 - Manifold Bypass Valve Package</p></li><li><p>1 - Tube of high temp RTV silicone</p></li><li><p>1 - Servie Kit Koala Wool Insulation</p></li><li><p>1 - Blower/Adapter Plate Gasket</p></li><li><p>1 - Ignitor and Gasket Kit Heater</p></li></ul></li></ul>

Heater Manifold Kit 400,000 BTU

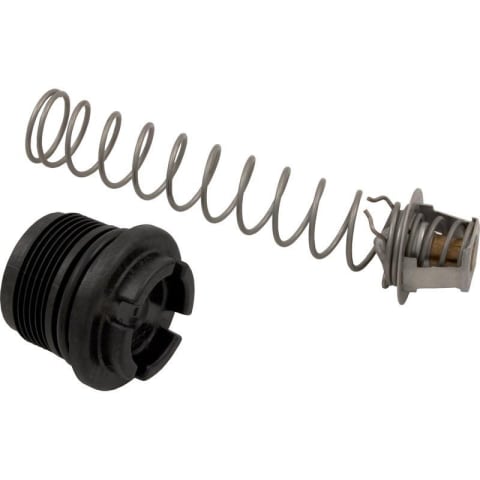

<p>Pentair/Sta-Rite 77707-0010 Genuine Replacement Thermal Regulator Kit.</p>

<p>Pentair 42001-0060S Water Pressure Switch for MasterTemp and ETi 400 High Efficiency Heater </p>

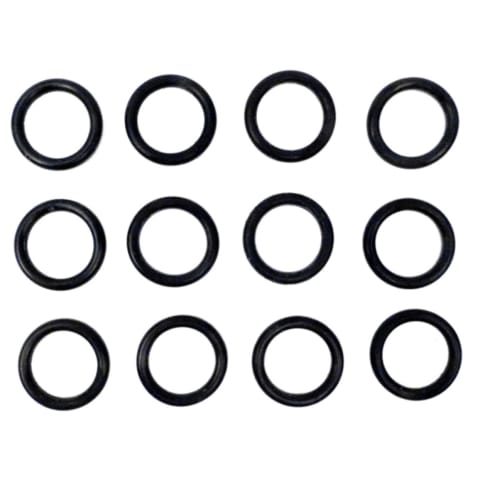

<p>Pentair 77707-0119 Coil/Tubesheet Sealing O-Ring Kit For Model 400NA, 400LP MasterTemp Set of 12</p>

<p>MANIFOLD BYPASS VALVE KIT</p>

<p>PKG 188Z Union 2" Slip Half Union Package.</p><p></p><p>Fits Pentair Intellipro® Variable Speed Pump-Before 2019, Max-E-Pro® Series Pump, Dyna-Pro® / Dyna-Pro E Pump, Dyna-Wave® Series Pump</p>

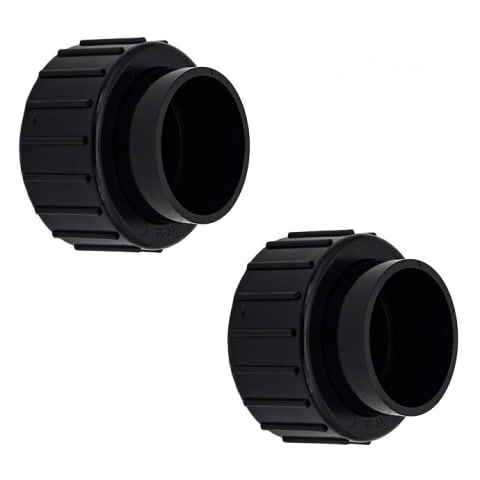

<p>Pentair 474974 Union Kit For Max-E-Therm and MasterTemp Heaters; MasterTemp Model 125 Heater Water System; 1-1/2 Inch</p>

<p>Pentair Sta-Rite 474061 Tube Sheet Coil Assembly Kit</p><p><strong>For Use With: </strong>Model 400NA, 400LP MasterTemp® Heater Manufactured After 1/12/09 (New Tub Design) </p><p><strong>Features</strong></p><ul><li><p>The tubes on Pentair MasterTemp &amp; Sta-Rite Max-E-Therm heat exchangers (tube sheet assembly) is a generally round shape instead of being straight and flat like most other heaters on the market</p></li><li><p>The plate at the end of the tubes measures 5-1/2" wide x 8-1/2" tall. Approximate width side to side is 13".&nbsp; The approximate length from the end of the plate to the opposite end of the coil is 15"</p></li><li><p><strong>This kit includes</strong>:</p><ul><li><p>8 - O Ring Coil</p></li><li><p>8 - TubeSheet seal</p></li><li><p>1 - Tubesheet Coil Assembly</p></li><li><p>1 - Label Sheetmetal Warning</p></li><li><p>1 - O Ring Metal Tube Replacement</p></li><li><p>1 - Manifold Bypass Valve Package</p></li><li><p>1 - Tube of high temp RTV silicone</p></li><li><p>1 - Servie Kit Koala Wool Insulation</p></li><li><p>1 - Blower/Adapter Plate Gasket</p></li><li><p>1 - Ignitor and Gasket Kit Heater</p></li></ul></li></ul>

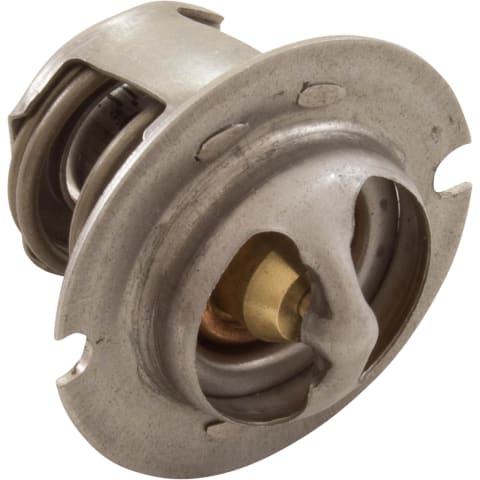

<p>Pentair 474989 Thermal Regulator For MasterTemp Model 125 Heater Water System</p>
