DEL Ozone MDV-100 MDV XL Mixing De-gas Vessel - for AOP 50

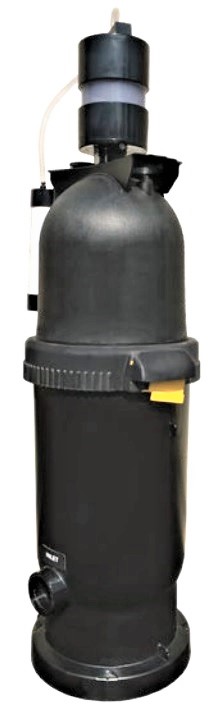

Del Ozone MDV XL - Large Mixing De-Gas Vessel - for AOP 50
The MDV XL (Mixing De-gas Vessel) system prevents virtually all ozone bubbles from returning to the pool, eliminating bubble noise and visibility. It also protects pool covers, plumbing, and other surfaces from corrosion. DEL MDV XL utilizes
When water enters the MDV-100, ozone bubbles are allowed to float up and accumulate at the top as the water exits out the bottom.
The separated ozone passes through a float valve, and is then sent through an ozone destruct cartridge with Granulated Activated Carbon (GAC), destroying excess ozone gas removed by the MDV.arbon destruct.
Capacity : Up to 50,000 gallons
NOTE :
An MDV (Mixing De-Gas Vessel) should be used in all indoor, covered, and vinyl-lined pools when used in conjunction with AOP units.
MDV systems may also be used in outdoor applications to eliminate bubbles from your return flow.

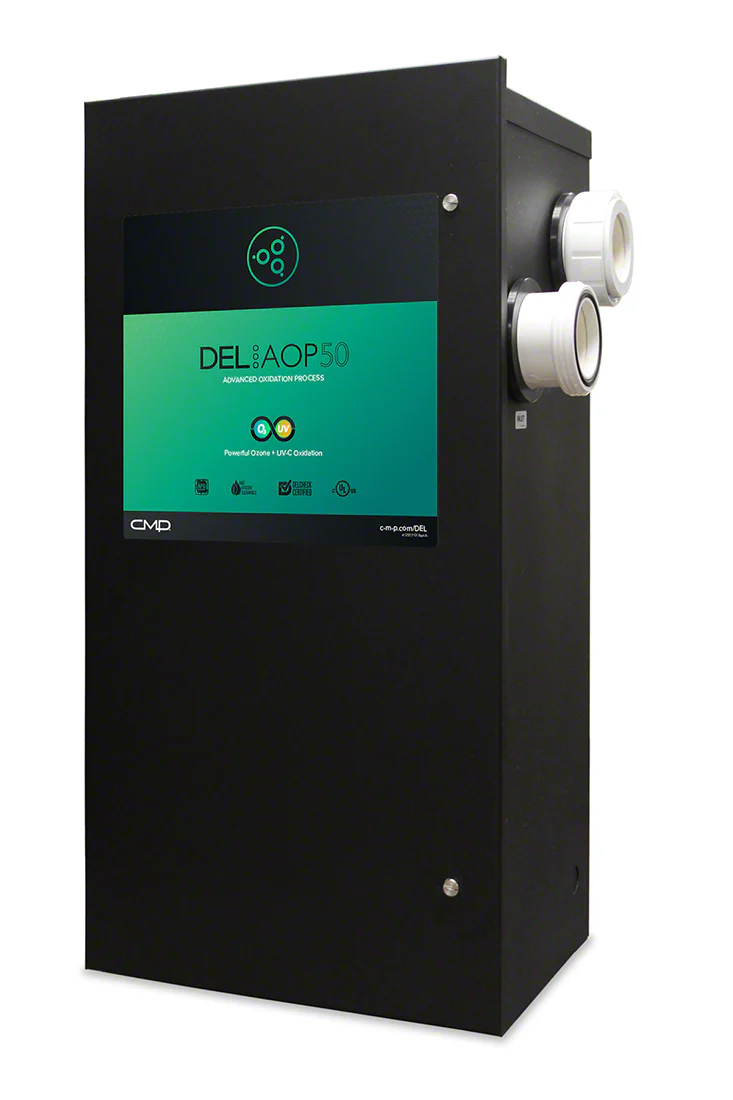

For the AOP 50, use MDV XL
Utilize the MDV-10-08 for the AOP 25 (SEE "Related Products" below)
COMPLETE YOUR AOP INSTALLATION
By eliminating any off-gas, MDV units reduce the potential for corrosion or deterioration of pool accessories like a pool cover. They also allow use of an “oversized” ozone generator to ensure a greater disinfection margin and larger reduction in chemical use. In each MDV a Granulated Activated Carbon (GAC) destruct cartridge destroys excess gas removed by the MDV.
The MDV XL should be used in all indoor, covered, and vinyl lined pools where there is an AOP 50 installed. It helps prevent virtually all ozone bubbles from returning to the pool, keeping those bubbles from gathering under the cover or inside plumbing
INSTALLATION DIAGRAM :
• Ground or Wall Mount
• Install after Pump, Filter and Heater
• Variable Speed Check Valve and Injector Manifold are Built into the Unit
• 2" PVC Unions
| Product Name | MDV XL Mixing De-gas Vessel - for AOP 50 |
|---|---|
| Manufacturer Part Number | MDV-100 |
| Brand | DEL Ozone |
| Substitute Part Numbers | ZO-940 |
| SKU | DEL-45-913 |
