waterway-executive-48-frame-pump-parts

<p><strong>This part fixes the following symptoms:</strong> Leaking between the motor and the seal plate (mounting plate.) If this seal leaks for to long, water will leak down the motor shaft and into the motor, ruining the motor. If your motor is making a loud screaming noise, this has probably already happened and is advised to replace the motor. Always replace this mechanical pump seal when dismantling the pump. </p>

Waterway Pump Shaft Slinger 313-1400. This slinger fits over the shaft of the motor and acts as a last line of defense to save a motor from a leaky mechanical seal.

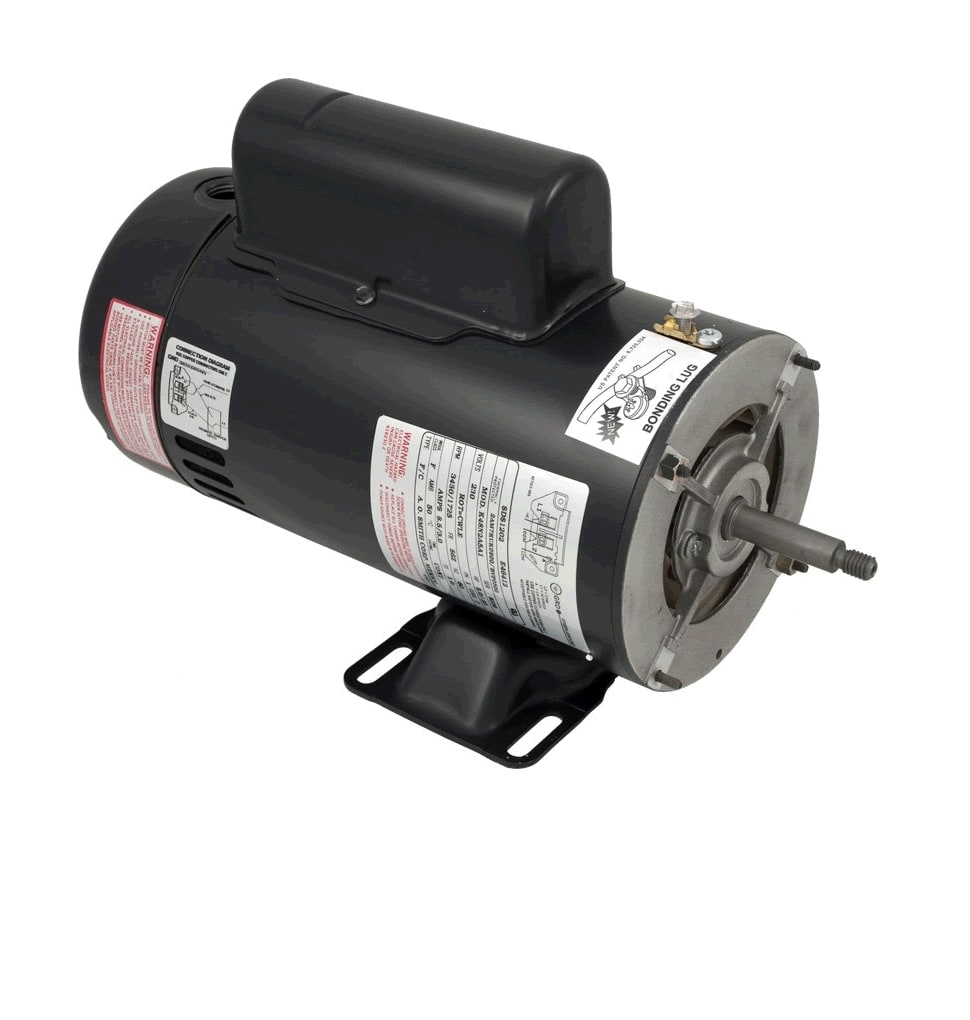

<p>A.O. Smith Corp/ Regal Beloit Replacement 1-1/2 Horsepower 48Y Frame Thru Bolt Style Motor with Stainless Steel Shaft. 115/230v. Many above ground pool &amp; spa pumps use this motor. <strong>Used with:</strong> Hayward Power-Flo LX1580, Power-Flo II, Pentair Dynamo, Waterway Hi-Flo &amp; HI-Flo II Side Discharge.<br></p><p><strong>Key Features:</strong></p><ul><li><p>12 &amp; 3 O'clock Conduit Entries</p></li><li><p>3-1/2" Shaft Height</p></li><li><p>40°C Ambient</p></li><li><p>Stainless Steel Shaft</p></li><li><p>Four Thru Bolts on a 5.146 Bolt Circle</p></li><li><p>48/56 Base Mounting</p></li><li><p>Sealed Ball Bearings</p></li><li><p>UL 1081 Design</p></li><li><p>Rigid Base</p></li><li><p>Threaded Shaft</p></li><li><p><strong>Note:&nbsp;NOT California Title 20 Compliant.&nbsp;</strong></p></li></ul>

<p>3/8" Quarter Slot Drain Plug Black</p>

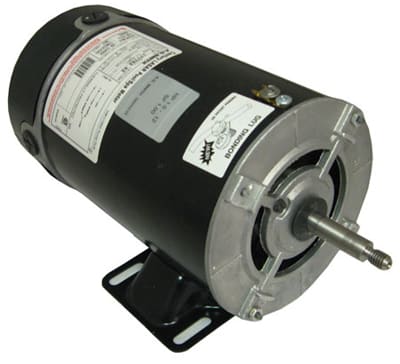

<p>Motor Two Speed Up Rated, 1.5 x 1/5 HP, 1.0 SF, 230v, Flex 48 (BN34SS) BN34V1</p><p></p><p>*NOT FOR SALE OR INSTALLATION IN THE STATE OF CALIFORNIA</p>

Executive Volute O-Ring

Executive Wear Ring 1-3 HP

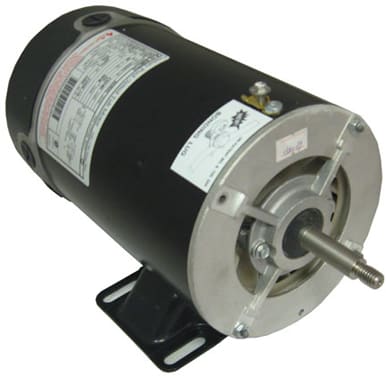

<p>Many above ground pool and spa pumps use this A.O. Smith pool pump motor. Single Speed&nbsp;1 HP Pool Pump Motor, Up Rated, 1.0 HP, 1.0 SF, 115v, (BN25SS) now (BN25V1). Frame 48Y, Volts 115V, HP 1.0, 1 SPEED, Amps 12A, RPM 3450 RPM, SF 1.0.</p> <p><strong>Replaces:</strong> Sta-Rite, Hayward, American Products, Hydra Bath, Pac Fab, Jacuzzi, Doughboy, Waterway, Pentair</p> <p><strong>Features:</strong> All copper windins, Auto protector, Open drip proof, Stainless steel threaded shaft, Thrubolt pump mount, "1081" design, 60 HZ , 115V, Frame 48Y, standard threaded stainless shaft</p>

<p>waterway 805-0111 Drain Plug O-Ring</p>

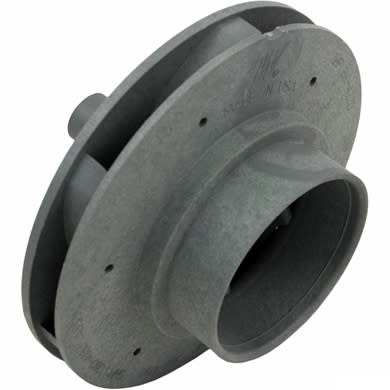

<p>Executive 1 HP Impeller</p>

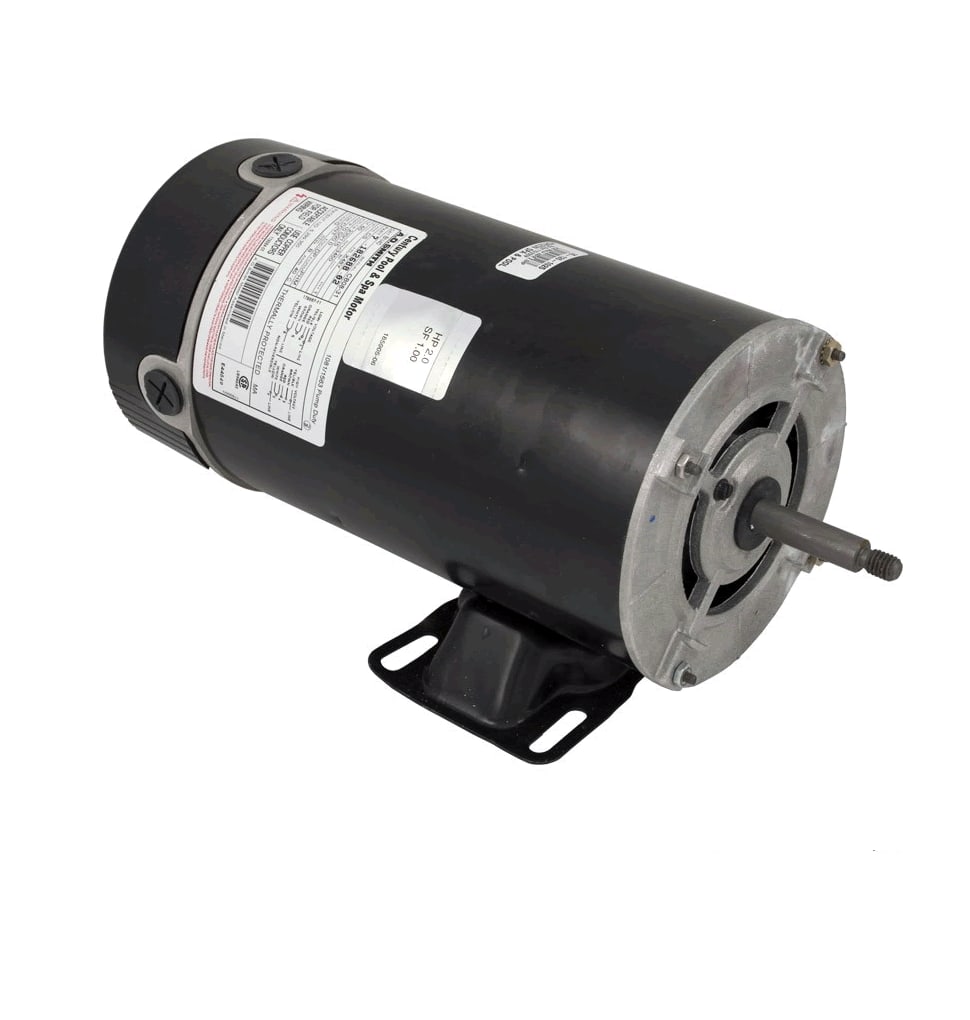

<p>Century / A.O. Smith Replacement Motor. Thru-bolt 2HP 115/230V (Stainless Steel Shaft). Century / A.O. Smith Replacement Motor Flex 48 BN40SS Pool and Spa Pump Motor.</p><p>Key Features:</p><ul><li><p>12 &amp; 3 O'clock Conduit Entries</p></li><li><p>3-1/2" Shaft Height</p></li><li><p>40°C Ambient</p></li><li><p>Stainless Steel Shaft</p></li><li><p>Four Thru Bolts on a 5.146 Bolt Circle</p></li><li><p>48/56 Base Mounting</p></li><li><p>Sealed Ball Bearings</p></li><li><p>UL 1081 Design</p></li><li><p>Rigid Base</p></li><li><p>Threaded Shaft</p></li></ul><p>*Not California Title 20 Compliant. Cannot be shipped to or installed in California.</p>

<p>Executive 4 HP Impeller</p>

<p>Executive 3 HP Impeller</p>

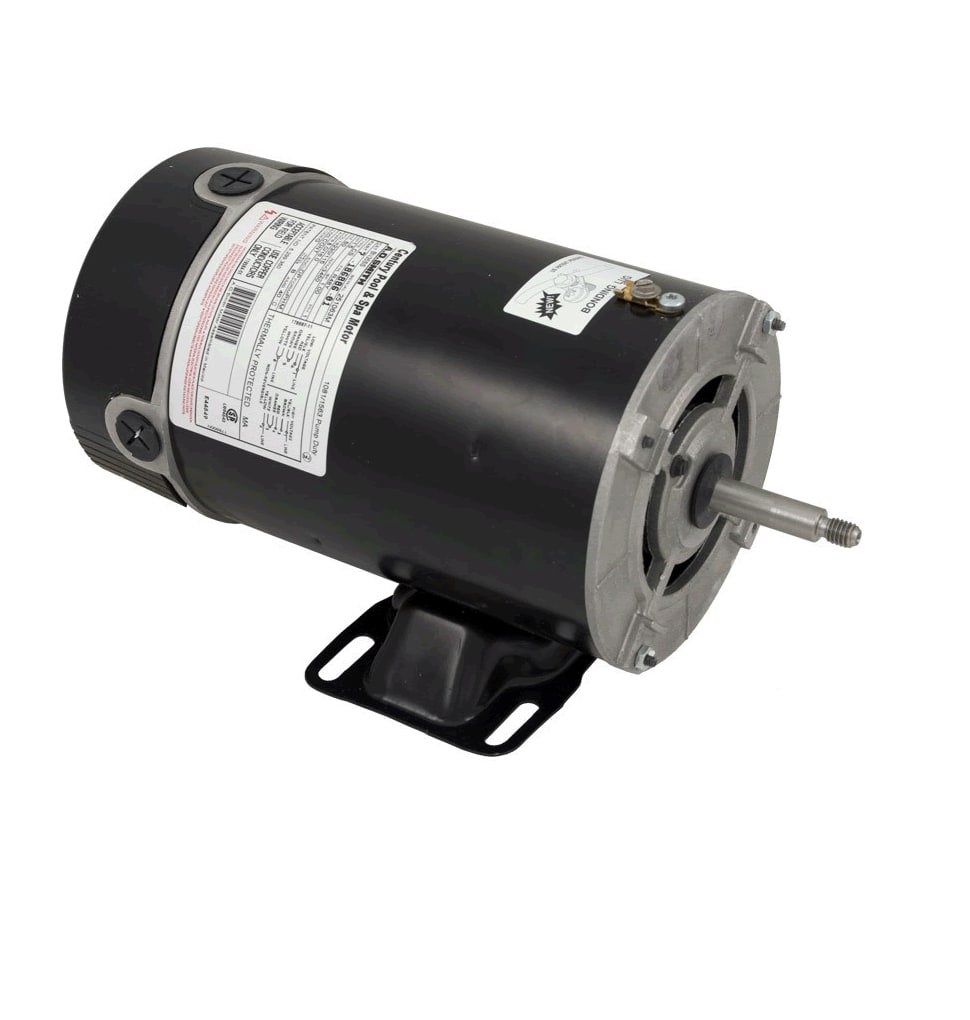

Replacement AO SMith Motor. 2 Speed, 1HP 115v Specs: 48Y 115V 1 HP 2 SPEED 11/2.9A 1750/3450 RPM 1.0 SF 48 FRAME 120

<p>Executive Wear Ring 4-5 HP.</p>

Replacement Motor 2HP 2 Speed 230V 48Y Frame Thru Bolt Motor 10.5/2.6 AMPS 1750/3450 RPM 1.0 SF 48 FRAME 240V

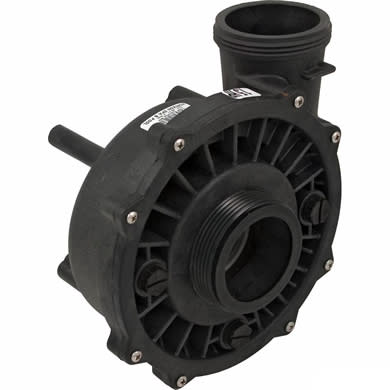

<p>Waterway 2" x 2" Executive Wet End - 4.5HP, Fits 48 Frame Motors. Thread size 3" (outside dimension) 2" Inlet x 2" Outlet</p>

Replacement Thru Bolt Pump Motor 2HP 2 Speed, 230v

2" Executive Wet End - 3HP, 48 Fr.

<p>Executive 2 HP Impeller</p>
