Waterway Pump Parts

<p>Waterway 6" Pump Trap Assembly 2" x 2" Plumbing Ports, with New Style Lid.<br></p><p>The Waterway 6" Pump Trap Assembly with 2" x 2" Plumbing Ports is a valuable component for any pool or spa system. Its efficient debris filtration, easy installation, and durable construction make it an essential part of maintaining the performance and longevity of your equipment.<br></p><p>Note: The manufacturer has changed the color of the replacement trap temporarily. You may receive a gray color.</p>

<p>6" Pump Trap Assembly, 1.5FPT/1.5 Buttress Thread X 2"Union Flange. See key "C" on the Waterway Replacement Pump Strainer Trap Parts Page for dimensions. Note: These are now supplied with the NEW lid design. Its a 2 piece lid that is much stronger. It is completely compatible with old style designs.</p>

<p>Workhorse/Hi-Flow, 6 Inch trap basket body, 1.5 Inch FPT x 2 Inch Union Flange - 319-2170 Pump side flange outside diameter: 2-7/8" Plumbing side outside diameter: 2-3/8"</p>

Waterway Pump Shaft Slinger 313-1400. This slinger fits over the shaft of the motor and acts as a last line of defense to save a motor from a leaky mechanical seal.

<p>6" Trap Assembly with Self-Locking Lid. Includes 415-4050 Waterway Clamp Nut on pump side. Connections are Standard 1-1/2" PVC Plumbing size. The actual size of the nut that screws on to the pump is close to 2-3/8" inside diameter.</p> <p></p> <p>Note: The assembly no longer comes with the old lid. It will come with the New style lid. (319-4100)</p>

<p>Waterway Replacement Pump Lid O-Ring For 6" Trap Cover. OEM 805-0436 <strong>Dimensions:</strong> INSIDE DIAMETER: 5-7/8" OUTSIDE DIAMETER: 6-3/8" CORD THICKNESS: 1/4"</p>

<p>Impeller Sleeve - Wear Ring</p>

<p>Pump Union Assembly, 2" Nut x 2" SLIP. Connects to a 2" Threaded Pump on one end and 2" slip PVC on the other. See reducer bushing below if you need 1-1/2" slip on PVC side.</p>

<p>Old Style Waterway Lid 6" Trap, Easy Lock 319-3260. This lid has been replaced with Waterway 319-4100 <a href="/waterway-319-4100-new-style-pump-lid.html">See this link for the new style lid.</a></p>

Replacement 3/4 horsepower impeller designed to fit Waterway Hi Flo pool pumps. This is a new, OEM Waterway part, number: 310-3990.

<p>3/8" Quarter Slot Drain Plug Black</p>

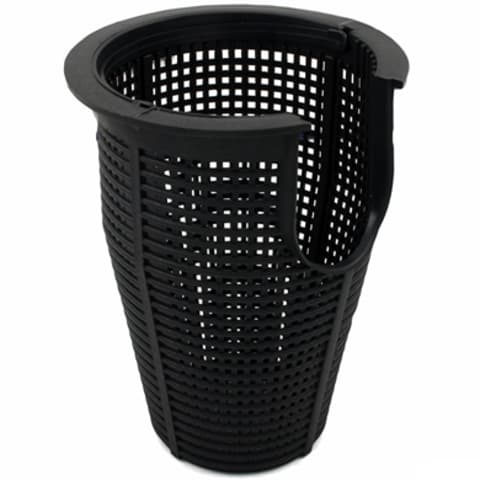

<p>Waterway 319-3230 Hi-Flo Pump Filter Basket. For 6" Pump Traps. OEM Basket with Handle.</p>

<p><strong>New Style Waterway Champion Pump Housing - without brass inserts</strong></p><p><strong>NOTE :&nbsp; This is the newest version </strong>of the Champion Housing. Waterway has kept the same part number, but drastically changed the design.&nbsp;</p><p><strong>The old housing</strong> had brass inserts, which accepted a shorter bolt.</p><p><strong>The new housing</strong> has holes where the inserts would have been, and uses a longer bolt. </p><p></p><p></p><p><strong>Please see Related Products below</strong> for the bolt, nut, and washer.</p>

<p>Waterway 805-0238 Diffuser O-Ring For Champion 56/SVL56/Power Defender/Econo-Flo/SMF</p>

<p>Waterway Replacement PVC Pump Half Union Assembly 1-1/2"</p>

Executive Volute O-Ring

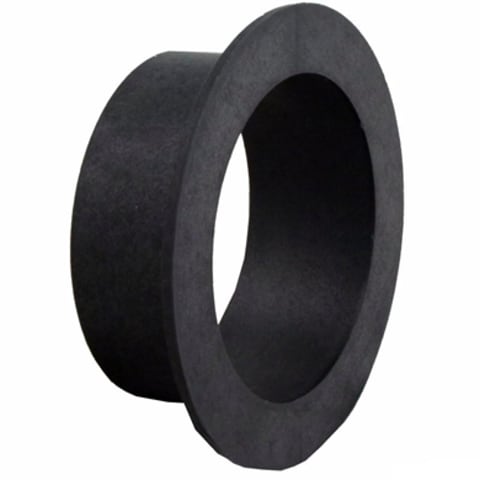

Executive Wear Ring 1-3 HP

<p>6" Trap Body, 1.5" X 1.5"</p>

<p>waterway 805-0111 Drain Plug O-Ring</p>

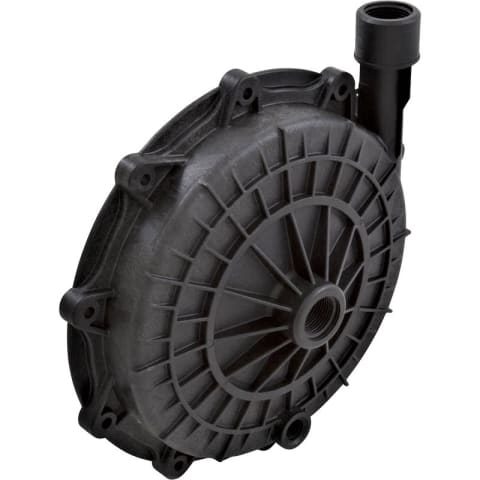

<p>Waterway Replacement Booster Pump Volute Face Plate Housing 315-8300B</p>
