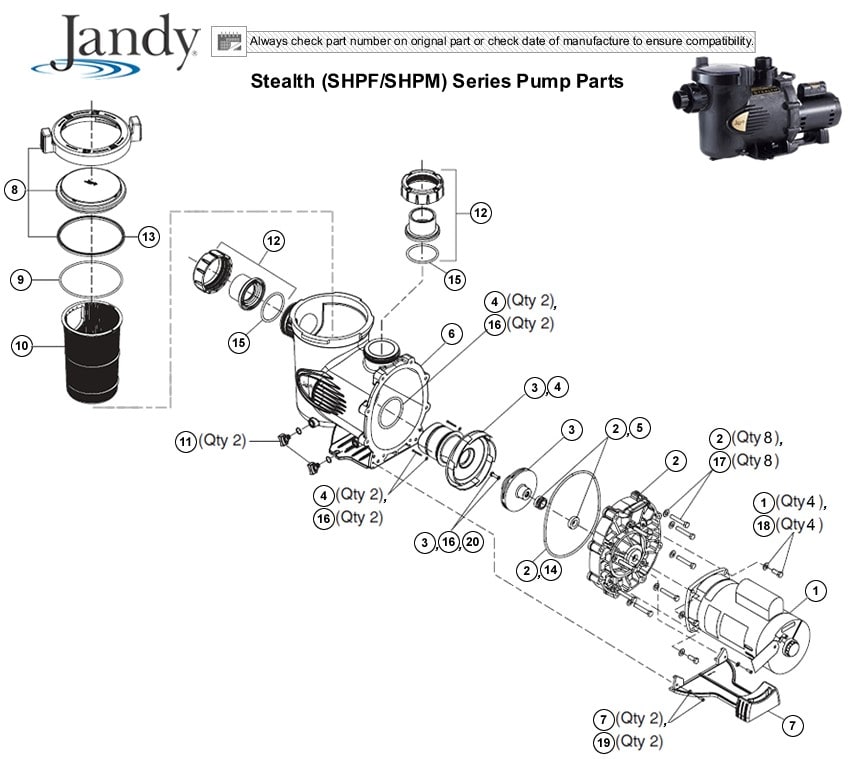

Jandy Stealth (SHPF/SHPM) Series Pump Parts

Jandy Stealth (SHPF/SHPM) Series Pump Parts

1
Motor, Full-Rated, Two-Speed, 1.5 HP 1.47 SF 230v (B2983)
Century #B2983
Motor, Full-Rated, Two-Speed, 1.5 HP 1.47 SF 230v (B2983)
$587.99605
Add to Cart
1
VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame
Century #EVQ165
VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame
$638.99768.5
Add to Cart
1
Square Flange Pump Motor 0.5 Hp
Century #B2846
Square Flange Pump Motor 0.5 Hp
$284.99
Add to Cart
1
Square Flange Full-Rated Pool and Spa Pump Motor; 2 HP
Century #B2748
Square Flange Full-Rated Pool and Spa Pump Motor; 2 HP
$540.99
Add to Cart
1
Motor, Full Rated, 1 HP, 115/230v
Century #B2848
Motor, Full Rated, 1 HP, 115/230v
$340.99
Out of Stock
1
2.5Hp 230V 56Fr Odp Sqfl Psc Switchless Motor
Century #B2840V1
2.5Hp 230V 56Fr Odp Sqfl Psc Switchless Motor
$550.99
Add to Cart
1
1.5Hp 230V 56Y Square Flange Motor
Century #B2849
1.5Hp 230V 56Y Square Flange Motor
$460.99
Add to Cart
1
Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V UR
Century #B2855
Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V UR
$434.99478.99
Add to Cart
1
1.0 HP Square Flange Pool Pump Motor, 1 PH, 60 HZ, 230/115 V, 3450RPM, 56Y Frame
Century #B2853V1
1.0 HP Square Flange Pool Pump Motor, 1 PH, 60 HZ, 230/115 V, 3450RPM, 56Y Frame
$334.99
Add to Cart
1
1-1/2 HP, 3450 RPM, 8.0/16.0 Amps, 1.1 Service Factor, 56Y Frame, PSC, ODP Enclosure, Square Flange Pool Pump Motor
Century #B2854V1
1-1/2 HP, 3450 RPM, 8.0/16.0 Amps, 1.1 Service Factor, 56Y Frame, PSC, ODP Enclosure, Square Flange Pool Pump Motor
$299.00399.99
Add to Cart
1
Square Flange Full Rated 2HP 2 Speed, 230V
Century #B985
Square Flange Full Rated 2HP 2 Speed, 230V
$687.99931.5
Add to Cart
1
Square Flange Full Rated 2HP 3 Phase 208/230/460V
Century #H637
Square Flange Full Rated 2HP 3 Phase 208/230/460V
$620.99672
Add to Cart
1
Square Flange Full Rated 1.5HP 3 Phase 208/230/460
Century #H636
Square Flange Full Rated 1.5HP 3 Phase 208/230/460
$543.99616
Add to Cart
1
Square Flange Full Rated 3HP 3 Phase 230/460V
Century #Q3302V1
Square Flange Full Rated 3HP 3 Phase 230/460V
$549.99
Out of Stock
1
Energy Efficient Full Rated 5HP Square Flange Motor
Century #B1000
Energy Efficient Full Rated 5HP Square Flange Motor
$980.991019
Add to Cart
1
Energy Efficient 3 HP Square Flange Motor 208/230v
Century #B2844
Energy Efficient 3 HP Square Flange Motor 208/230v
$633.99694.5
Add to Cart
1
Square Flange FR .75HP 115/230V B2847
Century #B2847V1
Square Flange FR .75HP 115/230V B2847
$322.99381.5
Add to Cart
1
VGreen Evo Variable Speed 2.25 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame
Century #EVQ225
VGreen Evo Variable Speed 2.25 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame
$672.99699.9
Add to Cart
2
Back Plate Kit
Jandy #R0445200
Back Plate Kit
$181.99
Add to Cart
3
Impeller & Diffuser Kit, .5Hp Full / .75 Uprated
Jandy #R0445301
Impeller & Diffuser Kit, .5Hp Full / .75 Uprated
$59.99171.5
Out of Stock
3
Impeller & Diffuser Kit, .75HP Full / 1HP Uprated
Jandy #R0445302
Impeller & Diffuser Kit, .75HP Full / 1HP Uprated
$87.99106.5
Out of Stock
3
Impeller & Diffuser Kit, 1Hp Full / 1.5 Uprated
Jandy #R0445303
Impeller & Diffuser Kit, 1Hp Full / 1.5 Uprated
$47.9965
Out of Stock
3
Impeller & Diffuser Kit, 1.5Hp Full / 2HP Uprated, SHP- / PHP- Stealth Models
Jandy #R0445304
Impeller & Diffuser Kit, 1.5Hp Full / 2HP Uprated, SHP- / PHP- Stealth Models
$51.99107.8
Out of Stock
3
Impeller & Diffuser Kit, 3HP Full Rated
Jandy #R0445306
Impeller & Diffuser Kit, 3HP Full Rated
$60.9970.5
Out of Stock
6
Pump Body SHPF/SHPM
Jandy #R0445601
Pump Body SHPF/SHPM
$393.99418.42
Add to Cart
7
Motor Mounting Foot Assembly, Screws Incl (2)
Jandy #R0445700
Motor Mounting Foot Assembly, Screws Incl (2)
$70.9980.5
Out of Stock
13
Seal, Lid
Jandy #R0446200
Seal, Lid
$29.99
Add to Cart
14
O-Ring, Backplate
Jandy #R0446300
O-Ring, Backplate
$17.99
Add to Cart
17
Backplate Hardware Kit
Jandy #R0446600
Backplate Hardware Kit
$73.9997.5
Out of Stock
18
Motor Hardware
Jandy #R0446700
Motor Hardware
$37.9952.5
Add to Cart
19
Screws, Motor Mounting Foot (Set of 2)
Jandy #R0446800
Screws, Motor Mounting Foot (Set of 2)
$23.9937
Out of Stock
20
Impeller Screw with O-Ring
Jandy #R0515400
Impeller Screw with O-Ring
$14.9922.5
Add to Cart
